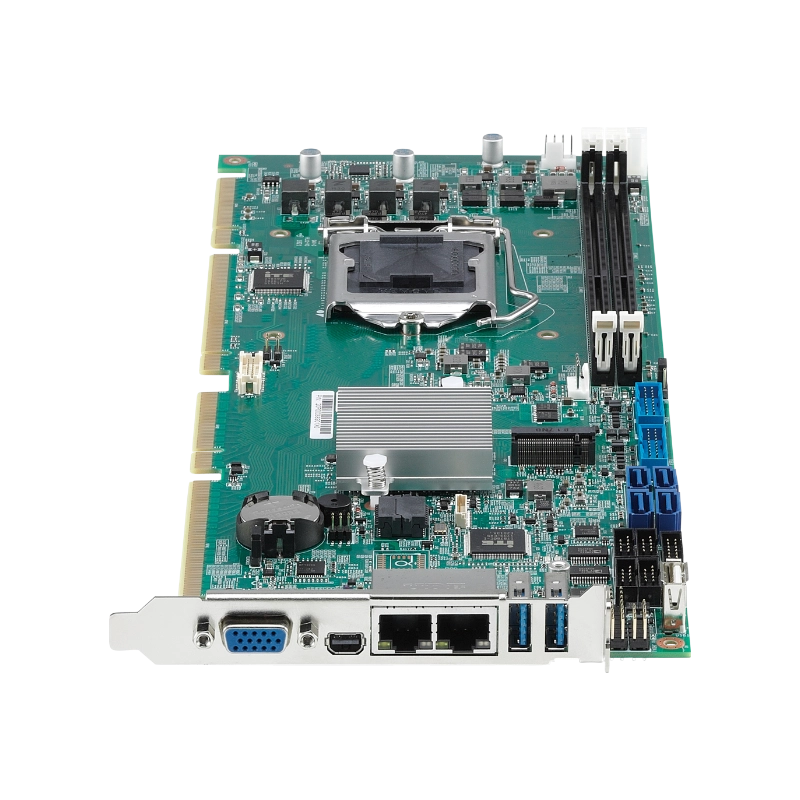

NexAIoT PICMG SBC | PEAK889VL2-Q

PICMG 1.3 Full-Size SBC

Merchandise number：10P00088901X0

Discounted price:US$
Sale US$
MSRP US$
Use bonus pointspt.

Description：

High-Performance Industrial SBC:
Powered by Intel® Q370 chipset, supports 8th Gen Intel® Core™ i7/i5/i3 processors
Triple Display Support:
Features VGA, Mini DP, and DP outputs for multi-monitor setups.
Fast & Reliable Connectivity:
Equipped with dual Gigabit LAN, 6 x USB 3.0, and 4 x SATA 3.0.
Expandable & Flexible Storage:
Supports M.2 PCIe NVMe SSDs and dual DDR4 DIMM slots.
Rugged & Industrial-Grade Design:
PICMG 1.3 full-size SBC with durable components.

Download file

Spec.

CPU Support
- Intel® 8th generation Core™ i7/i5/i3, TDP 65W
Platform Control Hub
- Intel® Q370 express chipset PCH
- Intel® H310 express chipset PCH
BIOS
- AMI system BIOS
- 16 Mbit SPI depended on AMT function
Display
- VGA connector
- Mini DP connector
- DP connector (optional)
System
- 2 x Dual channel DDR4 2666 support up to 32GB, non-ECC
- 2 x LAN Intel® I219-LM & I211 PCIe GbE LAN contorller
Q370 PCH
- 2 x USB 3.1 Gen1/2, 4 x USB 3.1 Gen1 and 5-port USB 2.0 2-Port through I/O bracket (USB 3.1 GEN1/2+redriver)
- 4-Port through 2.0mm box header 2 x 10 (USB 3.1 Gen1)
- 1-Port Type A (USB 2.0)
- 4-Port through backplane (USB 2.0)
- Storage device 4 x SATA III 6.0Gb/s
- 1 x M.2 2280 M key with 4 x SATA III & PCIez (NVMe Gen3), support Intel® RST
H310 PCH
- 4 x USB 3.1 Gen1 2-Port through I/O bracket (USB 3.1 Gen1)
- 2-Port through 2.0mm BOX header 2 x 10 (USB 3.1 Gen1)
- Storage device 2 x SATA III 6.0Gb/s
4 x Serial Ports
- 1 x RS232/485/422 and +5V/RI/+12V select by COM 2
- 3 x RS232 by COM1, 3, 4
- 1 x LPT
- 1 x PS/2 JST connector
- WDT 1 ~ 255 steps by software program
- 1 x HD Audio header (compatible with NEXCOM audio daughter board PN: 10E000HDA00X0 EBK-HAD)
- 1 x Front panel connector
- 1 x ATX 4-pin power connector
I/O Interface
- 1 x PCI express x16 (PEG Gen3)
- 1 x PCI express x4 Gen 3 (Q370); (Gen 2 only for H310)
- 4 x PCI to backplane
Rear I/O
- 2 x USB 3.1 ports
- 2 x GbE LAN ports
- 1 x VGA connector
- 1 x Mini DP connector
Power Requirements
- Power source from backplane through golden finger and AUX
- +12V
- Support ATX/AT function by jumper setting
- BIOS default is (ATX MODE)
Mechanical & Environment
- Operating temperature: 0°C ~ 60°C
- Storage temperature: -20 ~ 85°C
- Relative humidity: operating 10% ~ 90%, non-condensing
Dimension
- 338.58 mm x 126.39 mm, 8 layers (single side)
Operating System
- Windows® 10 64-bit
Certificate
- CE/FCC Class A compliant
- Own Brand, Own Factory Production, Global Fast Shipping
- Ships within 2 business days after ordering.
- 2-year global warranty.
- 30-day return policy.
- Free shipping.
- For any usage issues after purchase, please feel free to contact us anytime.
NEXCOM PEAK889VL2-Q Datasheet
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Access NEXCOM Industrial Solutions on Our Official Online Channels:

Specifications
CPU Support

Intel® 8th generation Core™ i7/i5/i3, TDP 65W
Platform Control Hub

Intel® Q370 express chipset PCH

Intel® H310 express chipset PCH
BIOS

AMI system BIOS

16 Mbit SPI depended on AMT function
Display

VGA connector

Mini DP connector

DP connector (optional)
System

2 x Dual channel DDR4 2666 support up to 32GB, non-ECC

2 x LAN Intel® I219-LM & I211 PCIe GbE LAN contorller
Q370 PCH

2 x USB 3.1 Gen1/2, 4 x USB 3.1 Gen1 and 5-port USB 2.0 2-Port through I/O bracket (USB 3.1 GEN1/2+redriver)

4-Port through 2.0mm box header 2 x 10 (USB 3.1 Gen1)

1-Port Type A (USB 2.0)

4-Port through backplane (USB 2.0)

Storage device 4 x SATA III 6.0Gb/s

1 x M.2 2280 M key with 4 x SATA III & PCIez (NVMe Gen3), support Intel® RST
H310 PCH

4 x USB 3.1 Gen1 2-Port through I/O bracket (USB 3.1 Gen1)

2-Port through 2.0mm BOX header 2 x 10 (USB 3.1 Gen1)

Storage device 2 x SATA III 6.0Gb/s
4 x Serial Ports

1 x RS232/485/422 and +5V/RI/+12V select by COM 2

3 x RS232 by COM1, 3, 4

1 x LPT

1 x PS/2 JST connector

WDT 1 ~ 255 steps by software program

1 x HD Audio header (compatible with NEXCOM audio daughter board PN: 10E000HDA00X0 EBK-HAD)

1 x Front panel connector

1 x ATX 4-pin power connector
I/O Interface

1 x PCI express x16 (PEG Gen3)

1 x PCI express x4 Gen 3 (Q370); (Gen 2 only for H310)

4 x PCI to backplane
Rear I/O

2 x USB 3.1 ports

2 x GbE LAN ports

1 x VGA connector

1 x Mini DP connector
Power Requirements

Power source from backplane through golden finger and AUX

+12V

Support ATX/AT function by jumper setting

BIOS default is (ATX MODE)
Mechanical & Environment

Operating temperature: 0°C ~ 60°C

Storage temperature: -20 ~ 85°C

Relative humidity: operating 10% ~ 90%, non-condensing
Dimension

338.58 mm x 126.39 mm, 8 layers (single side)
Operating System

Windows® 10 64-bit
Certificate

CE/FCC Class A compliant
After-sales service
- Own Brand, Own Factory Production, Global Fast Shipping
- Ships within 2 business days after ordering.
- 2-year global warranty.
- 30-day return policy.
- Free shipping.
- For any usage issues after purchase, please feel free to contact us anytime.
Download

NEXCOM PEAK889VL2-Q Datasheet
Contact Us
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Online Shopping

Access NEXCOM Industrial Solutions on Our Official Online Channels:

NEXCOM PEAK 889VL2-Q Single Board Computer

Powering the Future of Industrial Computing

The PEAK 889VL2-Q is an advanced PICMG 1.3 full-size single-board computer that redefines industrial computing. Featuring Intel® 8th Gen Core™ processors, robust I/O options, and support for triple display, it delivers unparalleled performance for edge computing, industrial automation, and digital signage. With a compact design, impressive expandability, and built-in reliability, the PEAK 889VL2-Q is the perfect solution for businesses looking to future-proof their operations and stay ahead in today’s fast-paced digital world.

Core Features

Powerful Intel® 8th Gen Processors:
Supports Intel® Core™ i7/i5/i3 processors with a 65W TDP, offering high performance and energy efficiency for demanding industrial applications.
Dual and Triple Display Support:
Provides support for multiple displays with VGA, Mini DisplayPort, and DisplayPort connectors. Capable of supporting up to 3 displays simultaneously with the Q370 chipset.
High-Speed Storage Options:
Equipped with 4 x SATA III 6Gb/s ports and an M.2 2280 PCIe 3.0 slot for high-speed storage. Supports RAID configurations (0, 1, 5, 10) for data protection and optimized performance.
Enhanced Expandability:
Offers 11 USB ports (including USB 3.1 Gen 2) and multiple PCIe slots for additional expansion cards, ideal for customizing the board to specific use cases.
Reliability and Flexibility:
PICMG 1.3 compliant for industrial applications, with robust connectivity options like 2 x GbE LAN, 4 x COM ports, and support for TPM (Trusted Platform Module) for enhanced security.

Applications

Industrial Automation:
Acts as a central hub for controlling and monitoring machines and processes in factories, ensuring seamless operation and efficiency.
Edge Computing:
Ideal for processing data at the edge of the network, reducing latency and enabling real-time analytics for IoT devices and systems.
Digital Signage:
Powers multi-display systems for advertising, interactive kiosks, and digital content management in commercial and retail environments.
Smart Manufacturing:
Supports the integration of smart technologies to optimize production processes, monitor equipment, and improve operational performance.
Surveillance & Security Systems:
Used in video surveillance and security applications to handle multiple camera feeds, video processing, and security analytics in real-time.

Unleashing Industrial Power with the PEAK 889VL2-Q

The PEAK 889VL2-Q is a high-performance PICMG 1.3 full-size single-board computer designed for demanding industrial applications. Powered by Intel® 8th Gen processors, it supports multiple displays, high-speed storage, and extensive I/O connectivity, making it perfect for edge computing, industrial automation, digital signage, and more. With its robust expandability and reliability, the PEAK 889VL2-Q offers a future-proof solution for smart manufacturing, surveillance systems, and mission-critical applications. Unleash the power of versatility and performance with the PEAK 889VL2-Q.
