NEXCOM Fanless Embedded Computer | NISE 105-E3845

NEXCOM Fanless Embedded Computer | NISE 105-E3845

Intel Atom® Processor E3845 Quad Core Fanless System

Merchandise number：10J00010503X0

Discounted price:US$
Sale US$
MSRP US$
Use bonus pointspt.

Description：

Fanless and compact design:
Increases durability by preventing dust buildup and mechanical failure.
Dual independent display (DVI-I & HDMI):
Supports flexible visual output for monitoring systems.
Dual LAN with WoL, Teaming, PXE:
Ensures network redundancy and remote management.
Rich connectivity:
Ensures network redundancy and remote management.
Multiple USB & COM ports:
Connects industrial devices like sensors and scanners.
Optional Wi-Fi, 3.5G, 4G LTE
Enables wireless and remote communication.
Wide temperature range (-10°C to 60°C)
Operates reliably in harsh environments.
Rugged, cable-free design
Prevents loose connections from vibrations.
External RTC battery holder
Allows easy battery replacement.
9-30V DC power input
Supports flexible industrial power sources.
Supports ACP ThinManager & Indusoft
Compatible with factory automation software.
CFast, HDD, SSD storage options
Provides flexible data storage solutions.
Optimized for M2M & industrial automation
Ideal for smart factories and IoT applications.

Download file

Spec.

CPU Support
- Onboard Intel® Atom™ processor E3845 Quad Core, 1.91GHz
Main Memory
- 1 x DDR3L 1066/1333 SO-DIMM Socket, support up to 8GB
Display Option
- Dual Independent Display
  - HDMI and DVI-D
  - HDMI and VGA (via DVI-I to VGA converter)

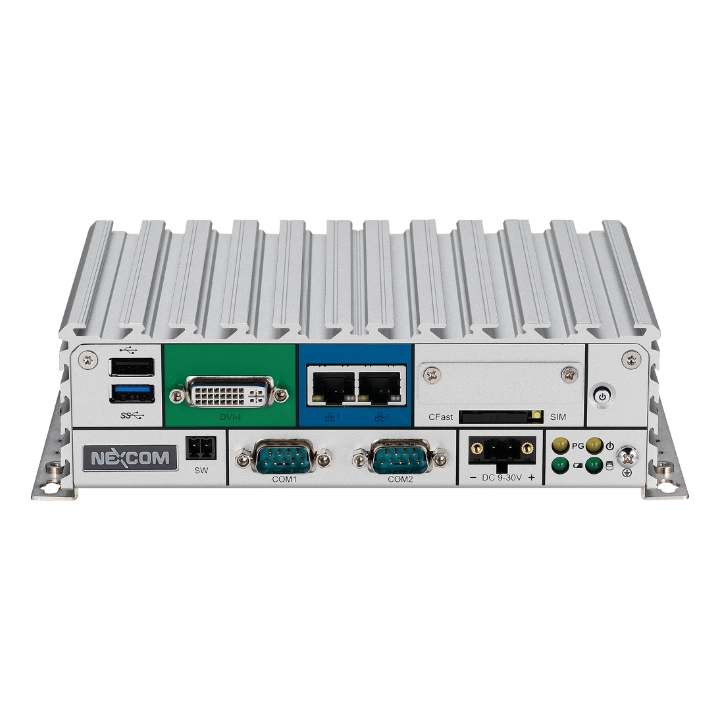

I/O Interface-Front
- ATX power on/off switch
- 1 x Power Status/1 x HDD Access/1 x Battery Low/1 x Programing LEDs
- 1 x External CFast socket
- 1 x SIM Card holder
- 2 x Intel® I210-IT GbE LAN Ports, support Wake on LAN, Teaming and PXE
- 1 x DVI-I Display Output
- 1 x USB3.0 (900mA per each)
- 1 x USB2.0 (500mA per each)
- 2 x DB9 for COM1 & COM2, both support RS232/422/485 with auto flow control
  - Jumper-free setting on RS232/422/485
  - Support 5V/12V/Ring function by jumper setting, Ring as the default (COM2 Only)
- 1 x Remote Power ON/OFF Switch
- 1 x 2-pin DC input, support +9 to 30VDC input (nominal DC input: 24V)

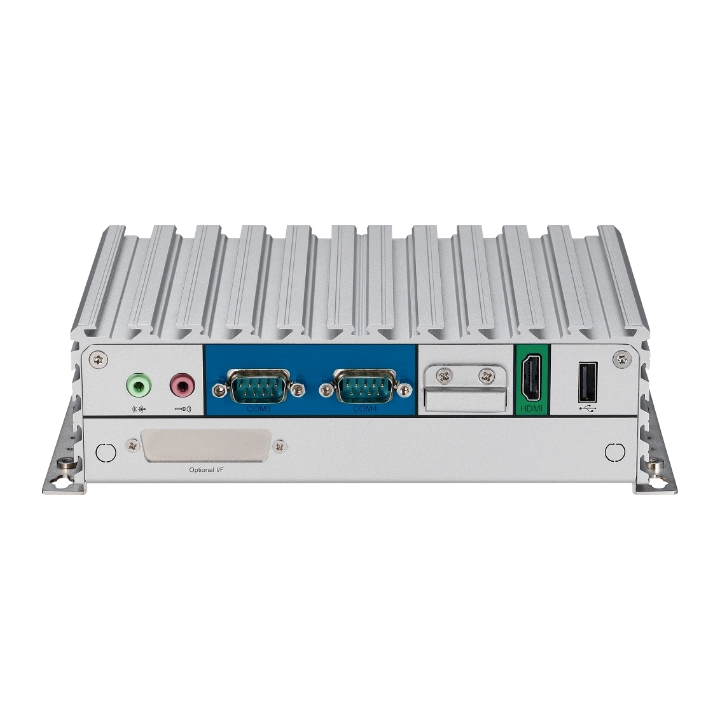

I/O Interface - Rear
- 1 x USB2.0
- 1 x HDMI
- 1 x RTC Battery
- 2 x DB9 for COM3 & COM4, both support RS232/422/485 with auto flow control
  - Jumper-free setting on RS232/422/485
- 1 x Mic-in & 1 x Line-out
- 2 x Antenna Holes for optional Wi-Fi/3.5G antenna
- 1 x Optional I/F for optional miniPCIe Wi-Fi/3.5G modules
I/O Interface - Internal
- 4 x GPI and 4 GPO (5V, TTL Type)
Storage Device
- 1 x CFast (SATA2.0)
- 1 x 2.5" HDD (SATA2.0)
Expansion Slot
- 1 x Mini-PCIe socket for optional Wi-Fi/3.5G modules
Power Requirement
- Power input: +9VDC to +30VDC (nominal DC input: 24V)
- 1 x optional 24V, 60W power adapter
Support OS
- Windows 8, 32-bit/64-bit
- Windows Embedded Standard 8, 32-bit/64-bit
- Windows 7, 32-bit/64-bit
- Windows Embedded Standard 7, 32-bit/64-bit
- Windows Embedded Compact 7, 32-bit
- Windows 10 IoT Enterprise, 64-bit
- Linux Kernel version 3.8.0
Dimensions
- 185mm (W) x 131mm (D) x 54mm (H) without wall-mount bracket
Construction
- Aluminum and Metal Chassis with fanless design
Environment
- Operating Temperature:
- Ambient with air flow: -10°C to 60°C with industrial grade device
  (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
- Storage Temperature: -30°C to 85°C
- Relative Humidity: 10% to 95% (non-Condensing)
- Shock Protection:
  - HDD: 20G, half sine, 11ms, IEC60068-2-27
  - CFast: 50G, half sine, 11ms, IEC60068-2-27
- Vibration Protection w/HDD Condition:
  - Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
  - Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6
- Vibration Protection w/CFast & SSD Condition:
  - Random: 2Grms @ 5~500 Hz, IEC60068-2-64
  - Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
Certifications
- CE
- FCC Class A
- UL/ cUL
- Own Brand, Own Factory Production, Global Fast Shipping
- Ships within 2 business days after ordering.
- 2-year global warranty.
- 30-day return policy.
- Free shipping.
- For any usage issues after purchase, please feel free to contact us anytime.
NEXCOM NISE 105-E3845-Datasheet
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw

Specifications
CPU Support

Onboard Intel® Atom™ processor E3845 Quad Core, 1.91GHz
Main Memory

1 x DDR3L 1066/1333 SO-DIMM Socket, support up to 8GB
Display Option

Dual Independent Display
- HDMI and DVI-D
- HDMI and VGA (via DVI-I to VGA converter)
I/O Interface-Front

ATX power on/off switch

1 x Power Status/1 x HDD Access/1 x Battery Low/1 x Programing LEDs

1 x External CFast socket

1 x SIM Card holder

2 x Intel® I210-IT GbE LAN Ports, support Wake on LAN, Teaming and PXE

1 x DVI-I Display Output

1 x USB3.0 (900mA per each)

1 x USB2.0 (500mA per each)

2 x DB9 for COM1 & COM2, both support RS232/422/485 with auto flow control
- Jumper-free setting on RS232/422/485
- Support 5V/12V/Ring function by jumper setting, Ring as the default (COM2 Only)

1 x Remote Power ON/OFF Switch

1 x 2-pin DC input, support +9 to 30VDC input (nominal DC input: 24V)
I/O Interface - Rear

1 x USB2.0

1 x HDMI

1 x RTC Battery

2 x DB9 for COM3 & COM4, both support RS232/422/485 with auto flow control
- Jumper-free setting on RS232/422/485

1 x Mic-in & 1 x Line-out

2 x Antenna Holes for optional Wi-Fi/3.5G antenna

1 x Optional I/F for optional miniPCIe Wi-Fi/3.5G modules
I/O Interface - Internal

4 x GPI and 4 GPO (5V, TTL Type)
Storage Device

1 x CFast (SATA2.0)

1 x 2.5" HDD (SATA2.0)
Expansion Slot

1 x Mini-PCIe socket for optional Wi-Fi/3.5G modules
Power Requirement

Power input: +9VDC to +30VDC (nominal DC input: 24V)

1 x optional 24V, 60W power adapter
Support OS

Windows 8, 32-bit/64-bit

Windows Embedded Standard 8, 32-bit/64-bit

Windows 7, 32-bit/64-bit

Windows Embedded Standard 7, 32-bit/64-bit

Windows Embedded Compact 7, 32-bit

Windows 10 IoT Enterprise, 64-bit

Linux Kernel version 3.8.0
Dimensions

185mm (W) x 131mm (D) x 54mm (H) without wall-mount bracket
Construction

Aluminum and Metal Chassis with fanless design
Environment

Operating Temperature:

Ambient with air flow: -10°C to 60°C with industrial grade device
(According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage Temperature: -30°C to 85°C

Relative Humidity: 10% to 95% (non-Condensing)

Shock Protection:
- HDD: 20G, half sine, 11ms, IEC60068-2-27
- CFast: 50G, half sine, 11ms, IEC60068-2-27

Vibration Protection w/HDD Condition:
- Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6

Vibration Protection w/CFast & SSD Condition:
- Random: 2Grms @ 5~500 Hz, IEC60068-2-64
- Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
Certifications

CE

FCC Class A

UL/ cUL
After-sales service
- Own Brand, Own Factory Production, Global Fast Shipping
- Ships within 2 business days after ordering.
- 2-year global warranty.
- 30-day return policy.
- Free shipping.
- For any usage issues after purchase, please feel free to contact us anytime.
Download

NEXCOM NISE 105-E3845-Datasheet
Contact Us
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw

NEXCOM NISE 105-E3845

High-Performance, Fanless Industrial Computer for Automation & M2M Applications

Powered by the latest generation of Intel Atom® processor E3845 (formerly codenamed "Bay Trail-I"), the NISE 105-E3845 provides outstanding performance not only on computing but also on graphics, and it presents a brand new opportunity for both intelligent and industrial computing solutions. NISE 105-E3845 support ACP ThinManager that offers management solutions for the modern factory by simplifying management and also support Indusoft for HMI and SCADA. Up to 8G DDR3L memory, NISE 105-E3845 have several options on storage devices like CFast, HDD and SSD. In addition to no cable connection on the NISE 105-E3845, it brings NISE 105-E3845 the sustainability to work in harsh environment both with temperature and vibration concern. The NISE 105-E3845 has high integration ability with optional mini-PCIe module and 4 x COM ports, which makes it a real intelligent system for various applications such as factory automation applications, network applications (with optional GbE LAN, Wi-Fi, 3.5G/4G LTE module) and communication applications (with optional GPIO, RS232/422/485). NISE 105-E3845 is definitely the top choice for M2M intelligent system and factory automation platforms.

Key Features

Intel Atom® E3845 Quad-Core Processor
Delivers strong computing and graphics performance.
Fanless, Cable-Free Design
Ensures durability in harsh industrial environments.
Dual Independent Display
Supports DVI-I and HDMI for flexible visualization.
Multiple Connectivity Options
Includes dual LAN, USB, and four COM ports.
Wireless Expansion
Supports optional Wi-Fi, 3.5G, and 4G LTE modules.
Wide Operating Temperature (-10°C to 60°C)
Reliable performance in extreme conditions.
Flexible Storage Options
Compatible with CFast, HDD, and SSD storage.
Industrial Software Support
Works with ACP ThinManager and Indusoft for automation.
9-30V DC Wide Power Input
Adapts to various industrial power sources.
Optimized for Factory Automation & M2M
Ideal for industrial and network applications.

Application of NISE 105-E3845

Factory Automation:
Supports fieldbus protocols and industrial software (ACP ThinManager, InduSoft) for efficient factory control and monitoring.

Process Control:
Ideal for process automation in industries like petrochemical, steel, and wastewater treatment.

Smart Factory Integration:
Enables M2M communication, remote monitoring, and data collection for an all-IP based factory environment.

Harsh Environment Usage:
Fanless design, wide operating temperature range, and shock/vibration resistance make it perfect for tough industrial conditions.

Energy & Transportation:
Suitable for energy management systems, transportation control, and industrial IoT applications.

Flexible Expansion:
Offers multiple COM ports and mini-PCIe expansion for easy integration with various industrial peripherals.

Why Choose NISE 105-E3845 ?

The NISE 105-E3845 delivers powerful performance in a compact, fanless design, making it perfect for demanding industrial environments. With its Intel Atom® E3845 processor, low power consumption, and wide temperature range, it ensures reliability in harsh conditions. Offering seamless integration with fieldbus protocols and industrial software, it’s ideal for factory automation, IoT, and process control. Choose NISE 105-E3845 for a high-performance, energy-efficient solution that keeps your operations running smoothly.
