Industrial Motherboard

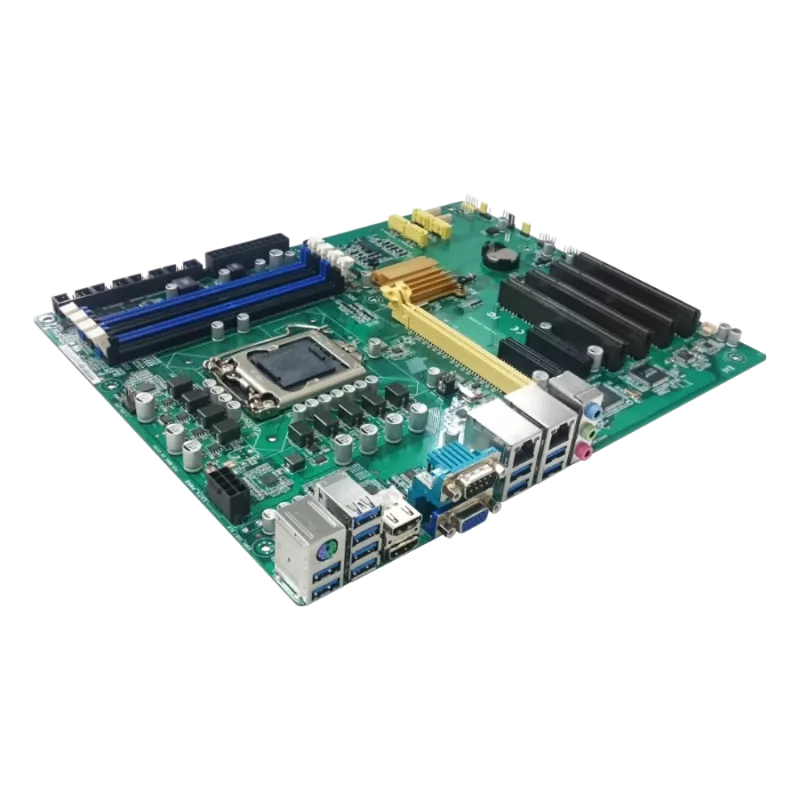

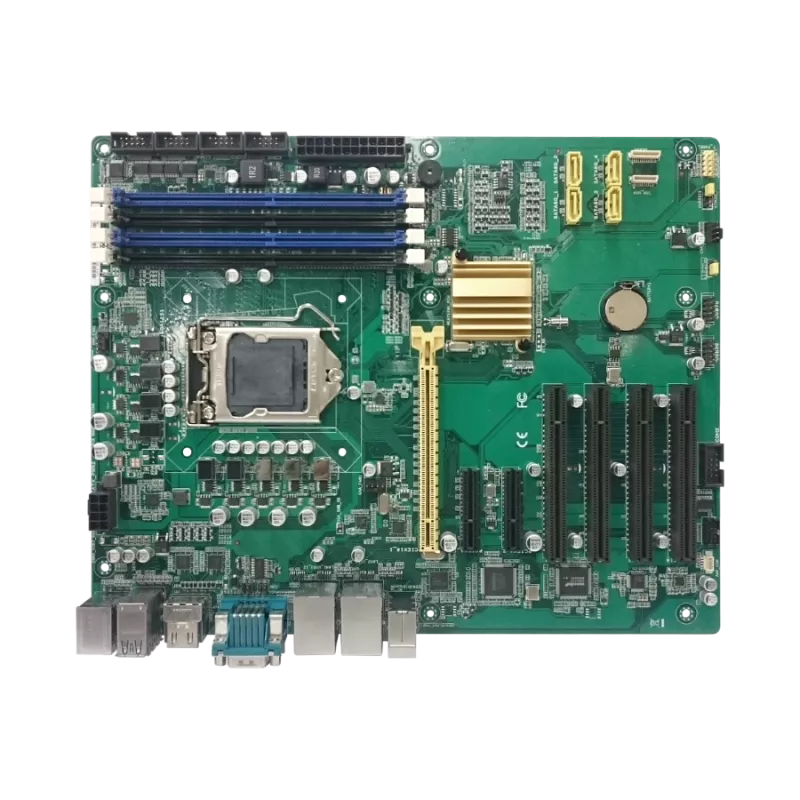

NexCOBOT ATX Motherboard | NEX912P

7th/6th Generation (Kaby Lake S/ Skylake S) Intel® Core™ Intel® i7/i5/i3/Pentium®/Celeron® LGA1151 Socket Processor

Merchandise number： P000003189X00

Discounted price:US$
Sale US$
MSRP US$
Use bonus pointspt.

Description：

Intel® 7th/6th Generation Intel® Core™ LGA1151 Socket Processor, PCH Q170
4 x U DIMM DDR4 with ECC or non-ECC SO DIMM 2133/1867 MHz up to 64GB
Support triple display 2 x HDMI, VGA
2 x Intel® GbE LAN, 10 x USB 3.2 (Gen1), 4 x USB 2.0, 5 x RS232, 1 x RS232/485/422, 4 x SATA 3.0, PS/2 combo port, 8-bit GPIO, HD Audio.
1 x PCIe x16, 2 x PCie x4, 4 x PCI slots

Download file

Spec.

CPU Support
- 7th/6th Generation (Kaby Lake S/Skylake S) Intel® Core™ i7/i5/i3/Pentium®/Celeron® 14nm LGA1151 socket processor
Main Memory
- 4 x DDR4 U DIMM memory socket with non-ECC support, up to 64 GB 2133/1867 MHz
BIOS
- AMI (UEFI)
Display
- 1 x VGA connector (resolution up to 1920 x 1080@60Hz)
- 2 x HDMI 1.4 connector (resolution Up to 4096 x 2160@24 Hz)
System
- 10 x USB 3.2 (Gen1), 4 x USB 2.0
- 5 x RS232, 1 x RS232/485/422
- Realtek HDA codec
- 1 x Front panel header, 8-bit digital I/O (in/out programmable), WDT, chassis intrusion
- 2 x Fan connector
Storage
- 4 x SATA 3.0 (6.0Gb/s) ports
Expansion Slot
- 1 x PCIe x16, 2 x PCIe x4, 4 x PCI slots
Rear I/O
- 1 x 4 deck USB 3.2 (Gen1)
- 1 x VGA, 2 x HDMI
- 1 x RS232/455/422
- 2 x RJ45
  - Intel® PHY I219-LM Giga LAN x 1 (supports Intel® AMT 12.0)
  - Intel® I210AT (Giga LAN )
- 4 x USB 3.2 (Gen1)
- 1 x HD audio connector (1 x Line-out + Mic-in + Line-in 3.5mm Jack)
I/O Interface
- USB 2.0: 4 ports by internal pin-header
- Serial: 5 ports RS232 by internal pin-header
- SATA HDD: 4 ports SATA6.0Gb/s, supports RAID 0/1/5/10
- GPIO: supports 4 x GPI and 4 x GPO
Internal I/O
- 4 x USB 2.0 (pin header)
- 5 x serial ports
  - 5 x RS232
- 1 x 8-bit digital I/O interface (in/out programmable)
- HA audio jack
Power Requirement
- 1 x 24-pin ATX connect/1 x 8-pin (2 x 4) ATX 12V power connector
- Support both AT and ATX power supply mode
Dimensions
- ATX form factor, 12”x9.6” (305mm x 244mm)
- ATX Dimension: 305mm (L) x 244mm (W) (12” x 9.6”)
Environment
- Board level operation temperature: 0˚C to 60˚C
- Storage temperature: -40°C ~85°C
- Relative humidity:
  - 10% to 95% (operating, non-condensing)
  - 5% to 95% (non-operating, non-condensing)
Certifications
- Meet CE/FCC Class A
Warranty
- 2 year global warranty
- Own Brand, Own Factory Production, Global Fast Shipping
- Ships within 2 business days after ordering.
- 2-year global warranty.
- 30-day return policy.
- Free shipping.
- For any usage issues after purchase, please feel free to contact us anytime.
NEXCOM NEX912P Datasheet
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Access NEXCOM Industrial Solutions on Our Official Online Channels:

Specifications
CPU Support

7th/6th Generation (Kaby Lake S/Skylake S) Intel® Core™ i7/i5/i3/Pentium®/Celeron® 14nm LGA1151 socket processor
Main Memory

4 x DDR4 U DIMM memory socket with non-ECC support, up to 64 GB 2133/1867 MHz
BIOS

AMI (UEFI)
Display

1 x VGA connector (resolution up to 1920 x 1080@60Hz)

2 x HDMI 1.4 connector (resolution Up to 4096 x 2160@24 Hz)
System

10 x USB 3.2 (Gen1), 4 x USB 2.0

5 x RS232, 1 x RS232/485/422

Realtek HDA codec

1 x Front panel header, 8-bit digital I/O (in/out programmable), WDT, chassis intrusion

2 x Fan connector
Storage

4 x SATA 3.0 (6.0Gb/s) ports
Expansion Slot

1 x PCIe x16, 2 x PCIe x4, 4 x PCI slots
Rear I/O

1 x 4 deck USB 3.2 (Gen1)

1 x VGA, 2 x HDMI

1 x RS232/455/422

2 x RJ45
- Intel® PHY I219-LM Giga LAN x 1 (supports Intel® AMT 12.0)
- Intel® I210AT (Giga LAN )

4 x USB 3.2 (Gen1)

1 x HD audio connector (1 x Line-out + Mic-in + Line-in 3.5mm Jack)
I/O Interface

USB 2.0: 4 ports by internal pin-header

Serial: 5 ports RS232 by internal pin-header

SATA HDD: 4 ports SATA6.0Gb/s, supports RAID 0/1/5/10

GPIO: supports 4 x GPI and 4 x GPO
Internal I/O

4 x USB 2.0 (pin header)

5 x serial ports
- 5 x RS232

1 x 8-bit digital I/O interface (in/out programmable)

HA audio jack
Power Requirement

1 x 24-pin ATX connect/1 x 8-pin (2 x 4) ATX 12V power connector

Support both AT and ATX power supply mode
Dimensions

ATX form factor, 12”x9.6” (305mm x 244mm)

ATX Dimension: 305mm (L) x 244mm (W) (12” x 9.6”)
Environment

Board level operation temperature: 0˚C to 60˚C

Storage temperature: -40°C ~85°C

Relative humidity:
- 10% to 95% (operating, non-condensing)
- 5% to 95% (non-operating, non-condensing)
Certifications

Meet CE/FCC Class A
Warranty

2 year global warranty
After-sales service
- Own Brand, Own Factory Production, Global Fast Shipping
- Ships within 2 business days after ordering.
- 2-year global warranty.
- 30-day return policy.
- Free shipping.
- For any usage issues after purchase, please feel free to contact us anytime.
Download

NEXCOM NEX912P Datasheet
Contact Us
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Online Shopping

Access NEXCOM Industrial Solutions on Our Official Online Channels:

NEXCOM NEX 912P Industrial PC

Robust and Expandable ATX Platform

The NEX 912P is an ATX board. It is equipped with 7th/6th Generation (Kaby Lake S/Skylake S) Intel® Core™ i7/i5/i3/ Pentium® /Celeron® 14 nm LGA 1151 socket processor to support 65W max and Intel® Q170 chipset It comes with four DDR 4 DIMM sockets up to 64 GB DDR 4 2133/1867 MHz with non-ECC support and integrated HD graphic controller. The NEX912P with Intel® Q170 PCH provides high performance and rich expansion. Furthermore it also features an integrated Intel® AMT 11 for easier maintenance.

NEX 912P operates at a temperature range from 0˚C to 60˚C, this design is ideal for embedded applications that run in outdoor or semi outdoor environments, such as kiosks, outdoor systems installed in harsh environments, home automation, and thin clients.

Core Features

Powerful CPU Support:
Supports 7th/6th Gen Intel® Core™ i7/i5/i3, Pentium®, and Celeron® processors in LGA1151 socket.
High-Speed Memory:
Up to 64GB DDR4 non-ECC memory across 4 DIMM slots, ensuring efficient multitasking.
Rich Display Options:
Dual HDMI 1.4 and VGA outputs support up to 4K UHD resolution for versatile visual applications.
Versatile Expansion:
Equipped with 1x PCIe x16, 2x PCIe x4, and 4x legacy PCI slots for flexible integration.
Advanced Connectivity:
10x USB 3.2 Gen1, 4x USB 2.0, 6x COM ports, and dual Intel® Gigabit LAN for seamless communication.
Industrial-Grade Reliability:
Wide operating temperature range and CE/FCC Class A certification for demanding environments.
Flexible Power Design:
Supports both AT and ATX power modes with 24-pin and 8-pin connectors.

Applications

Factory Automation:
Stable control backbone with rich I/O for PLC and sensor integration.
Medical Imaging Systems:
Multiple display outputs and high-speed data handling for diagnostic equipment.
Smart Surveillance:
Handles multiple cameras and storage devices with ease, thanks to RAID support.
Retail & POS Systems:
Delivers high performance and extensive COM/USB connectivity for peripherals.
Industrial Control Panels:
Customizable GPIO and fan headers ensure smooth integration into control systems.
Network Management:
Dual Intel® Gigabit LAN and AMT 12.0 support allow secure and remote access.
Digital Content Workstations:
Ideal for high-res display and audio handling in content-rich environments.

All-in-One ATX Solution for Industrial Control and Multimedia

This high-performance industrial ATX motherboard combines the power of Intel® 7th/6th Gen Core™ processors with robust expandability and I/O options. It supports up to 64GB DDR4 memory, dual 4K HDMI outputs, and a full suite of interfaces including 10x USB 3.2, 6x COM, RAID-capable SATA storage, and dual Intel® GbE LAN with AMT 12.0. Built to fit into standard ATX chassis, this board operates reliably across demanding industrial conditions (0°C to 60°C) and provides flexible power options for integration into a wide range of applications—from automation to surveillance to digital signage.
