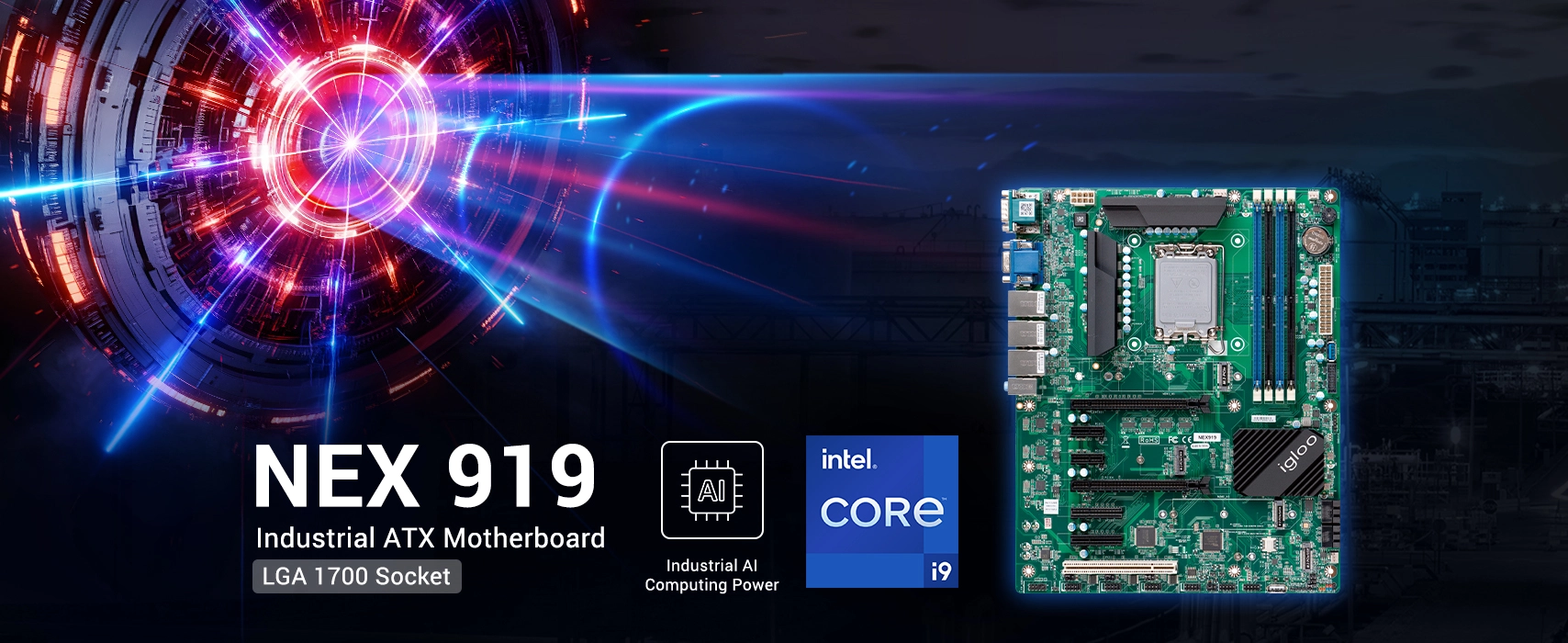

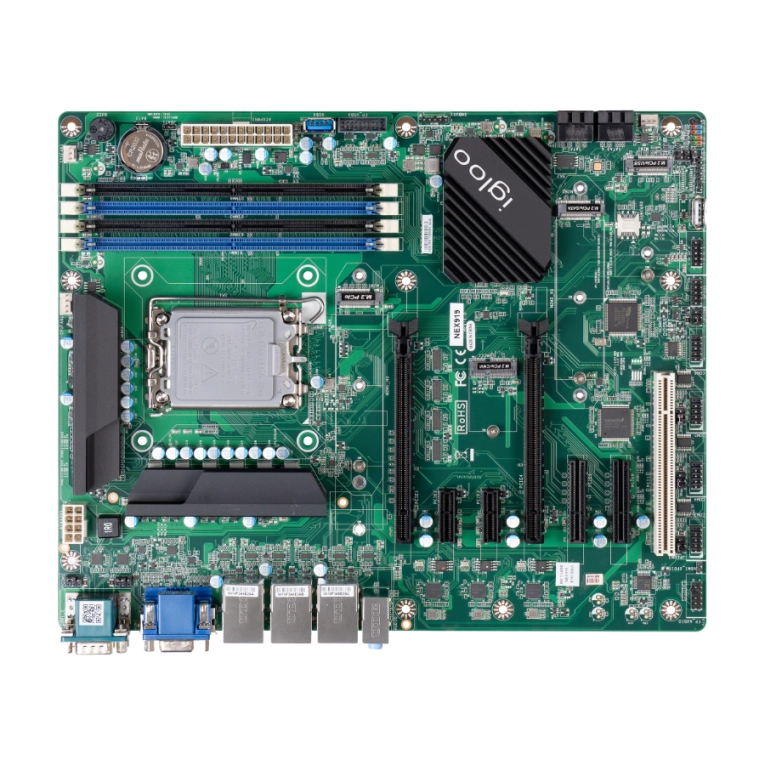

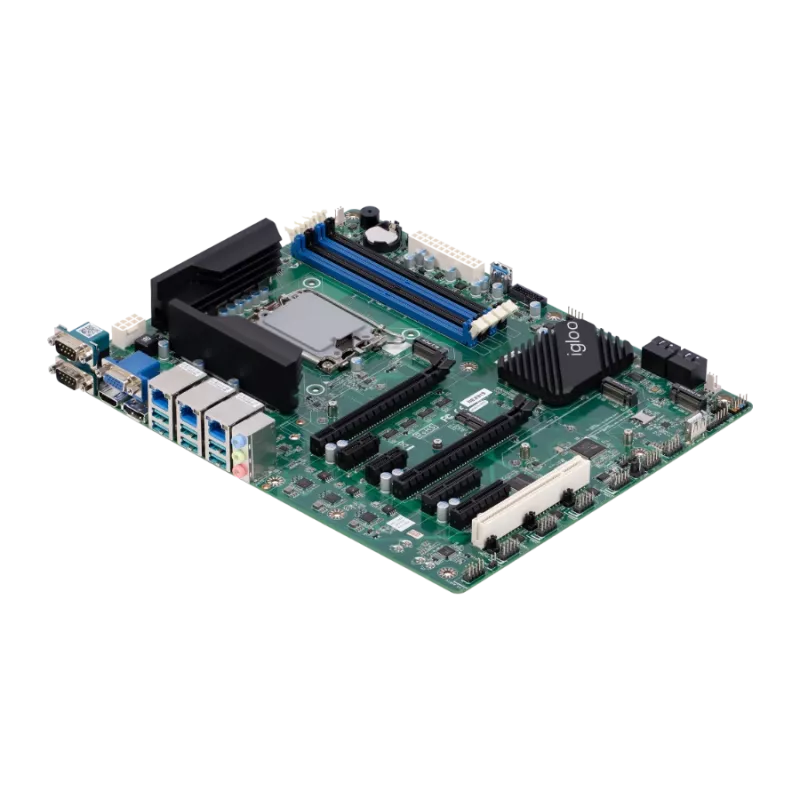

NexCOBOT ATX Motherboard | NEX919
ATX supports 14th/13th/12th Gen Intel® Core™ LGA1700 Socket Processor
Merchandise number： P000003190X00
Description：
- Intel® LGA1700 socket supports 14th/13th/12th Gen Intel® Core™ processor (max 125W)
- Intel® Q670E express chipset
- 4 x DDR5 4800MHz up to 128GB
- 1 x Intel® i226-LM 2.5GbE, 2 x Intel® i226-V 2.5GbE
- 2 x M.2 slot (Key M), 1 x M.2 slot (Key E), 1 x M.2 slot (Key B)
- 4 x SATA 3.0 (6Gb/s), support Raid 0/1/5/10
- 1 x VGA, 1 x HDMI®, 1 x DP
- 6 x COM (COM1/2 support RS232/422/485;COM1/2/3/4 support 5V/12V TTL)
- 2 x PCIe x16, 2 x PCIe x4 , 2 x PCIe x1, 1 x PCI slots
- 24 + 8-pin ATX power input
- ATX form factor (305 x 244mm)
Download file
-
CPU/Chipset
- Intel® 14th/13th/12th Gen Intel® Core™ , LGA 1700 socket, processor Max 125W
- Intel® Q670E chipset
- AMI 256Mb flash ROM
Main Memory- 4 x DDR5 (4800MHz x 4, up to 128GB)
- Non-ECC, dual-channel memory architecture
BIOS- 256mb flash ROM, AMI BIOS
Display- Intel® HD graphics, shared memory
- 1 x VGA connector (resolution up to 1920 x 1080@60Hz)
- 1 x HDMI® 2.0b connector (resolution Up to 4096 x 2160 @ 60 Hz)
- 1 x DP 1.4a connector (resolution Up to 4096 x 2304@60 Hz)
Storage- 4 x SATA 3.0 ports (6Gb/s) support RAID 0/1/5/10

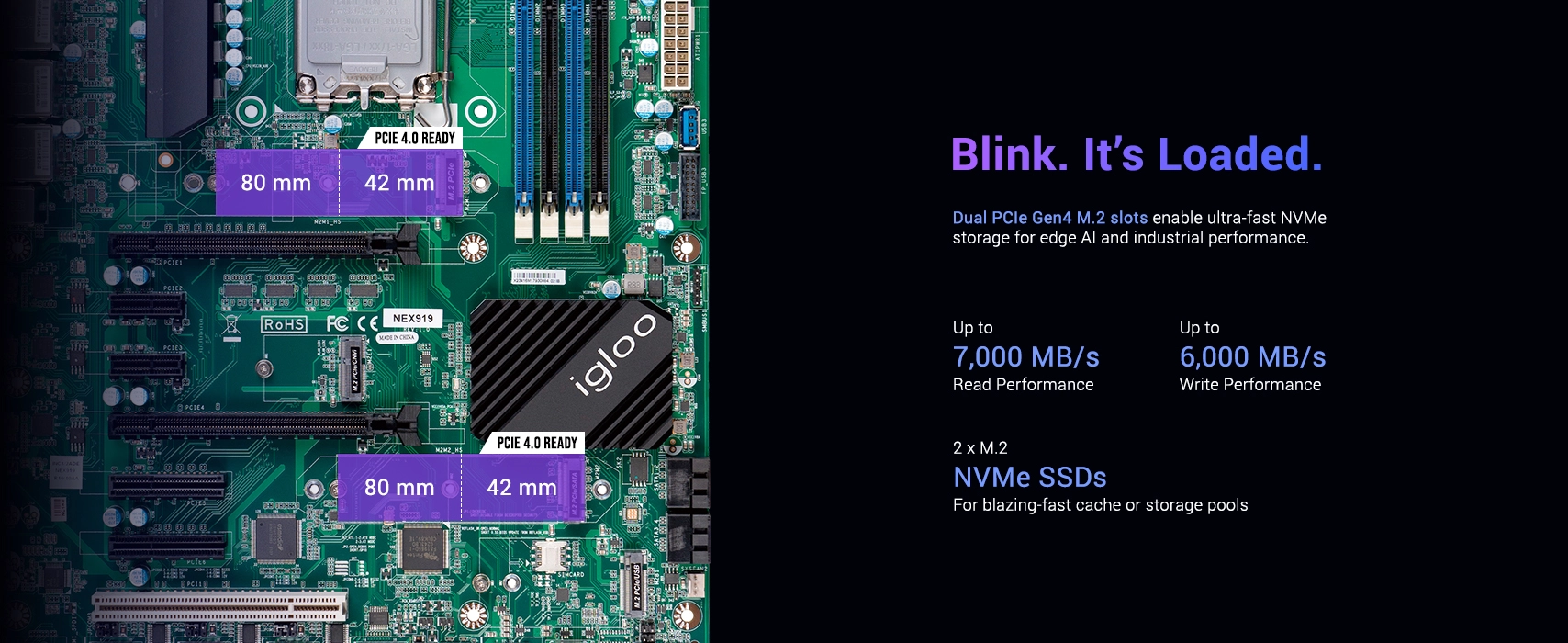

- 1 x M.2 2242/2280 Key M (PCIe Gen 4 x4 interface) support NVMe
- 1 x M.2 2242/2280 Key M (PCIe Gen 4 x4/SATA interface)support NVMe
Expansion Slot- 2 x PCIe x16 slot (1 x PCIe Gen 4 x16 or 2 x PCIe Gen 4 x8)
- 2 x PCIe x4 slot (Gen 4)
- 2 x PCIe x1 slot (Gen 3)
- 1 x PCI
- 1 x M.2 3042/3052 Key B (PCIe Gne 3 x1/USB 3.2 Gen 2/USB 2.0) support 4G/5G module
- 1 x M.2 2230 Key B (PCIe Gen 3 x1/USB 2.0) support CNVi
Audio- Realtek ALC888S-Channel high definition Audio CODEC
Watchdog Timer- 256 segments (10sec ~ 255min)
Power Requirement- 1 x 24-pin ATX connector, 1 x 8-pin ATX 12V power connector
- Support both AT and ATX power supply mode
- ATX power
- AT: Directly PWR on as power input ready
- ATX: Press button to PWR on after power input ready
TPM- TPM 2.0 on board

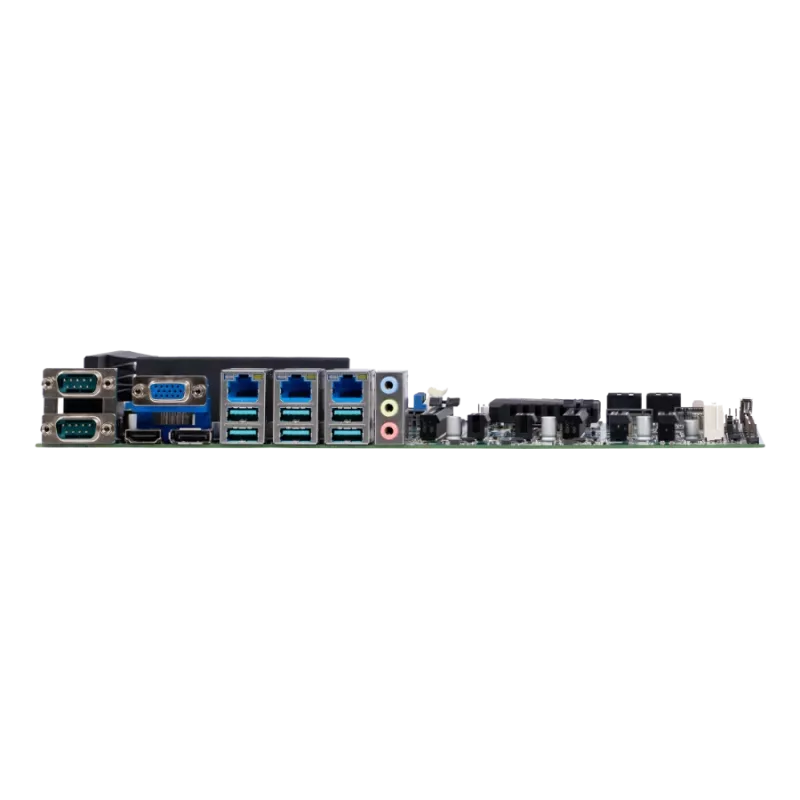

Rear I/O- 1 x VGA, 1 x HDMI® 2.0 , 1 x DP 1.4
- 3 x RJ45 (1 x Intel® i226-LM 2.5GbE, 2 x Intel® i226-V 2.5GbE)
- 6 x USB 3.2 Gen2
- 2 x COM DB-9 COM (supports RS-232/422/485, 5V/12V/RI)
- Audio Jack x 3: Line-in, Mic-in, Line-out

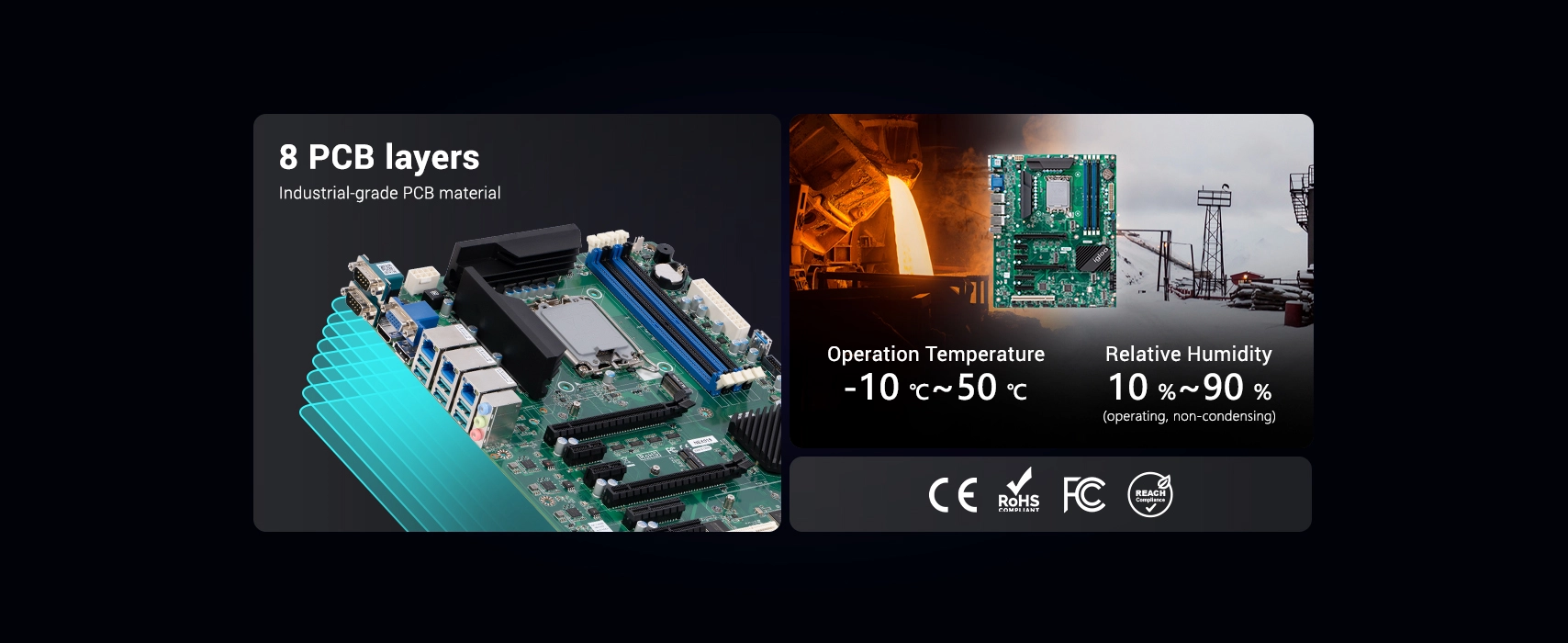

Environment- Board level operation temperature : -10°C to 50°C
- Storage temperature : -20˚C to 85˚C
- Relative humidity: 10% to 90% (operating, non-condensing)
Certifications- Meet CE/FCC/RoHS/REACH
OS Support- Windows 10,11, Linux
-
- Own Brand, Own Factory Production, Global Fast Shipping
- Ships within 2 business days after ordering.
- 2-year global warranty.
- 30-day return policy.
- Free shipping.
- For any usage issues after purchase, please feel free to contact us anytime.
- NEXCOM NEX919 Datasheet
-
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
-
SpecificationsCPU/Chipset
- Intel® 14th/13th/12th Gen Intel® Core™ , LGA 1700 socket, processor Max 125W
- Intel® Q670E chipset
- AMI 256Mb flash ROM
Main Memory- 4 x DDR5 (4800MHz x 4, up to 128GB)
- Non-ECC, dual-channel memory architecture
BIOS- 256mb flash ROM, AMI BIOS
Display- Intel® HD graphics, shared memory
- 1 x VGA connector (resolution up to 1920 x 1080@60Hz)
- 1 x HDMI® 2.0b connector (resolution Up to 4096 x 2160 @ 60 Hz)
- 1 x DP 1.4a connector (resolution Up to 4096 x 2304@60 Hz)
Storage- 4 x SATA 3.0 ports (6Gb/s) support RAID 0/1/5/10
- 1 x M.2 2242/2280 Key M (PCIe Gen 4 x4 interface) support NVMe
- 1 x M.2 2242/2280 Key M (PCIe Gen 4 x4/SATA interface)support NVMe
Expansion Slot- 2 x PCIe x16 slot (1 x PCIe Gen 4 x16 or 2 x PCIe Gen 4 x8)
- 2 x PCIe x4 slot (Gen 4)
- 2 x PCIe x1 slot (Gen 3)
- 1 x PCI
- 1 x M.2 3042/3052 Key B (PCIe Gne 3 x1/USB 3.2 Gen 2/USB 2.0) support 4G/5G module
- 1 x M.2 2230 Key B (PCIe Gen 3 x1/USB 2.0) support CNVi
Audio- Realtek ALC888S-Channel high definition Audio CODEC
Watchdog Timer- 256 segments (10sec ~ 255min)
Power Requirement- 1 x 24-pin ATX connector, 1 x 8-pin ATX 12V power connector
- Support both AT and ATX power supply mode
- ATX power
- AT: Directly PWR on as power input ready
- ATX: Press button to PWR on after power input ready
TPM- TPM 2.0 on board
Rear I/O- 1 x VGA, 1 x HDMI® 2.0 , 1 x DP 1.4
- 3 x RJ45 (1 x Intel® i226-LM 2.5GbE, 2 x Intel® i226-V 2.5GbE)
- 6 x USB 3.2 Gen2
- 2 x COM DB-9 COM (supports RS-232/422/485, 5V/12V/RI)
- Audio Jack x 3: Line-in, Mic-in, Line-out
Environment- Board level operation temperature : -10°C to 50°C
- Storage temperature : -20˚C to 85˚C
- Relative humidity: 10% to 90% (operating, non-condensing)
Certifications- Meet CE/FCC/RoHS/REACH
OS Support- Windows 10,11, Linux
-
After-sales service
- Own Brand, Own Factory Production, Global Fast Shipping
- Ships within 2 business days after ordering.
- 2-year global warranty.
- 30-day return policy.
- Free shipping.
- For any usage issues after purchase, please feel free to contact us anytime.
-
Download
-
Contact Us
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
-
Online Shopping
NEXCOM NEX 919 Industrial PC
Industrial-Grade Performance and Flexibility
The NEX 919 is an ATX board. It is equipped with the 14th/13th/12th Gen Intel® Core™ processors to support up to a maximum of 125W max and Intel® Q670E chipset. It comes with 4 x DDR5 4800MHz DIMM sockets up to 128GB with non-ECC, un-buffered memory, dual-channel memory architecture and an integrated HD graphic controller. With Intel® Q670E PCH, the NEX 919 provides high performance and rich expansions. The SATA 3.0 ports with RAID 0,1, 5, and 10, helps to provide quick access to data files and data protection. Furthermore, it also features an integrated Intel® AMT 12 for easier maintenance. NEX 919 is a high-performance system and PCIe x16 Gen 4 is suitable for IOT, AI, AOI, AI vision, and logistics, etc.
01
Core Features
- Powerful CPU Support:
Supports 12th/13th/14th Gen Intel® Core™ processors with LGA1700 socket, delivering high-performance computing for industrial applications.
- High-Speed Memory:
Supports up to 128GB DDR5 non-ECC memory across 4 DIMM slots at 4800MHz, ensuring fast and efficient multitasking.
- Rich Display Options:
Includes VGA (1080p), HDMI 2.0b, and DisplayPort 1.4a outputs supporting up to 4K UHD resolution, perfect for advanced visualization needs.
- Versatile Expansion:
Features 2x PCIe Gen4 x16 slots, 2x PCIe Gen4 x4, 2x PCIe Gen3 x1, and 1 legacy PCI slot for flexible peripheral integration.
- Comprehensive Connectivity:
Equipped with 6x USB 3.2 Gen2, 2x COM ports supporting RS-232/422/485, 3x Intel® 2.5GbE LAN ports, and audio I/O for diverse connectivity requirements.
- Industrial-Grade Reliability:
Operates reliably from -10°C to 50°C, meets CE/FCC/RoHS/REACH certifications for stable use in demanding environments.
- Flexible Power Design:
Supports AT and ATX power supply modes via 24-pin ATX and 8-pin ATX12V connectors for easy system integration.
02
Compact Powerhouse for Industrial & Embedded Systems
The NEX 919 ATX motherboard supports Intel® 12th to 14th Gen Core™ processors with up to 128GB DDR5 memory and triple 4K display outputs (VGA, HDMI 2.0, DP 1.4). Equipped with multiple PCIe Gen4 slots, dual 2.5GbE LAN, and RAID-capable storage, it offers flexible expansion and reliable connectivity. Built for industrial environments with wide operating temperatures and TPM 2.0 security, the NEX 919 is the ideal platform for automation, embedded control, and multimedia applications.03
Success Story
A leading semiconductor manufacturer integrated the NEX 919 into their wafer inspection line, utilizing its PCIe Gen 4 slots and stable I/O to support high-speed image capture and analysis with existing equipment, ensuring precise defect detection and uninterrupted production.04
