Embedded Computing

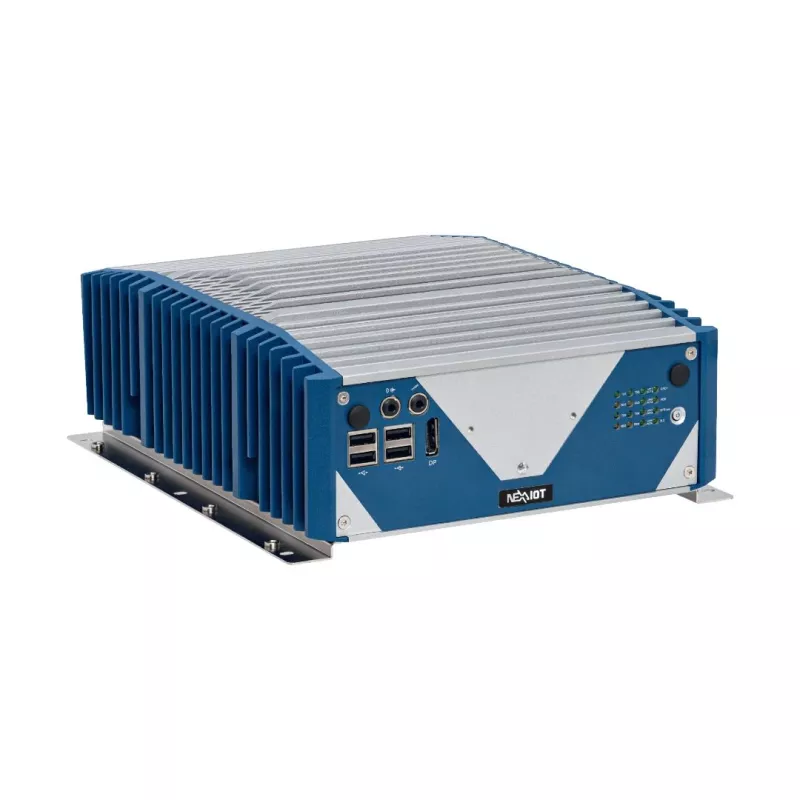

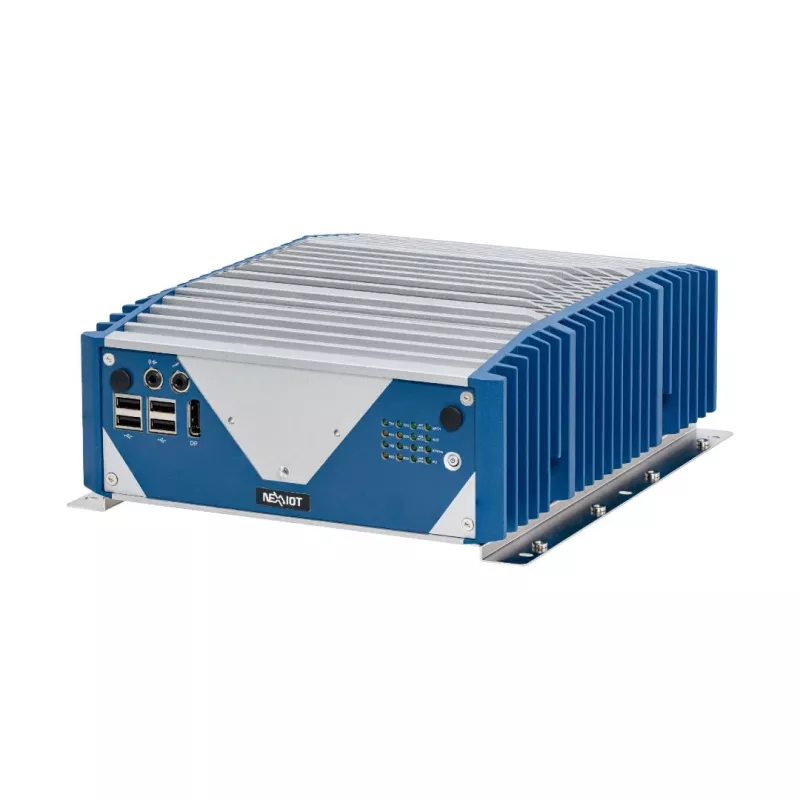

NexAIoT Fanless Embedded Computer | NISE 3910E

NexAIoT Fanless Embedded Computer | NISE 3910E

13th/12th Generation Intel® Core™ i9/i7/i5/i3 Fanless System

Merchandise number：A0J00391000X0

Discounted price:US$
Sale US$
MSRP US$
Use bonus pointspt.

Description：

Intel® Core™ Ready
Pre-installed with i3-12100TE, supports 12th/13th Gen CPUs for industrial computing.
Fanless & Durable
Rugged aluminum chassis ensures silent operation in tough environments.
Triple Display
DP, HDMI®, and VGA support three independent screens.
Fast Networking
Four 2.5GbE LAN ports with WoL, teaming, and PXE.
Flexible I/O
Includes USB 2.0/3.2, COM ports, audio, SIM, and front-access M.2.
Expandable
Supports 5G/LTE/Wi-Fi via M.2 and mini-PCIe, plus 1 x PCIe x4 slot.
Wide Power Input
Accepts 12–30V DC with AT/ATX modes.
Built for Harsh Use
Operates from -20°C to 60°C; shock and vibration tested.
OS Support
Compatible with Windows 11 and Windows 10 IoT.

Spec.

CPU Support
- Core i3-12100TE
Main Memory
- None
Display Option
- Three independent display: HDMI®, DP, VGA

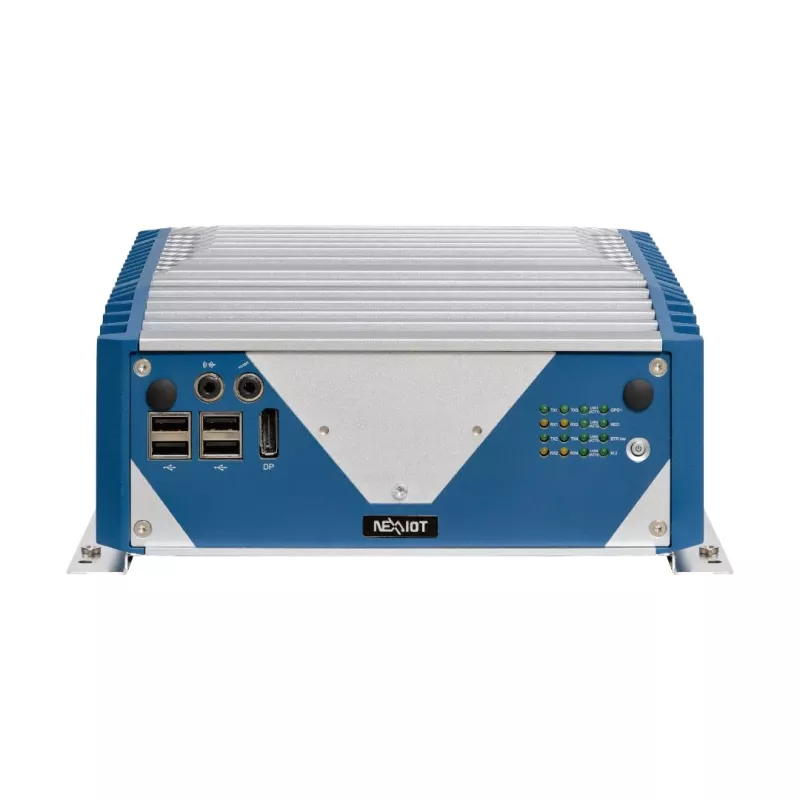

I/O Interface-Front
- 1 x ATX power on/off switch
- LED indicators :
  - 4 x LAN active
  - 1 x GPO status
  - 4 x COM Tx/Rx
  - 1 x HDD/SSD status
  - 1 x Battery low
  - 1 x M.2
- 1 x DP
- 2 x Antenna holes
- 1 x Outside accessible M.2 2242 Key M (PCIe x4, SATA)
- 1 x SIM card holder
- 4 x USB 2.0 Type A (500mA/port)
- 1 x Line out and 1 x mic-in
I/O Interface-Rear
- 1 x HDMI®
- 1 x VGA port
- 6 x USB 3.2 Gen1 Type A (900mA per each)
- 4 x Intel® I226-IT 2.5GbE LAN ports; support WoL, teaming & PXE
- 2 x Isolated RS232/422/485
- 1 x RS232
- 1 x 3-pin DC input, support +12 to 30VDC input
- 1 x 3-pin remote power on/off switch
I/O Interface-Internal
- 8 x GPI and 8 x GPO (5V, TTL type)
- 1 x M.2 Key B 2242/3042/3052 (PCIe x2, SATA, USB3.0)
- 1 x mini-PCIe (PCIe x1, USB3.0, SATA)
Storage Device ( Installed )
- None
Expansion Slot
- 1 x PCIe x4 up to 25W/slot, 169mm Max. length
Power Requirement
- AT/ATX power mode (Default ATX mode)
- Power input: +12 to 30 VDC
Dimensions
- 215mm (W) x 272mm (D) x 94mm (H) without wall-mount bracket
  (8.46” x 10.7” x 3.7”)
Construction
- Aluminum chassis with fanless design
Environment
- Operating temperature: Ambient with air flow: -20°C to 60°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
- Storage temperature: -20°C to 80°C
- Relative humidity: 10% to 95% (non-condensing)
- Shock protection:
  - HDD: 20G@wallmount, half sine, 11ms(operation), IEC600682-27
  - SSD: 50G@wallmount, half sine, 11ms(operation), IEC600682-27
- Vibration protection w/ HDD condition:
  - Random: 0.5Grms@5~500Hz, IEC60068-2-64
  - Sinusoidal: 0.5Grms@5~500Hz, IEC60068-2-6
- Vibration protection w/ SSD condition:
  - Random: 2Grms@5~500 Hz, IEC60068-2-64
  - Sinusoidal: 2Grms@5~500 Hz, IEC60068-2-6
Certification
- CE
- FCC Class A
- UL
OS Support Lists
- Windows 11
- Windows 10 IoT Enterprise, 64-bit
- Own Brand, Own Factory Production, Global Fast Shipping
- Ships within 2 business days after ordering.
- 2-year global warranty.
- 30-day return policy.
- Free shipping.
- For any usage issues after purchase, please feel free to contact us anytime.
NEXCOM NISE 3910E-Datasheet
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Access NEXCOM Industrial Solutions on Our Official Online Channels:

Specifications
CPU Support

Core i3-12100TE
Main Memory

None
Display Option

Three independent display: HDMI®, DP, VGA
I/O Interface-Front

1 x ATX power on/off switch

LED indicators :
- 4 x LAN active
- 1 x GPO status
- 4 x COM Tx/Rx
- 1 x HDD/SSD status
- 1 x Battery low
- 1 x M.2

1 x DP

2 x Antenna holes

1 x Outside accessible M.2 2242 Key M (PCIe x4, SATA)

1 x SIM card holder

4 x USB 2.0 Type A (500mA/port)

1 x Line out and 1 x mic-in

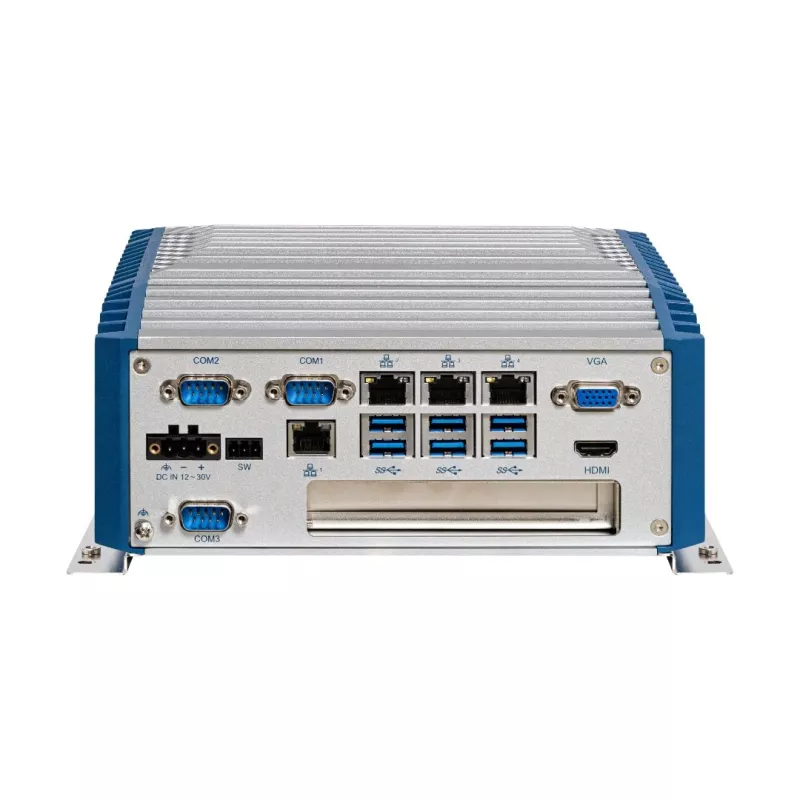

I/O Interface-Rear

1 x HDMI®

1 x VGA port

6 x USB 3.2 Gen1 Type A (900mA per each)

4 x Intel® I226-IT 2.5GbE LAN ports; support WoL, teaming & PXE

2 x Isolated RS232/422/485

1 x RS232

1 x 3-pin DC input, support +12 to 30VDC input

1 x 3-pin remote power on/off switch
I/O Interface-Internal

8 x GPI and 8 x GPO (5V, TTL type)

1 x M.2 Key B 2242/3042/3052 (PCIe x2, SATA, USB3.0)

1 x mini-PCIe (PCIe x1, USB3.0, SATA)
Storage Device ( Installed )

None
Expansion Slot

1 x PCIe x4 up to 25W/slot, 169mm Max. length
Power Requirement

AT/ATX power mode (Default ATX mode)

Power input: +12 to 30 VDC
Dimensions

215mm (W) x 272mm (D) x 94mm (H) without wall-mount bracket
(8.46” x 10.7” x 3.7”)
Construction

Aluminum chassis with fanless design
Environment

Operating temperature: Ambient with air flow: -20°C to 60°C (according to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

Storage temperature: -20°C to 80°C

Relative humidity: 10% to 95% (non-condensing)

Shock protection:
- HDD: 20G@wallmount, half sine, 11ms(operation), IEC600682-27
- SSD: 50G@wallmount, half sine, 11ms(operation), IEC600682-27

Vibration protection w/ HDD condition:
- Random: 0.5Grms@5~500Hz, IEC60068-2-64
- Sinusoidal: 0.5Grms@5~500Hz, IEC60068-2-6

Vibration protection w/ SSD condition:
- Random: 2Grms@5~500 Hz, IEC60068-2-64
- Sinusoidal: 2Grms@5~500 Hz, IEC60068-2-6
Certification

CE

FCC Class A

UL
OS Support Lists

Windows 11

Windows 10 IoT Enterprise, 64-bit
After-sales service
- Own Brand, Own Factory Production, Global Fast Shipping
- Ships within 2 business days after ordering.
- 2-year global warranty.
- 30-day return policy.
- Free shipping.
- For any usage issues after purchase, please feel free to contact us anytime.
Download

NEXCOM NISE 3910E-Datasheet
Contact Us
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Online Shopping

Access NEXCOM Industrial Solutions on Our Official Online Channels:

NEXCOM NISE 3910E Industrial PC

The Iron Heart of Industrial Intelligence

Integrated with 12th & 13th Gen Intel® Core™ i9/i7/i5/i3 processors, NISE 3910 series is the fanless PC designed for industrial automation and edge computing which demand high CPU and graphics performance. NISE 3910 series supports up to 64G DDR5 memory and have several options on storage devices like M.2, HDD or SSD, and mSATA. NISE 3910 series supports wide range of DC input from +12V to 30V DC input, and can be operated in an extended operating temperature range between -20 to 60 Celsius degree. For extended module availability, NISE 3910 series also designed one internal mini-PCIe sockets to support IoT wireless connectivity applications (support optional Wi-Fi, 3.5G, 4G LTE modules), also 5G module via M.2 3052 Key B.

Silent Beast. Built for the Edge.

Meet the NISE 3910E — a powerhouse wrapped in a rugged, fanless chassis. Powered by 12th and 13th Gen Intel® Core™ processors and supporting up to 64GB DDR5 memory, it delivers the next level of computing for AI, vision processing, and automation. Whether it’s real-time decision-making on the factory floor or high-speed data crunching at the edge, the NISE 3910E delivers peak performance without the noise.

Connected to Everything. Ready for Anything

Designed for total industrial versatility, the NISE 3910E features four Intel® i226-IT LAN ports, triple-display support (DP, HDMI®, VGA), and a wealth of I/O — including isolated COM ports, USB 3.2 Gen 1, and expansion slots for 5G/LTE/Wi-Fi. Its modular flexibility allows you to adapt and scale with evolving IIoT demands, from smart manufacturing to remote monitoring.

Runs Cool, Works Hard — No Fans Required

Engineered for harsh environments, the NISE 3910E thrives where others fail. Its fanless design operates silently in temperatures ranging from -20°C to 60°C, while a wide 12V–30V DC input ensures compatibility across industrial power systems. With TPM 2.0 security built in and optional rugged storage configurations, this system is not just a PC — it's an industrial command center.
