Industrial Display

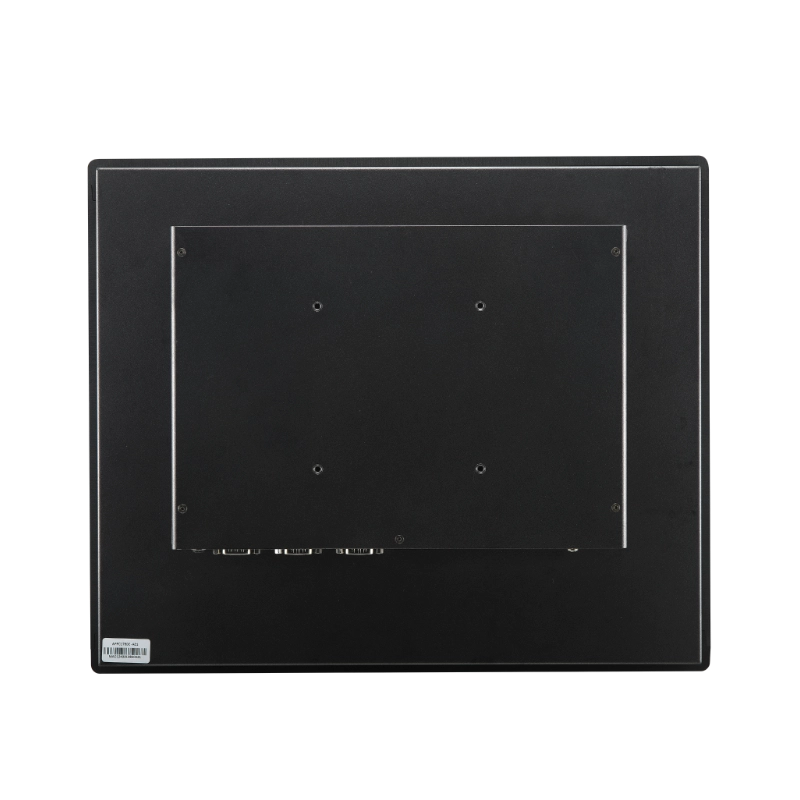

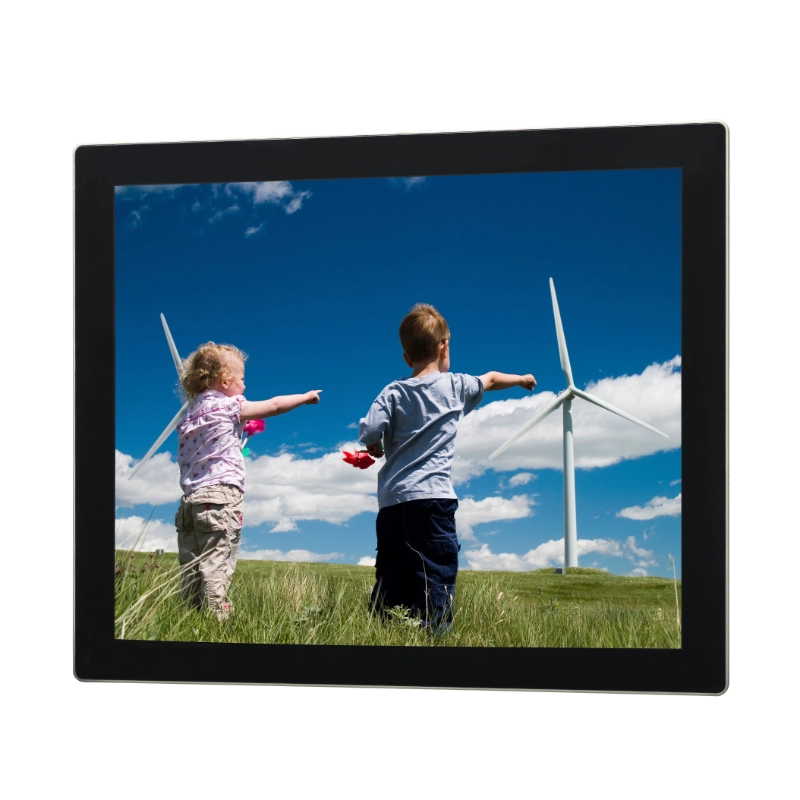

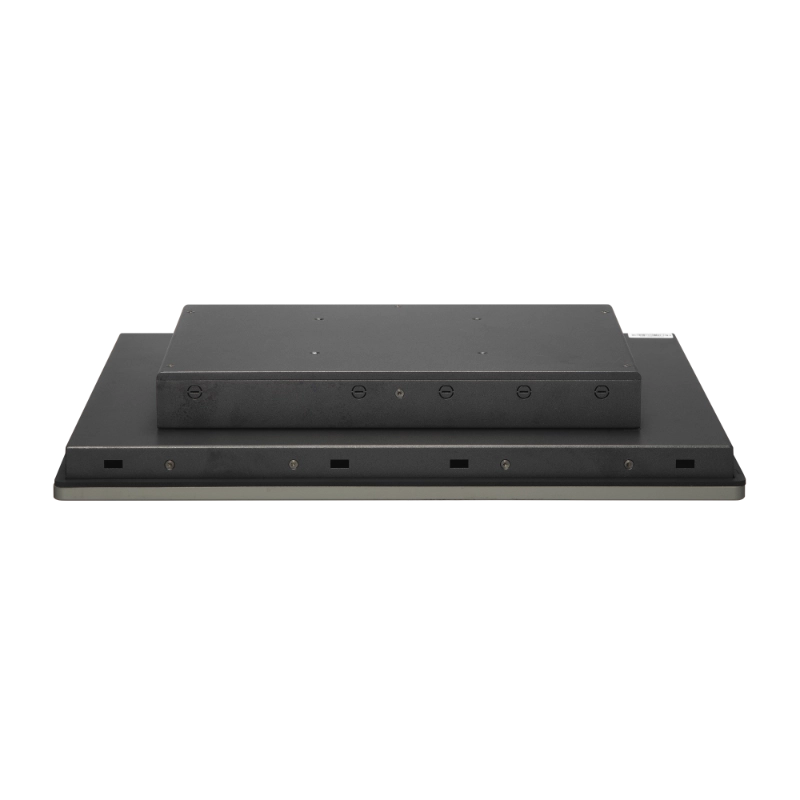

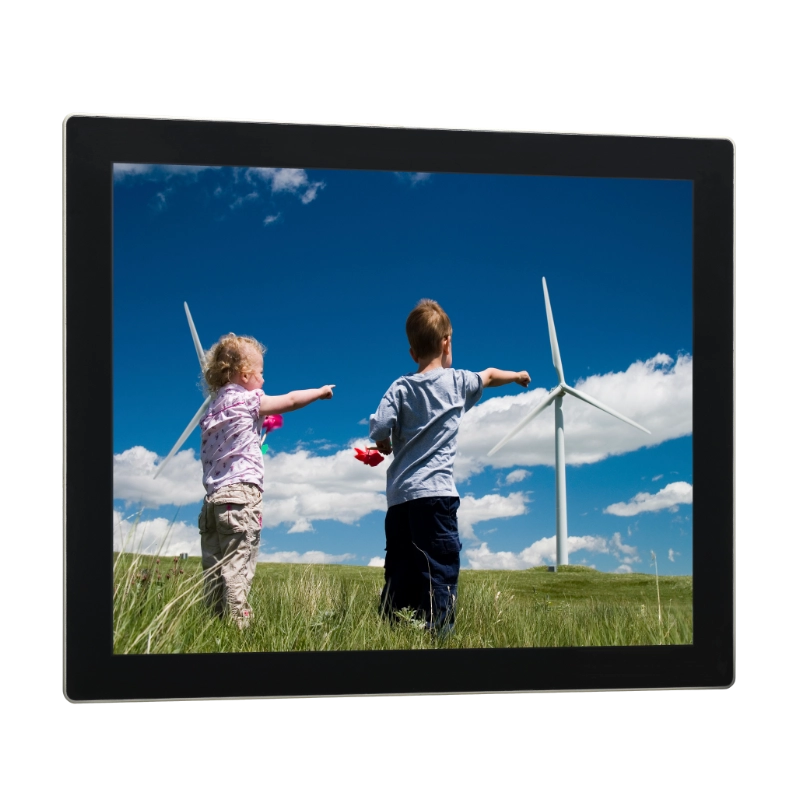

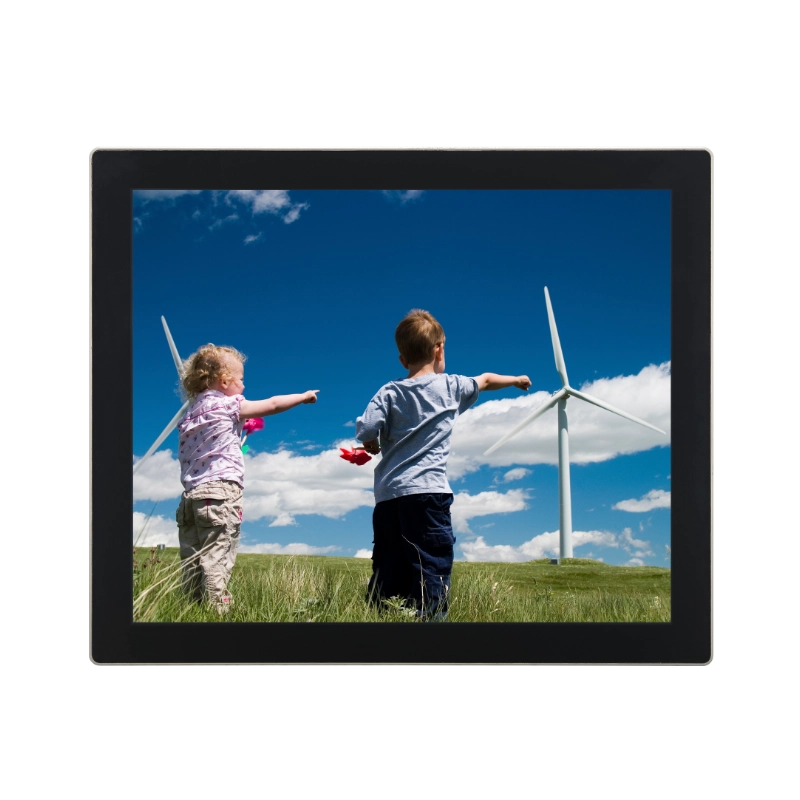

NexAIoT Panel PC | APPC1760-A01

17”SXGA panel PC, Intel® N97, resistive touch, 8GB DDR5.

Merchandise number：10IA1760C01XE

Discounted price:US$
Sale US$
MSRP US$
Use bonus pointspt.

Description：

4:3 17” SXGA fanless LED panel computer
Intel® Processor N97, Quad Core 2.0GHz, 6M Cache
Flush panel by 5-wire touch screen with slim bezel
1 x DDR5-4800MHz with default 8GB installed
Additional 2nd Display: 1 x DP / 1 x USB-C
Dual Intel® 2.5GbE LAN ports, 2 x USB 3.2, 1 x Line-out
2 x RS232/422/485, 1 x RS232, 1 x mini-PCIe, 2 x M.2
IP65 compliant front panel
Mounting support: panel/wall/stand/VESA 100mm x 100mm
DC power input 24VDC

Download file

Spec.

Panel
- LCD size: 17”, 4:3
- Resolution: SXGA 1280 x 1024
- Luminance: 400cd/m²
- Contrast ratio: 1000:1
- LCD Color: 16.7M
- Viewing angle: 80 (U), 80 (D), 85 (L), 85 (R)
- Backlight: LED
Touch
- 5-wire resistive (flush panel type)
- Light transmission: 78%
- Interface: USB
System
- CPU: Onboard Alder Lake N Intel® processor N97
- BIOS: AMI BIOS
- Support TPM 2.0
- System memory: DDR5 4800 SO-DIMM INNODISK 8GB
- Storage device
  - M.2 2242 SATAIII INNODISK 128GB 3D TLC T:-0~70°C

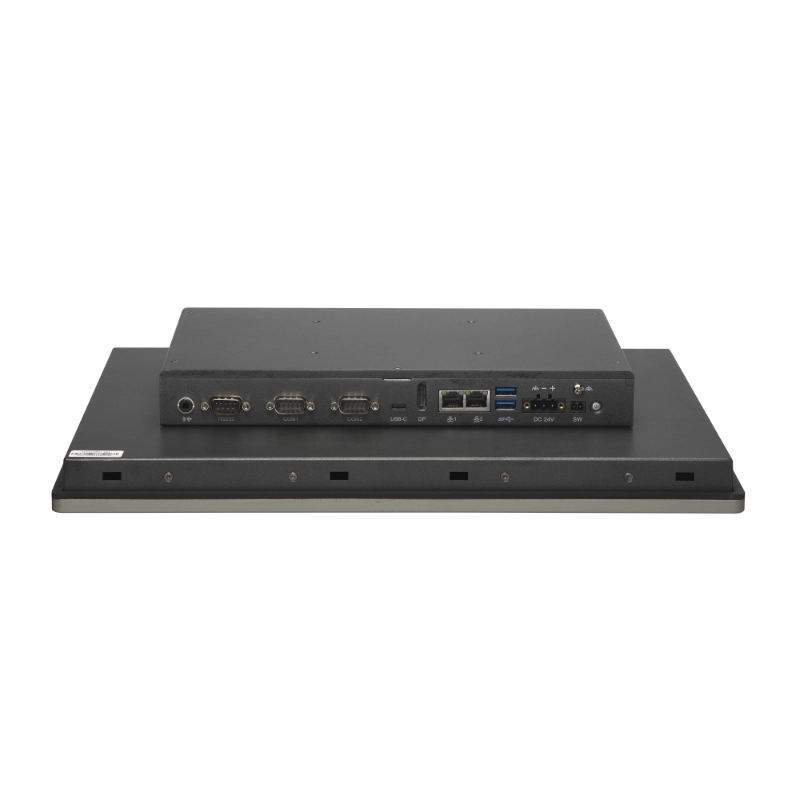

Rear I/O interface
- Power button
- 1 x 2-pin remote power on/off Terminal Block
- 24V DC input with 3-pins Terminal Block
- 2 x USB 3.2 Type A
- Ethernet: 2 x RJ45
- 1 x DP1.4a (up to 4K@60Hz)
- 1 x USB Type C (Support USB 3.2 / DP1.4a Alt. mode, up to 4K@60Hz)
- DB9 for COM1 & COM2
  - COM1: RS232/422/485 auto flow control
  - COM2: RS232/422/485 auto flow control
- 1 x DB9 for RS232 support
- 1 x Line-out
Ethernet
- LAN chip: dual Intel® I226-IT Gigabit LAN
- Ethernet interface: 10/100/1000/2500Base-T Ethernet compatible
- Support WoL and PXE
Audio
- HD audio codec: Realtek ALC888S-VD
- Audio interface: Line-out
Internal Slot
- 1 x mini-PCIe (PCIe x1, USB 2.0, SIM) for Wi-Fi/FBI/LTE
- 1 x M.2 2242 Key B (SATA) for storage
- 1 x M.2 2230/3042/3052 Key B (PCIe x1, USB 3.0, USB 2.0, SIM) for 5G/LTE
- 1 x nano SIM card slot onboard
- 1 x USB 2.0 Type A
Mechanical & Environment
- Color: Pantone 400C\RAL 090 80 10 aluminum front bezel and black silver PC box
- IP protection: IP65 front
- Mounting: panel/wall/stand/VESA 100mm x 100mm
- Power:
  Power input: 24V DC ± 20%
  AT/ATX power mode (default: ATX power mode)
  Power adapter: optional AC to DC power adapter (24V DC, 60W)
- Vibration:
  - 2G@sine, 5-500Hz, 1hr/axis (M.2 operating), IEC60060-2-64
  - 2Grms@random condition, 5-500Hz, 1hr/axis (non-operating), IEC60068-2-64
- Shock:
  - 20G@wall mount, half sine, 11ms, IEC60068-2-27
- Temperature:
  - Operating temperature: 0°C to 50°C (ambient with air flow)
  - Storage temperature: -20°C to 75°C
- Operating humidity: 10% to 90%, non-condensing (limits to be at 90% RH at max 50°C)
- Dimension: 391.8 x 325.6 x 63.65 mm
- Weight: 5.4kg
Certifications
- CE approval (EN55032, EN55035)
- FCC Class A
OS Support Lists
- Win11 IoT Enterprise 2024 LTSC MultiLang ESD Entry
- Own Brand, Own Factory Production, Global Fast Shipping
- Ships within 2 business days after ordering.
- 2-year global warranty.
- 30-day return policy.
- Free shipping.
- For any usage issues after purchase, please feel free to contact us anytime.
NEXCOM APPC 1760-A01-Datasheet
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Access NEXCOM Industrial Solutions on Our Official Online Channels:

Specifications
Panel

LCD size: 17”, 4:3

Resolution: SXGA 1280 x 1024

Luminance: 400cd/m²

Contrast ratio: 1000:1

LCD Color: 16.7M

Viewing angle: 80 (U), 80 (D), 85 (L), 85 (R)

Backlight: LED
Touch

5-wire resistive (flush panel type)

Light transmission: 78%

Interface: USB
System

CPU: Onboard Alder Lake N Intel® processor N97

BIOS: AMI BIOS

Support TPM 2.0

System memory: DDR5 4800 SO-DIMM INNODISK 8GB

Storage device
- M.2 2242 SATAIII INNODISK 128GB 3D TLC T:-0~70°C
Rear I/O interface

Power button

1 x 2-pin remote power on/off Terminal Block

24V DC input with 3-pins Terminal Block

2 x USB 3.2 Type A

Ethernet: 2 x RJ45

1 x DP1.4a (up to 4K@60Hz)

1 x USB Type C (Support USB 3.2 / DP1.4a Alt. mode, up to 4K@60Hz)

DB9 for COM1 & COM2
- COM1: RS232/422/485 auto flow control
- COM2: RS232/422/485 auto flow control

1 x DB9 for RS232 support

1 x Line-out
Ethernet

LAN chip: dual Intel® I226-IT Gigabit LAN

Ethernet interface: 10/100/1000/2500Base-T Ethernet compatible

Support WoL and PXE
Audio

HD audio codec: Realtek ALC888S-VD

Audio interface: Line-out
Internal Slot

1 x mini-PCIe (PCIe x1, USB 2.0, SIM) for Wi-Fi/FBI/LTE

1 x M.2 2242 Key B (SATA) for storage

1 x M.2 2230/3042/3052 Key B (PCIe x1, USB 3.0, USB 2.0, SIM) for 5G/LTE

1 x nano SIM card slot onboard

1 x USB 2.0 Type A
Mechanical & Environment

Color: Pantone 400C\RAL 090 80 10 aluminum front bezel and black silver PC box

IP protection: IP65 front

Mounting: panel/wall/stand/VESA 100mm x 100mm

Power:
Power input: 24V DC ± 20%
AT/ATX power mode (default: ATX power mode)
Power adapter: optional AC to DC power adapter (24V DC, 60W)

Vibration:
- 2G@sine, 5-500Hz, 1hr/axis (M.2 operating), IEC60060-2-64
- 2Grms@random condition, 5-500Hz, 1hr/axis (non-operating), IEC60068-2-64

Shock:
- 20G@wall mount, half sine, 11ms, IEC60068-2-27

Temperature:
- Operating temperature: 0°C to 50°C (ambient with air flow)
- Storage temperature: -20°C to 75°C

Operating humidity: 10% to 90%, non-condensing (limits to be at 90% RH at max 50°C)

Dimension: 391.8 x 325.6 x 63.65 mm

Weight: 5.4kg
Certifications

CE approval (EN55032, EN55035)

FCC Class A
OS Support Lists

Win11 IoT Enterprise 2024 LTSC MultiLang ESD Entry
After-sales service
- Own Brand, Own Factory Production, Global Fast Shipping
- Ships within 2 business days after ordering.
- 2-year global warranty.
- 30-day return policy.
- Free shipping.
- For any usage issues after purchase, please feel free to contact us anytime.
Download

NEXCOM APPC 1760-A01-Datasheet
Contact Us
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Online Shopping

Access NEXCOM Industrial Solutions on Our Official Online Channels:

NEXCCOM APPC 1760-A01 Applied Panel PC

APPC 1760-A01 – Powerful 17” Panel PC for Smart Industrial Control

The new 17” SXGA fanless panel PC APPC 1760-A01 incorporating an industrial motherboard is intended for versatile industrial applications. APPC 1760-A01 supports 1280 x 1024 (SXGA) resolution and 400cd/m2 brightness. The front panel which adopts flush, narrow boarder design and complies with IP65 standard to makes it perfectly fit in industrial applications. APPC 1760-A01 contains dual 2.5 Gigabit Ethernet connectors, one mini-PCIe slot and two M.2 slots to support multiple networks of LAN/WLAN/WWAN (5G) and storage. In addition, APPC 1760-A01 can hook 2nd display via DP and USB-C for dual independent display. Two adjustable RS232/422/485 ports. It is ideal for general industrial equipment integration.

Industrial-Grade Performance with Modern Efficiency

The APPC 1760-A01 is equipped with an Intel® Processor N97, offering quad-core processing power to handle demanding industrial applications with ease. Combined with 8GB of high-speed DDR5 memory, this fanless panel PC ensures smooth multitasking and responsive operation. Designed for long-term reliability, it supports both Windows 11 and Windows 10, making it a future-ready platform for HMI, control systems, and data visualization in industrial environments.

Versatile Connectivity and Expandability

With a comprehensive set of I/O options, the APPC 1760-A01 enables seamless integration into automation systems. It features three COM ports (two RS232/422/485, one RS232), two USB 3.2 Type-A, one USB-C (DP Alt Mode), dual 2.5GbE LAN, and expansion via mini-PCIe and dual M.2 slots, supporting Wi-Fi, LTE, or 5G modules. This wide connectivity makes it highly adaptable for both legacy systems and modern networked environments.

Rugged Design for Harsh Industrial Conditions

Built for reliability, the APPC 1760-A01 features a 17” 4:3 SXGA LED panel with a flush 5-wire resistive touch screen, encased in a robust chassis with IP65-rated front protection. It supports panel, wall, stand, and VESA mounting, making it flexible to deploy in control panels or production lines. Designed to operate in temperatures from 0°C to 50°C, and tested for shock and vibration resistance, it delivers dependable performance in challenging factory conditions.
