NexAIoT Arm-based HMI | nHMI-10M
10.2" Widescreen TFT HMI with Touchscreen
Merchandise number：79NH010M01X00
Description：
- Rich gallery of symbols and objects
- Use the interface clearly and intuitive
- Develop projects with easy to reach functions and properties
- Support various automation protocols
- Multi-language support
- Allow users to visit anywhere/anytime, anywhere
- Password supports alphanumeric input.
- Panel or VESA 75mm x 75 mm mount, IP65 front bezel
- ESD protection: level 4 (contact discharge 8KV, Air-Gap discharge 15KV), Class A
Download file
-
CPU Support
- TI ARM® Cortex™-A8, Sitara™ AM3352 (1GHz)
Main Memory- 512MB SDRAM

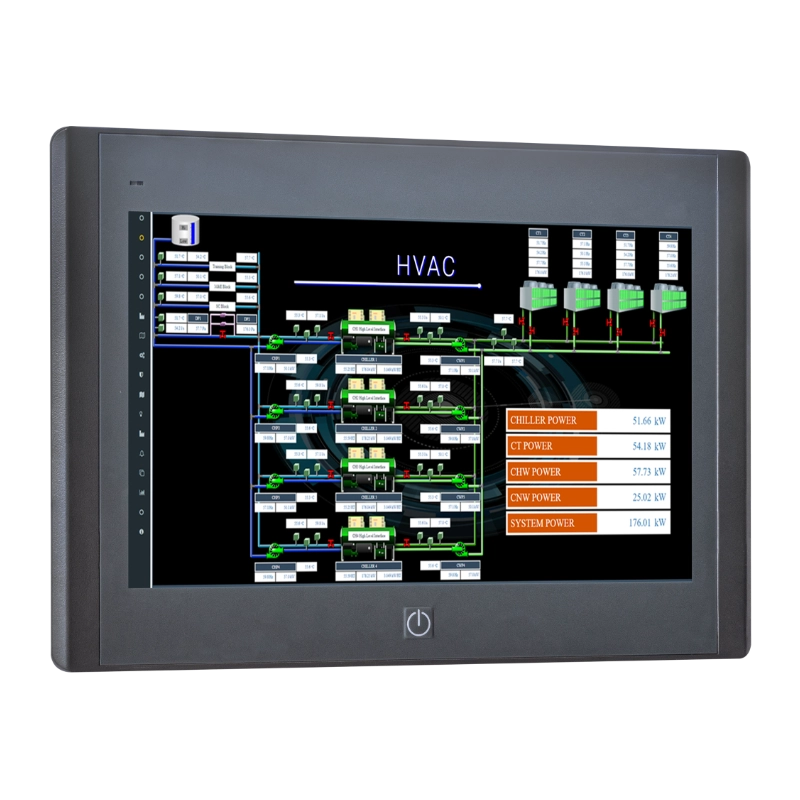

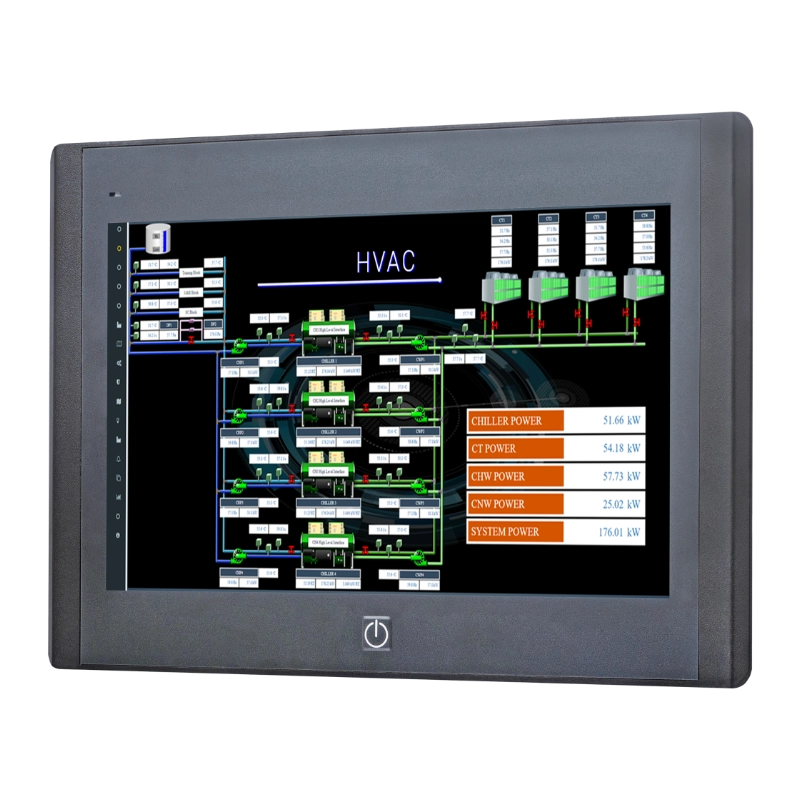

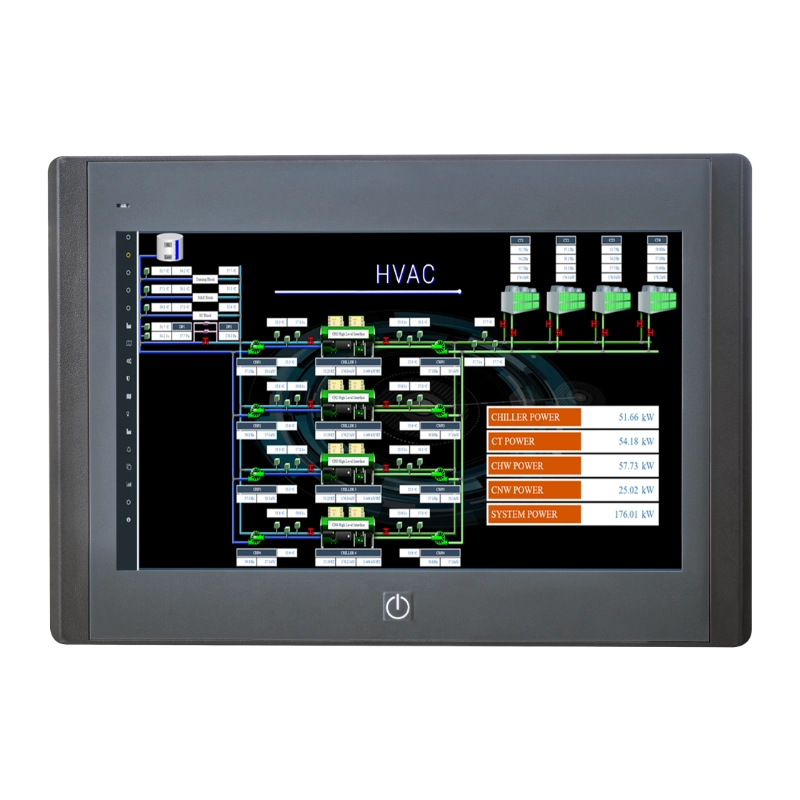

Display- 10.2” TFT, 800 x 480
- Luminance 350 (cd/m²)
- View angle 130/110 (H°/V°)
- Backlight lifetime 20,000 hours
- Contrast ratio 300:1
Net Weight (Kgs)- 1.1 Kg

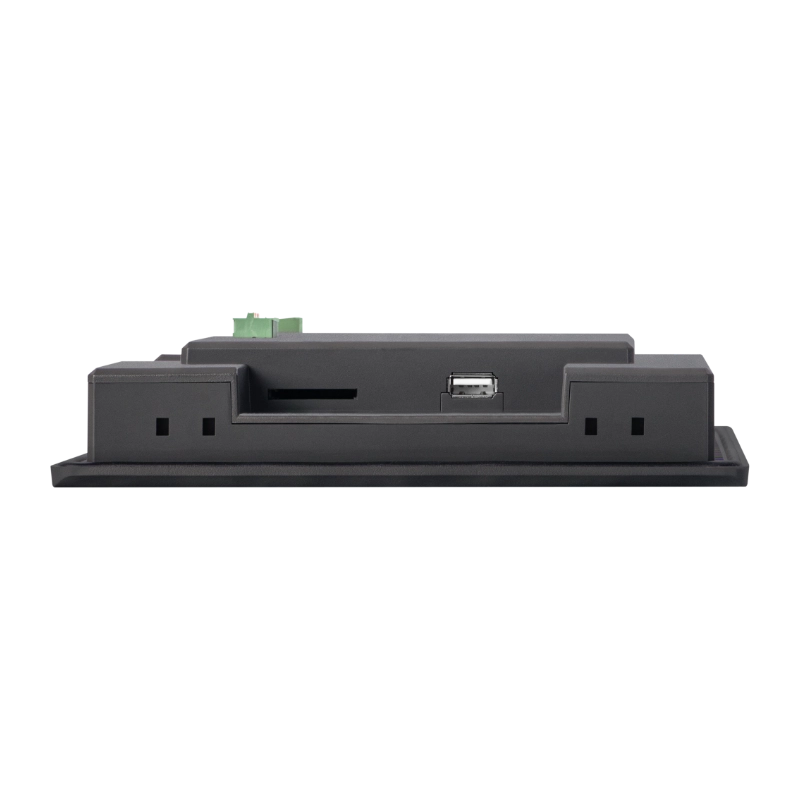

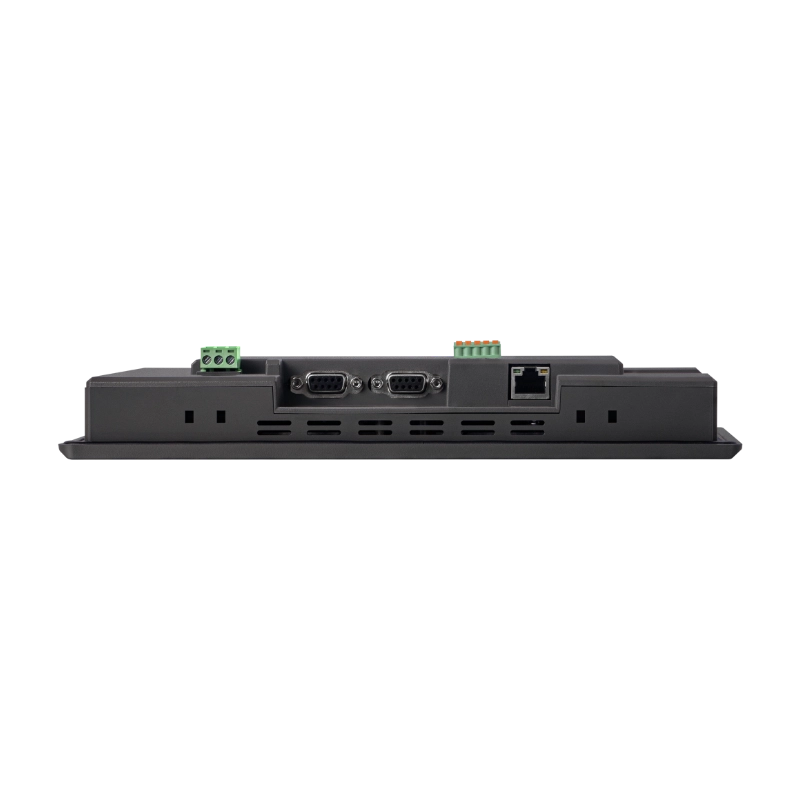

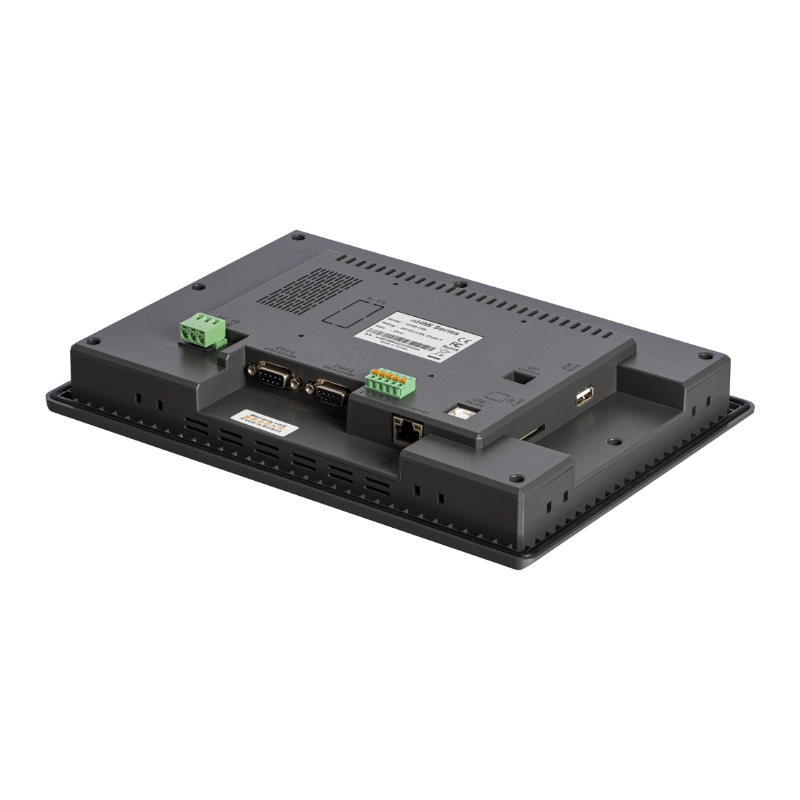

I/O Interface- 1 x USB 2.0 host Type A
- 1 x USB 2.0 device Type B
- 2 x RS232/422/485, COM1, COM2
- 1 x RS232/485, COM3 or CAN Bus (option)
- 1 x 10/100 Mbit Ethernet port or 2 x 10/100 Mbit (option)
- 1 x SD card slot
Touch Screen- 4-wire resistive touch
Power- 19.2 ~ 28.8V Isolated power
Dimensions- 279.5 mm (W) x 39.5 mm (D) x 195.5 mm (H)
Mounting- Panel or VESA 75 mm x 75 mm mount
Cut-out- 260.2 mm(W) x 177.2 mm(H)
Construction- Painted Plastic
Environment- Operating temperature: ambient with air flow: 0°C to 50°C
- Storage temperature: -20°C to 60°C
- Relative humidity: 10% to 90% @ 40°C, (non-condensing)
- SED protection: level 4 (contact Discharge 8KV, Air-Gap discharge 15KV), Class A
Certifications- CE
- FCC
- EN 61000-6-4
- EN 61000-6-2
-
- Own Brand, Own Factory Production, Global Fast Shipping
- Ships within 2 business days after ordering.
- 2-year global warranty.
- 30-day return policy.
- Free shipping.
- For any usage issues after purchase, please feel free to contact us anytime.
- NEXCOM nHMI-10M-Datasheet
-
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
-
Access NEXCOM Industrial Solutions on Our Official Online Channels:
-
SpecificationsCPU Support
- TI ARM® Cortex™-A8, Sitara™ AM3352 (1GHz)
Main Memory- 512MB SDRAM
Display- 10.2” TFT, 800 x 480
- Luminance 350 (cd/m²)
- View angle 130/110 (H°/V°)
- Backlight lifetime 20,000 hours
- Contrast ratio 300:1
Net Weight (Kgs)- 1.1 Kg
I/O Interface- 1 x USB 2.0 host Type A
- 1 x USB 2.0 device Type B
- 2 x RS232/422/485, COM1, COM2
- 1 x RS232/485, COM3 or CAN Bus (option)
- 1 x 10/100 Mbit Ethernet port or 2 x 10/100 Mbit (option)
- 1 x SD card slot
Touch Screen- 4-wire resistive touch
Power- 19.2 ~ 28.8V Isolated power
Dimensions- 279.5 mm (W) x 39.5 mm (D) x 195.5 mm (H)
Mounting- Panel or VESA 75 mm x 75 mm mount
Cut-out- 260.2 mm(W) x 177.2 mm(H)
Construction- Painted Plastic
Environment- Operating temperature: ambient with air flow: 0°C to 50°C
- Storage temperature: -20°C to 60°C
- Relative humidity: 10% to 90% @ 40°C, (non-condensing)
- SED protection: level 4 (contact Discharge 8KV, Air-Gap discharge 15KV), Class A
Certifications- CE
- FCC
- EN 61000-6-4
- EN 61000-6-2
-
After-sales service
- Own Brand, Own Factory Production, Global Fast Shipping
- Ships within 2 business days after ordering.
- 2-year global warranty.
- 30-day return policy.
- Free shipping.
- For any usage issues after purchase, please feel free to contact us anytime.
-
Download
-
Contact Us
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
-
Online ShoppingAccess NEXCOM Industrial Solutions on Our Official Online Channels:
NEXCCOM nHMI-10M Arm-based HMI
nHMI-10M — Smart Control at Your Fingertips
The nHMI-10M is a compact yet powerful 10.2” Arm-based Human Machine Interface (HMI) designed for industrial automation applications. Equipped with a TI ARM® Cortex™-A8 Sitara™ AM3352 processor running at 1GHz and 512MB SDRAM, it delivers responsive performance for real-time control and monitoring. The 10.2” TFT touchscreen offers 800x480 resolution, 350 cd/m² brightness, and a 4-wire resistive touch panel, all housed in a front IP65-rated enclosure for durability. Supporting multiple industrial communication protocols, versatile I/O options (including USB, COM ports, CAN Bus option, Ethernet), multi-language UI, and secure password protection, the nHMI-10M enables flexible deployment in harsh environments with panel or VESA mounting, making it an ideal solution for modern IoT-enabled automation systems.
01
Powerful Processing Core
The nHMI-10M is powered by a TI ARM® Cortex™-A8 Sitara™ AM3352 1GHz processor with 512MB SDRAM, delivering smooth and reliable performance for real-time monitoring and complex industrial automation tasks, ensuring fast and responsive system operation.02
Versatile Communication Interfaces
Equipped with USB 2.0, multiple RS232/422/485 ports, optional CAN Bus, and 10/100 Mbps Ethernet, the device supports a wide range of industrial protocols. This flexibility allows seamless integration with existing equipment and IoT platforms, enhancing connectivity and scalability on the factory floor.03
Durable Design and User-Friendly Operation
Featuring an IP65-rated front bezel and a 10.2-inch 800x480 resolution touchscreen, the nHMI-10M offers excellent durability and anti-interference protection. Its multi-language interface and secure password support provide an intuitive and safe user experience, ideal for demanding industrial environments.05
