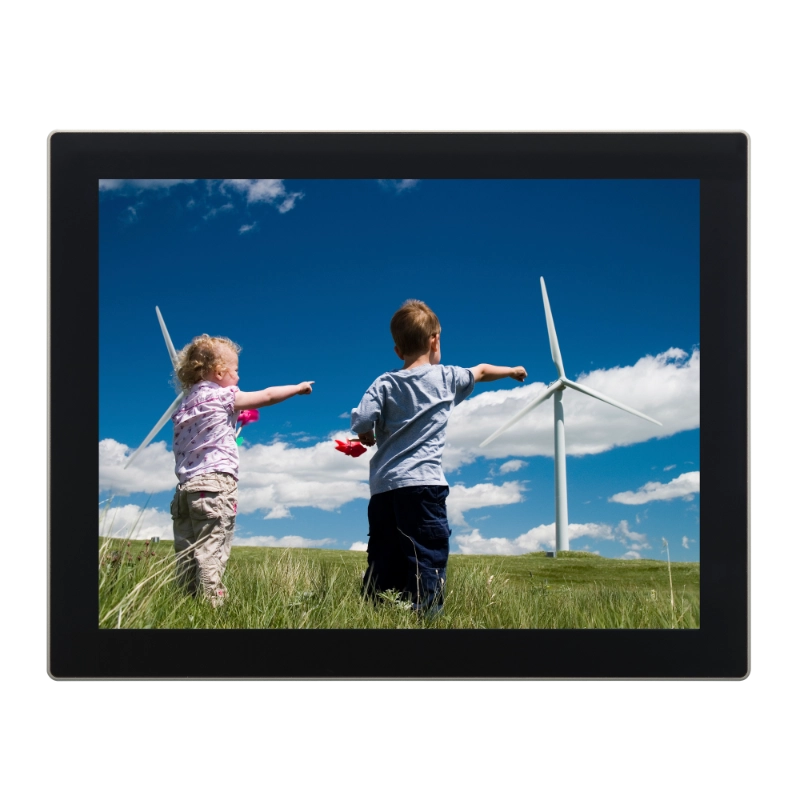

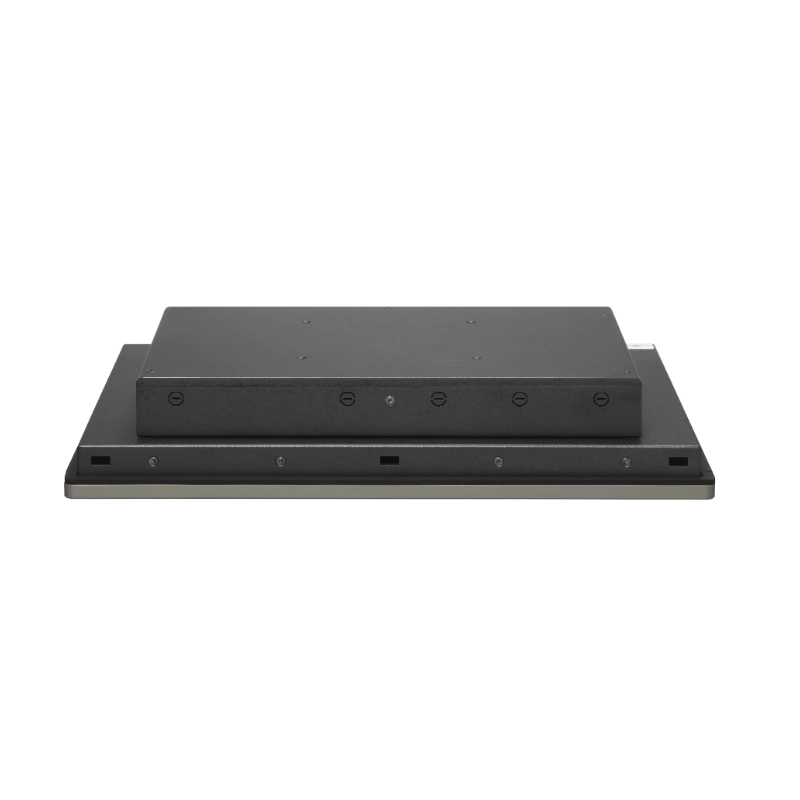

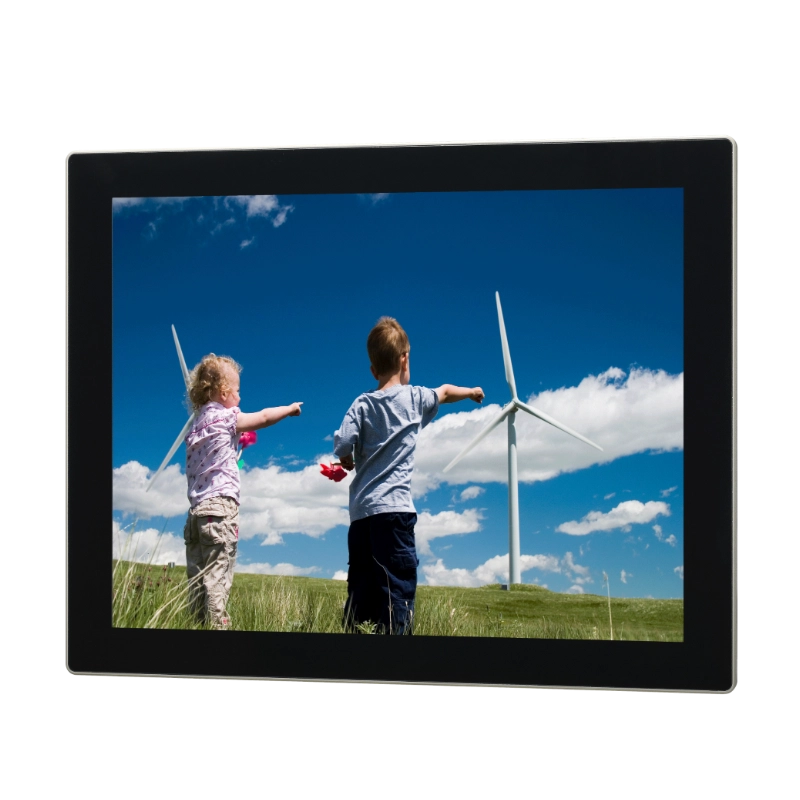

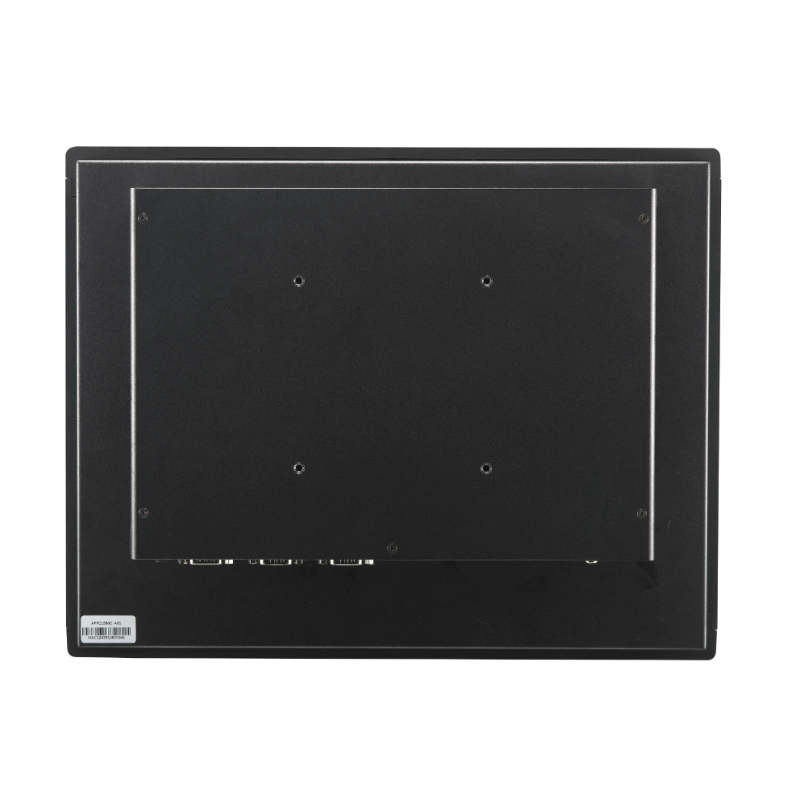

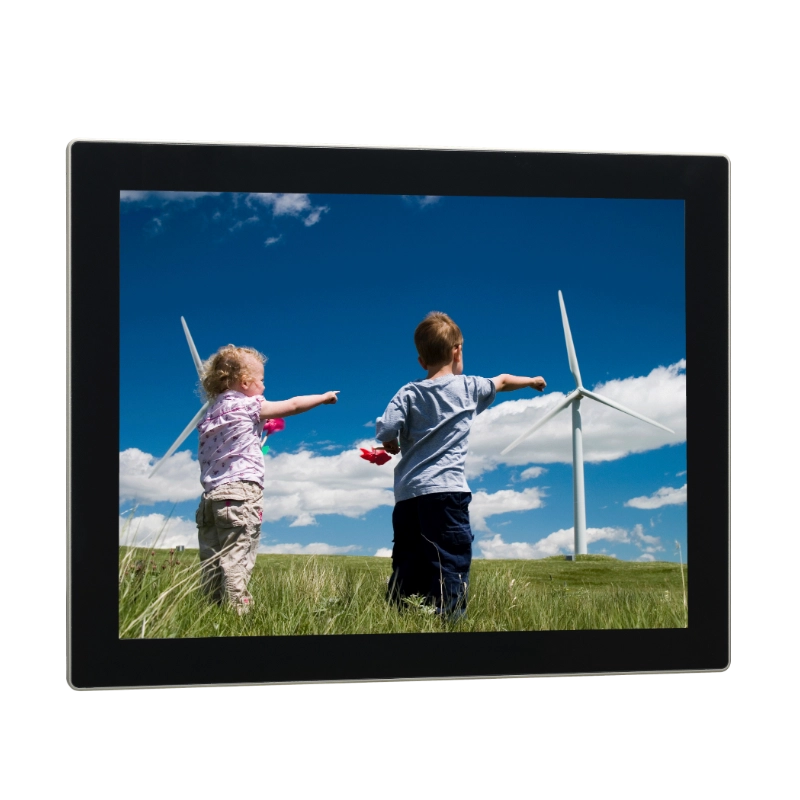

NexAIoT 工業觸控電腦 | APPC 1560-A01
15" 無風扇觸控式電腦， 搭載 Intel® N97 處理器
商品編號：10IA1560C01XE
商品簡述：
- 4:3 15 吋電阻式觸控螢幕電腦
- Intel® N97 處理器
- 1x 8GB DDR5-4800MHz
- 支援三顯 DP, USB-C (DP Alt. mode)
- 2x Intel® 2.5GbE LAN
- 支援 VESA 相容規格(100mm x 100mm)
檔案下載
-
Panel
- LCD size: 15”, 4:3
- Resolution: XGA 1024 x 768
- Luminance: 350cd/m²
- Contrast ratio: 1000:1
- LCD Color: 16.7M
- Viewing angle: 89 (U), 89 (D), 89 (L), 89 (R)
- Backlight: LED
Touch- 5-wire resistive (flush panel type)
- Light transmission: 80%
- Interface: USB
System- CPU: Onboard Alder Lake N Intel® processor N97
- BIOS: AMI BIOS
- Support TPM2.0
- System memory: 1 x DDR5 4800 SO-DIMM INNODISK 8GB
- Storage device
- M.2 2242 SATAIII INNODISK 128GB 3D TLC T:-0~70°C
Rear I/O interface- Power button
- 1 x 2-pin remote power on/off Terminal Block
- 24V DC input with 3-pins Terminal Block
- 2 x USB 3.2 Type A
- Ethernet: 2 x RJ45
- 1 x DP1.4a (up to 4K@60Hz)
- 1 x USB Type C (Support USB 3.2 / DP1.4a Alt. mode, up to 4K@60Hz)
- DB9 for COM1 & COM2
- COM1: RS232/422/485 auto flow control
- COM2: RS232/422/485 auto flow control - 1 x DB9 for RS232 support
- 1 x Line-out
Ethernet- LAN chip: dual Intel® I226-IT Gigabit LAN
- Ethernet interface: 10/100/1000/2500Base-T Ethernet compatible
- Support WoL and PXE
Audio- HD audio codec: Realtek ALC888S-VD
- Audio interface: Line-out
Internal Slot- 1 x mini-PCIe (PCIe x1, USB 2.0, SIM) for Wi-Fi/FBI/LTE
- 1 x M.2 2242 Key B (SATA) for storage
- 1 x M.2 2230/3042/3052 Key B (PCIe x1, USB 3.0, USB 2.0, SIM) for 5G/LTE
- 1 x nano SIM card slot onboard
- 1 x USB 2.0 Type A
Mechanical & Environment- Color: Pantone 400C\RAL 090 80 10 aluminum front bezel and black silver PC box
- IP protection: IP65 front
- Mounting: panel/wall/stand/VESA 100mm x 100mm
- Power:
- Power input: 24V DC ± 20%
- AT/ATX power mode (default: ATX power mode)
- Power adapter: optional AC to DC power adapter (24V DC, 60W) - Vibration:
- 2G@sine, 5-500Hz, 1hr/axis (M.2 operating), IEC60068-2-64
- 2Grms@random condition, 5-500Hz, 1hr/axis (non-operating), IEC60068-2-64 - Shock:
- 20G@wall mount, half sine, 11ms, IEC60068-2-27 - Temperature:
- Operating temperature: 0°C to 50°C (ambient with air flow)
- Storage temperature: -20°C to 75°C - Operating humidity: 10% to 90%, non-condensing (limits to be at 90% RH at max 50°C)
- Dimension: 358.1 x 281.1 x 62.35 mm
- Weight: 4.6kg
Certifications- CE approval (EN55032, EN55035)
- FCC Class A
OS Installed- Win11 IoT Enterprise 2024 LTSC MultiLang ESD Entry
-
• 自有品牌．自有工廠生產．全球快速配送
• 訂購後將於2個工作日內出貨。
• 產品全球2年無條件保固。
• 30天無條件退貨。
• 免運費。
• 購買後有任何使用問題皆可隨時聯絡。 - NEXCOM APPC 1560-A01 Datasheet
- NEXCOM AIoT Mart 客服信箱：ecommerce@nexcom.com.tw
-
產品規格Panel
- LCD size: 15”, 4:3
- Resolution: XGA 1024 x 768
- Luminance: 350cd/m²
- Contrast ratio: 1000:1
- LCD Color: 16.7M
- Viewing angle: 89 (U), 89 (D), 89 (L), 89 (R)
- Backlight: LED
Touch- 5-wire resistive (flush panel type)
- Light transmission: 80%
- Interface: USB
System- CPU: Onboard Alder Lake N Intel® processor N97
- BIOS: AMI BIOS
- Support TPM2.0
- System memory: 1 x DDR5 4800 SO-DIMM INNODISK 8GB
- Storage device
- M.2 2242 SATAIII INNODISK 128GB 3D TLC T:-0~70°C
Rear I/O interface- Power button
- 1 x 2-pin remote power on/off Terminal Block
- 24V DC input with 3-pins Terminal Block
- 2 x USB 3.2 Type A
- Ethernet: 2 x RJ45
- 1 x DP1.4a (up to 4K@60Hz)
- 1 x USB Type C (Support USB 3.2 / DP1.4a Alt. mode, up to 4K@60Hz)
- DB9 for COM1 & COM2
- COM1: RS232/422/485 auto flow control
- COM2: RS232/422/485 auto flow control - 1 x DB9 for RS232 support
- 1 x Line-out
Ethernet- LAN chip: dual Intel® I226-IT Gigabit LAN
- Ethernet interface: 10/100/1000/2500Base-T Ethernet compatible
- Support WoL and PXE
Audio- HD audio codec: Realtek ALC888S-VD
- Audio interface: Line-out
Internal Slot- 1 x mini-PCIe (PCIe x1, USB 2.0, SIM) for Wi-Fi/FBI/LTE
- 1 x M.2 2242 Key B (SATA) for storage
- 1 x M.2 2230/3042/3052 Key B (PCIe x1, USB 3.0, USB 2.0, SIM) for 5G/LTE
- 1 x nano SIM card slot onboard
- 1 x USB 2.0 Type A
Mechanical & Environment- Color: Pantone 400C\RAL 090 80 10 aluminum front bezel and black silver PC box
- IP protection: IP65 front
- Mounting: panel/wall/stand/VESA 100mm x 100mm
- Power:
- Power input: 24V DC ± 20%
- AT/ATX power mode (default: ATX power mode)
- Power adapter: optional AC to DC power adapter (24V DC, 60W) - Vibration:
- 2G@sine, 5-500Hz, 1hr/axis (M.2 operating), IEC60068-2-64
- 2Grms@random condition, 5-500Hz, 1hr/axis (non-operating), IEC60068-2-64 - Shock:
- 20G@wall mount, half sine, 11ms, IEC60068-2-27 - Temperature:
- Operating temperature: 0°C to 50°C (ambient with air flow)
- Storage temperature: -20°C to 75°C - Operating humidity: 10% to 90%, non-condensing (limits to be at 90% RH at max 50°C)
- Dimension: 358.1 x 281.1 x 62.35 mm
- Weight: 4.6kg
Certifications- CE approval (EN55032, EN55035)
- FCC Class A
OS Installed- Win11 IoT Enterprise 2024 LTSC MultiLang ESD Entry
-
售後服務• 自有品牌．自有工廠生產．全球快速配送
• 訂購後將於2個工作日內出貨。
• 產品全球2年無條件保固。
• 30天無條件退貨。
• 免運費。
• 購買後有任何使用問題皆可隨時聯絡。 -
資料下載
-
聯絡客服NEXCOM AIoT Mart 客服信箱：ecommerce@nexcom.com.tw
-
線上購買
NEXCOM APPC 1560-A01 工業觸控電腦
APPC1560-A01 為 15 吋 XGA 無風扇窄邊框設計觸控電腦， 採用 Intel Alder Lake-N 系列處理器，APPC 1560-A01 的前面板符合IP65標準，使其成為要求嚴格的工業環境的理想解決方案。 APPC1560-A01 支援雙 2.5GbE 連接器，可實現超快的資料傳輸速率和可靠的網路效能， 該系統配備用於多顯示器的 DP 和 USB-C (DP Alt. Mode). Mini PCIe 和 M.2 插槽可支援 Wi-Fi/LTE/5G 模組及用於儲存的 M.2 SATA 2242 Key B 和兩個用於各種工業設備整合的可調節 RS232/422/482。 APPC 1560-A01 非常適合整合到通用工業設備中, 提供可靠的性能和廣泛的連接選項。
01
高效能低功耗，專為工業應用打造
APPC 1560-A01 採用 Intel® Alder Lake-N N97 處理器，搭配 DDR5 記憶體，提供高效能運算與低功耗設計。無論是生產線控制、資料收集，還是智慧製造場域的運算需求，都能穩定應對，確保設備長時間運行不中斷。
02
強大連接能力，滿足智慧工廠需求
配備雙 Intel® 2.5GbE 網路埠，支援超高速傳輸及可靠連線，並具備 DP 與 USB-C 三重顯示輸出，方便多螢幕監控。豐富 I/O 包含可調整的 RS232/422/485 介面，能靈活整合各類工業設備，讓智慧工廠佈署更具彈性。
03
堅固耐用設計，嚴苛環境最佳選擇
前面板通過 IP65 防護，防塵防潑水，搭配無風扇設計，有效降低維護成本。支援 VESA 與多種安裝方式，適用於工廠、倉儲、交通等惡劣環境。APPC 1560-A01 以可靠性為核心，成為各產業長期投資的安心選擇。
