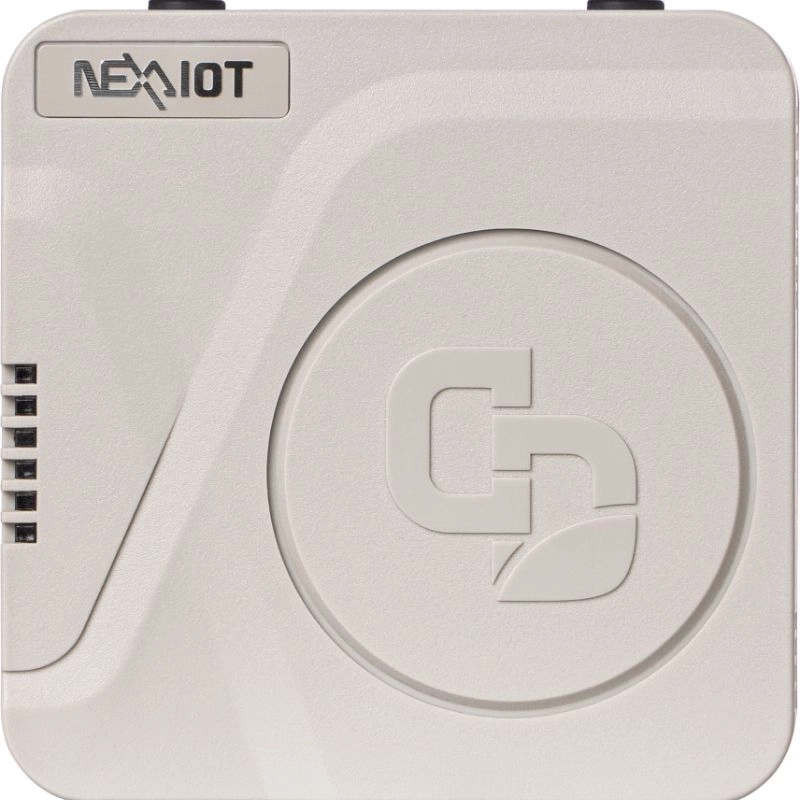

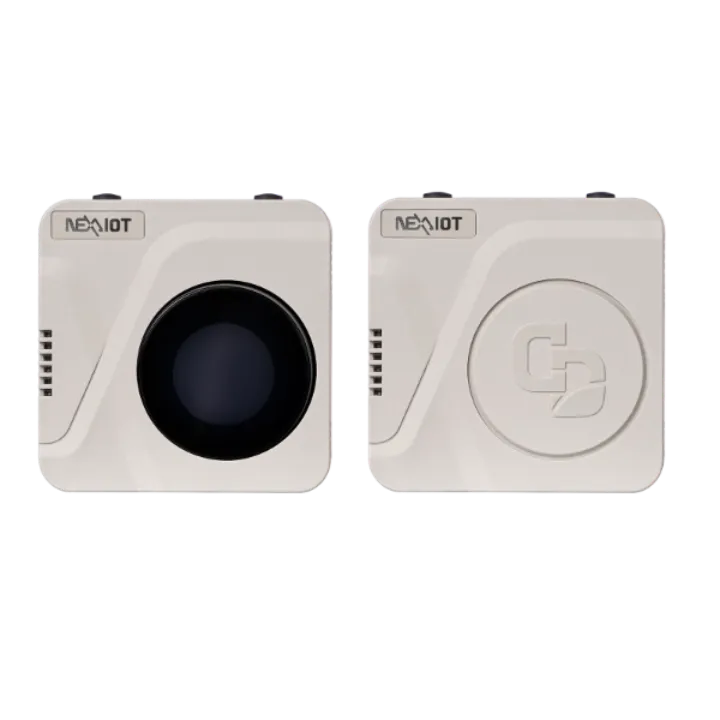

NEXCOM Remote Data Acquisition System | nDAS6000 Series
NexAIoT Data Acquisition System
Merchandise number：10ND0601700X0
Description：
- Remote management
- Remote application
- Application domain
- Industrial protocols are required
- Real-time data and status are required
- Remote monitoring and control based on HTML5
- Rich protocols and communications support
- Daisy-Chain networking and RS-485
- Data storage and cloud storage
- Data to cloud and Situation room
- Users can develop their own functions

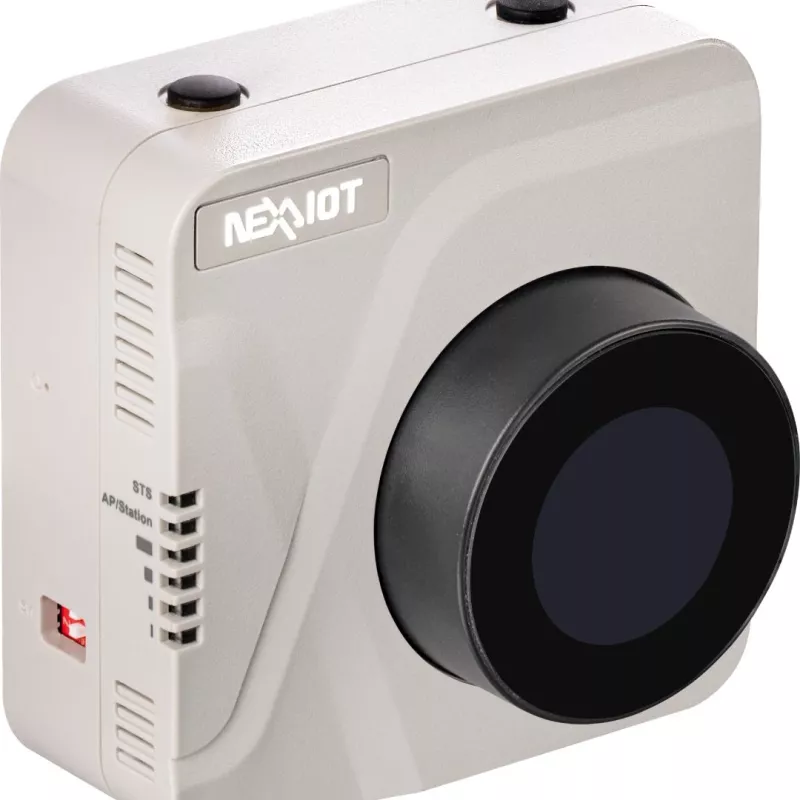

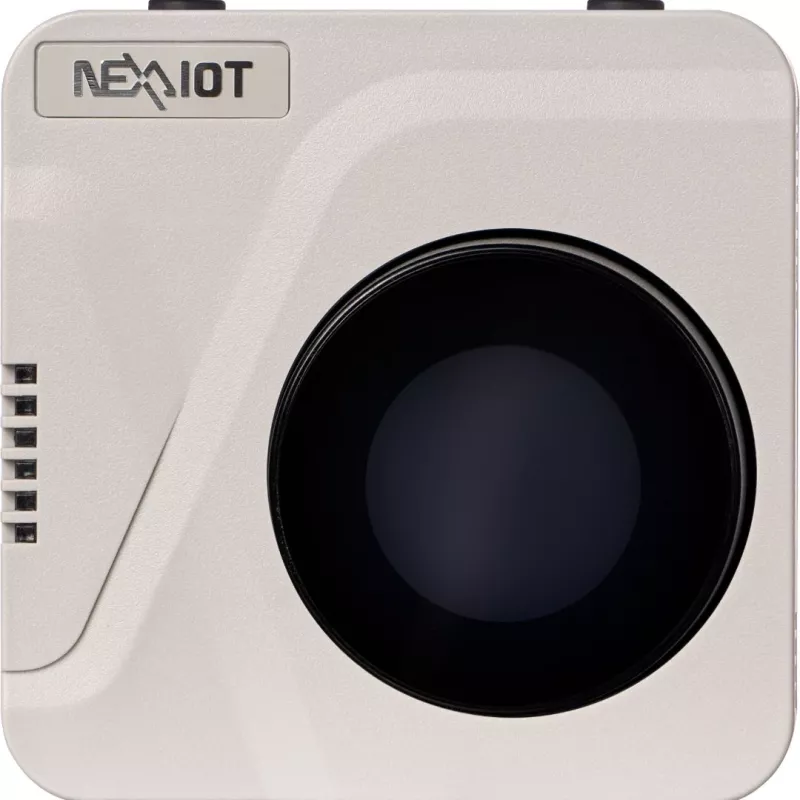

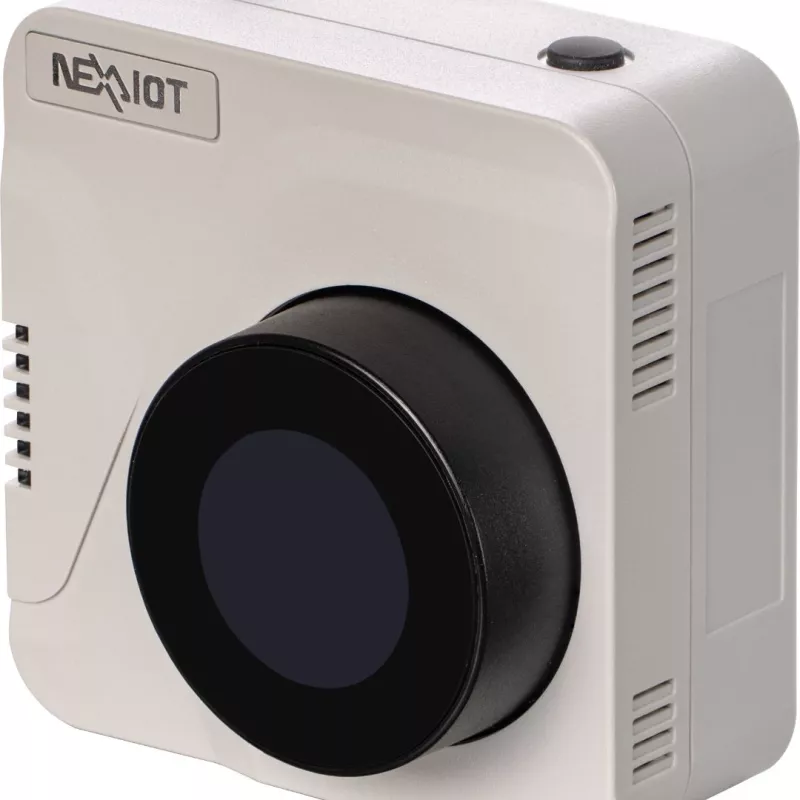

- Customized OLED menu
- Broadcast update
-
Power
- DC 9~30V
Watchdog- Timer 1~255sec, by SW control
Environment- Operating temperature: Ambient with air flow:
- -25°C to 70°C
- 0°C to 50°C (with OLED or WI-FI module) - Storage temperature: -40°C to 85°C
- Relative humidity: 95 %, no condensing
- EMI: class A
- ESD immunity: contact +-5KV/Air +-9KV
Net Weight (Kgs)- 0.4 Kg
Dimensions- 90 mm(W) x 38.7 mm(D) x 90 mm(M)
Mounting- DIN rail mount
Certifications- CE
- EN 61326 1
- EN 61000 6-2
- EN 61000 6-4
- EN 61131 2 - FCC
-
- Own Brand, Own Factory Production, Global Fast Shipping
- Ships within 2 business days after ordering.
- 2-year global warranty.
- 30-day return policy.
- Free shipping.
- For any usage issues after purchase, please feel free to contact us anytime.
- NEXCOM nDAS-6000-Series-Datasheet
-
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
-
SpecificationsPower
- DC 9~30V
Watchdog- Timer 1~255sec, by SW control
Environment- Operating temperature: Ambient with air flow:
- -25°C to 70°C
- 0°C to 50°C (with OLED or WI-FI module) - Storage temperature: -40°C to 85°C
- Relative humidity: 95 %, no condensing
- EMI: class A
- ESD immunity: contact +-5KV/Air +-9KV
Net Weight (Kgs)- 0.4 Kg
Dimensions- 90 mm(W) x 38.7 mm(D) x 90 mm(M)
Mounting- DIN rail mount
Certifications- CE
- EN 61326 1
- EN 61000 6-2
- EN 61000 6-4
- EN 61131 2 - FCC
-
After-sales service
- Own Brand, Own Factory Production, Global Fast Shipping
- Ships within 2 business days after ordering.
- 2-year global warranty.
- 30-day return policy.
- Free shipping.
- For any usage issues after purchase, please feel free to contact us anytime.
-
Download
-
Contact Us
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
-
Online Shopping
NEXCCOM nDAS 6000 Series Data Acquisition System
Empower Industrial Intelligence Seamlessly

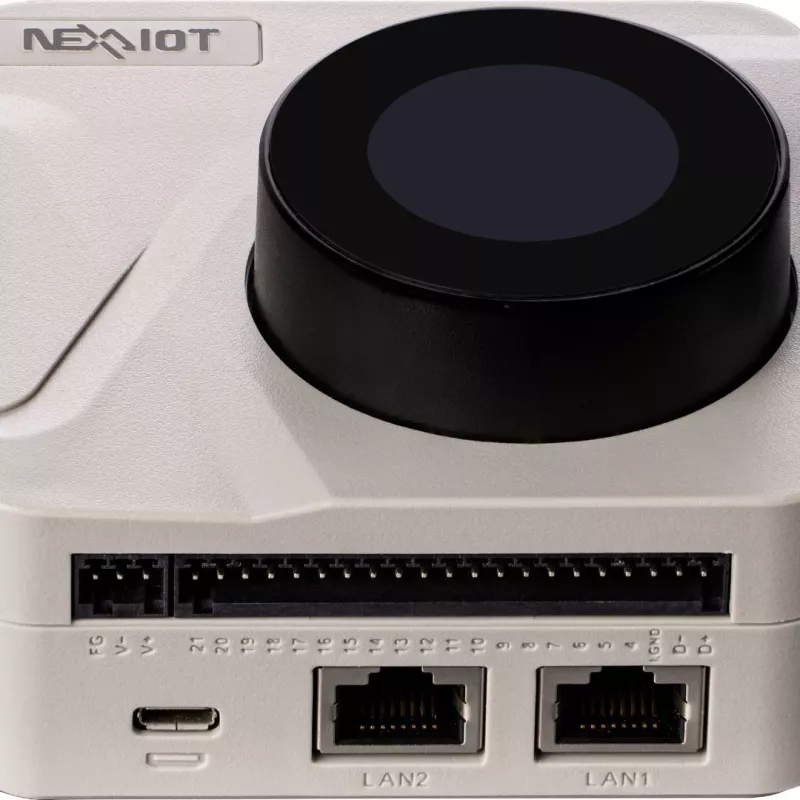

The nDAS 6000 Series from NEXCOM is a high-performance remote data acquisition module designed to streamline industrial automation and IIoT applications. Featuring 16-channel digital input with isolation protection and wide voltage support, it ensures reliable data collection even in harsh factory environments. Supporting Modbus RTU/TCP, REST API, OPCUA, and other major industrial protocols, it seamlessly integrates with SCADA systems and cloud platforms like AWS, Azure, and Google Drive. Built for edge intelligence, the nDAS 6000 Series offers local data logging, cloud sync, and programmable logic via VIC-Flow. With DIN-rail mounting, rugged -25°C to 70°C operating range, and support for dual-LAN, RS-485, and optional Wi-Fi, it’s the ideal compact gateway for scalable, future-proof Industrial PC, smart factory, and energy management deployments. A dependable alternative to legacy remote I/O and data acquisition systems, the nDAS 6000 Series helps industrial users boost efficiency and visibility across distributed assets.
01
Flexible Gateway for Remote Applications
The nDAS6000 Series is a versatile data acquisition gateway designed to simplify remote management and real-time monitoring. Without built-in I/O, it serves as a reliable bridge for various industrial communication protocols, ensuring seamless data exchange across connected systems. With support for HTML5-based remote monitoring and control, it enables users to access and operate devices anytime, anywhere.02
Diverse Industrial Applications
With rich protocol support and daisy-chain networking through RS-485, the nDAS6000 Series is widely applicable in domains such as energy management, HVAC & AQUA, and factory automation. For example, in a smart energy monitoring system, it can collect device status in real time, transmit data securely to the cloud, and provide visualization in a control room. This ensures operators can make quick and accurate decisions, enhancing overall efficiency.03
Optimized Design for User Development
The nDAS6000 Series not only supports data storage and cloud integration, but also allows users to develop customized functions tailored to specific needs. With its broadcast update function and intuitive settings, the device is built to deliver both convenience and adaptability. This makes it an ideal solution for enterprises seeking scalable and user-friendly industrial data acquisition platforms.04
