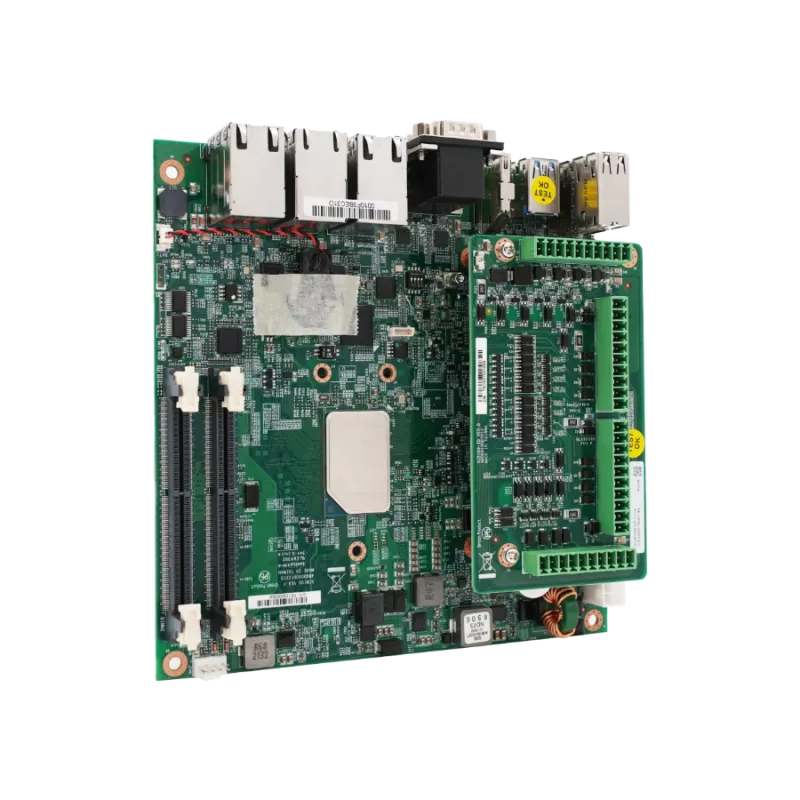

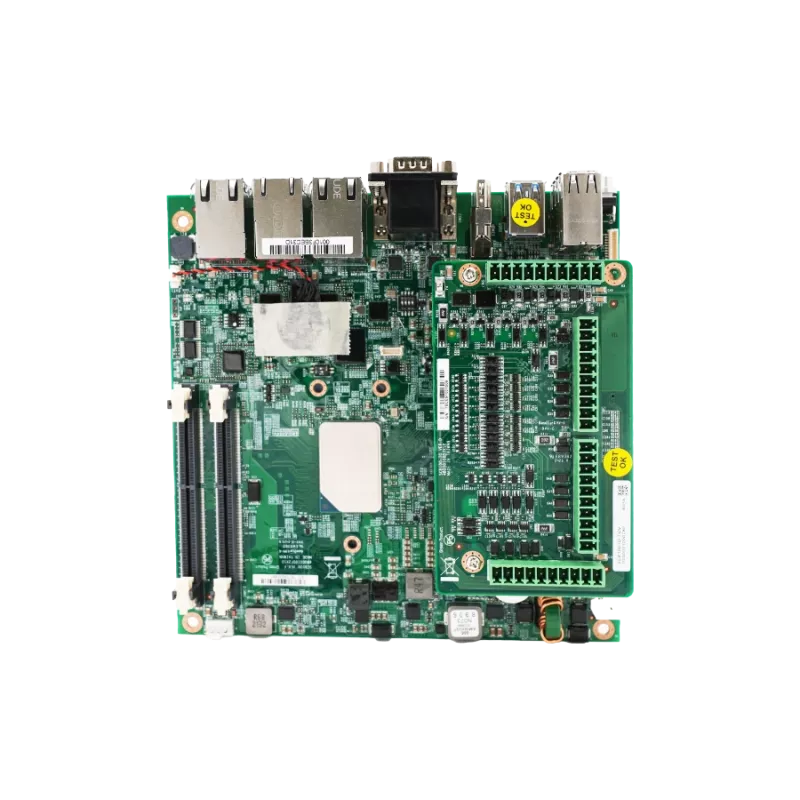

NexCOBOT Mini-ITX Motherboard | SCB100

X86 Functional Safety Development Platform

Merchandise number：10Q00010007X0

Discounted price:US$
Sale US$
MSRP US$
Use bonus pointspt.

Description：

Mini-ITX Form Factor
Intel Atom^® x6427FE Processor
On board EtherCAT Slave Controller
SIL 2/HFT = 0, Cat.3 PL d Certified
On board isolated 12IN/4OUT Safety Digital I/O

Download file

Spec.

Functional Safety Certified
- SIL 2, HFT=0 according to IEC 61508
- PL=d, Cat.3, according to ISO 13849-1
Main Memory
- 2 x DDR4 SO-DIMM, support up to 32GB(Support IBECC)
- Tested with Innodisk DDR4 3200 SO-DIMM 16G
EtherCAT Slave Controller
- Provide EtherCAT Slave Stack Sample Source Code
Storage (To save the Safe Data)
- 1 x On board EMMC 64G
Expansion Slots
- 1 x Mini PCIe
On board safety digital I/O
- 12IN/4OUT, Isolated, 24VDC
Dimensions
- 170 x 170 mm
CPU
- Intel Atom® x6427FE Processor, 1.9GHz
- SIL 2, HFT=0 pre-certified CPU
Display
- 1 x HDMI display

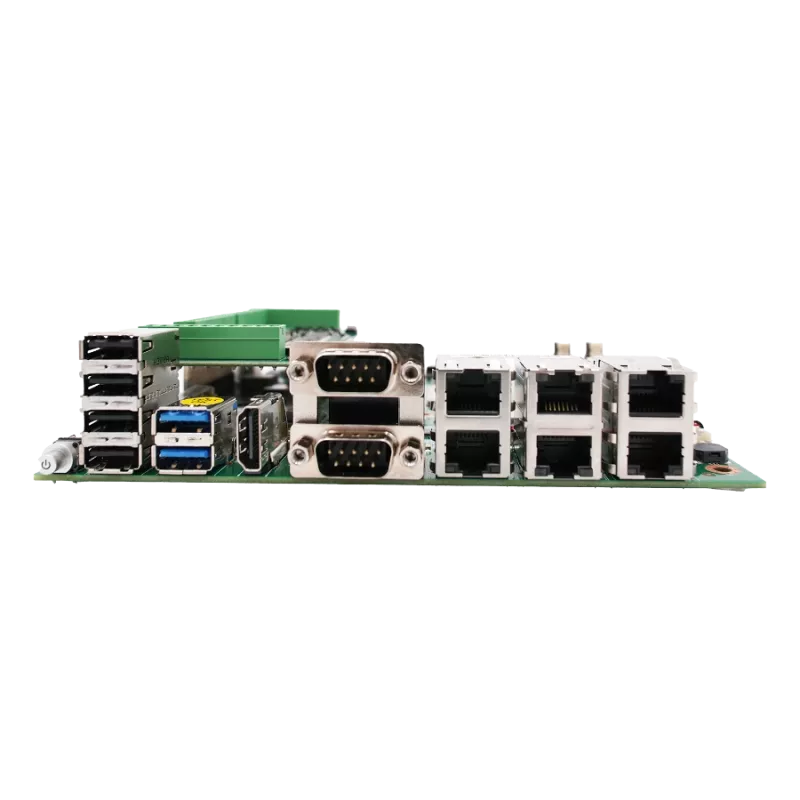

I/O Interface-Rear
- 2 x DB9 for RS232/422/485 (Auto flow control)
- 1 x HDMI
- 2 x USB 3.0 , 4 x USB 2.0
- 4 x LAN Port
- 2 x EtherCAT slave port (RJ45 for IN/OUT)
Power Requirements
- Power input:24V 5A, -15%~+20%, acc. to IEC 61131-2
- Support AT/ ATX mode
Safety Collateral
- Intel Elkhart Lake CPU Safety Collateral
- SCB 100 Safety Manual
- SCB 100 FMEDA report
Environment
- Operation Temperature: -20°C to : 60°C
- Storage temperature: -40°C to : 85°C
Relative humidity
- 10% to 90% (operating, non-condensing)
  5% to 90% (non-operating, non-condensing)
Certifications
- CE / FCC (EN61000-6-4 / EN61000-6-2)
- Functional Safety (IEC 61508, ISO 13849)
OS Support List
- Pike OS (Safety OS, provided by SYSGO)
- Reference OS: Linux Yocto (non-Safety OS, provided by NexCOBOT)
BSP
- PikeOS BSP for SCB 100 (Provided by SYSGO)
- Linux Yocto OS BSP for SCB 100 (Provided by NexCOBOT)
Intel safety software components (Integrated in BSP)
- OSAL (OS Adaption Layer)
- Safety Monitoring Communication Library
- STL (Software Test Library)
- Own Brand, Own Factory Production, Global Fast Shipping
- Ships within 2 business days after ordering.
- 2-year global warranty.
- 30-day return policy.
- Free shipping.
- For any usage issues after purchase, please feel free to contact us anytime.
NexCOBOT SCB100 Datasheet
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Access NEXCOM Industrial Solutions on Our Official Online Channels:

Specifications
Functional Safety Certified

SIL 2, HFT=0 according to IEC 61508

PL=d, Cat.3, according to ISO 13849-1
Main Memory

2 x DDR4 SO-DIMM, support up to 32GB(Support IBECC)

Tested with Innodisk DDR4 3200 SO-DIMM 16G
EtherCAT Slave Controller

Provide EtherCAT Slave Stack Sample Source Code
Storage (To save the Safe Data)

1 x On board EMMC 64G
Expansion Slots

1 x Mini PCIe
On board safety digital I/O

12IN/4OUT, Isolated, 24VDC
Dimensions

170 x 170 mm
CPU

Intel Atom® x6427FE Processor, 1.9GHz

SIL 2, HFT=0 pre-certified CPU
Display

1 x HDMI display
I/O Interface-Rear

2 x DB9 for RS232/422/485 (Auto flow control)

1 x HDMI

2 x USB 3.0 , 4 x USB 2.0

4 x LAN Port

2 x EtherCAT slave port (RJ45 for IN/OUT)
Power Requirements

Power input:24V 5A, -15%~+20%, acc. to IEC 61131-2

Support AT/ ATX mode
Safety Collateral

Intel Elkhart Lake CPU Safety Collateral

SCB 100 Safety Manual

SCB 100 FMEDA report
Environment

Operation Temperature: -20°C to : 60°C

Storage temperature: -40°C to : 85°C
Relative humidity

10% to 90% (operating, non-condensing)
5% to 90% (non-operating, non-condensing)
Certifications

CE / FCC (EN61000-6-4 / EN61000-6-2)

Functional Safety (IEC 61508, ISO 13849)
OS Support List

Pike OS (Safety OS, provided by SYSGO)

Reference OS: Linux Yocto (non-Safety OS, provided by NexCOBOT)
BSP

PikeOS BSP for SCB 100 (Provided by SYSGO)

Linux Yocto OS BSP for SCB 100 (Provided by NexCOBOT)
Intel safety software components (Integrated in BSP)

OSAL (OS Adaption Layer)

Safety Monitoring Communication Library

STL (Software Test Library)
After-sales service
- Own Brand, Own Factory Production, Global Fast Shipping
- Ships within 2 business days after ordering.
- 2-year global warranty.
- 30-day return policy.
- Free shipping.
- For any usage issues after purchase, please feel free to contact us anytime.
Download

NexCOBOT SCB100 Datasheet
Contact Us
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Online Shopping

Access NEXCOM Industrial Solutions on Our Official Online Channels:

NexCOBOT SCB100

NexCOBOT’s SCB 100 (Safety Control Board ) is a MiniITX board with functional safety compatibility. It supports I/Os and interfaces needed as a controller platform to build robotic control and motion control systems. Moreover, it is designed to comply with functional safety standard and provides safety-related features such as safety I/O and extra EtherCAT slave ports. Robotic control and safety control can all be implemented with SCB 100 alone to simply system architecture.

Safety-Critical Intelligence. Engineered on x86.

Meet the SCB100 — an x86 Functional Safety Development Platform purpose-built for next-generation industrial and robotic systems. Designed in a compact Mini-ITX form factor, the SCB100 supports the latest Intel® Core™ processors (13th Gen, 12th Gen), delivering deterministic performance for safety-related computing. From motion control to real-time monitoring, it provides a robust foundation for developers building IEC 61508–aligned functional safety applications with confidence and scalability.

Certified-Ready Architecture. Built for Integration

The SCB100 is designed to accelerate functional safety system development and validation. Its safety-oriented architecture supports redundancy design, fault detection mechanisms, and real-time communication, making it ideal for robotic controllers, safety PLC development, and industrial automation platforms. With rich industrial I/O expandability and x86 software compatibility, the SCB100 seamlessly integrates with existing development environments, reducing engineering effort while ensuring compliance with stringent safety requirements.

Compact. Deterministic. Industrial-Grade

Engineered for industrial deployment, the SCB100 combines a space-efficient Mini-ITX layout with stable long-term availability and industrial-grade reliability. It is optimized for continuous operation in demanding environments, supporting wide-voltage DC input and secure system design for safety-critical use cases. More than a development board, the SCB100 is a future-ready platform that bridges functional safety, performance computing, and industrial system design.
