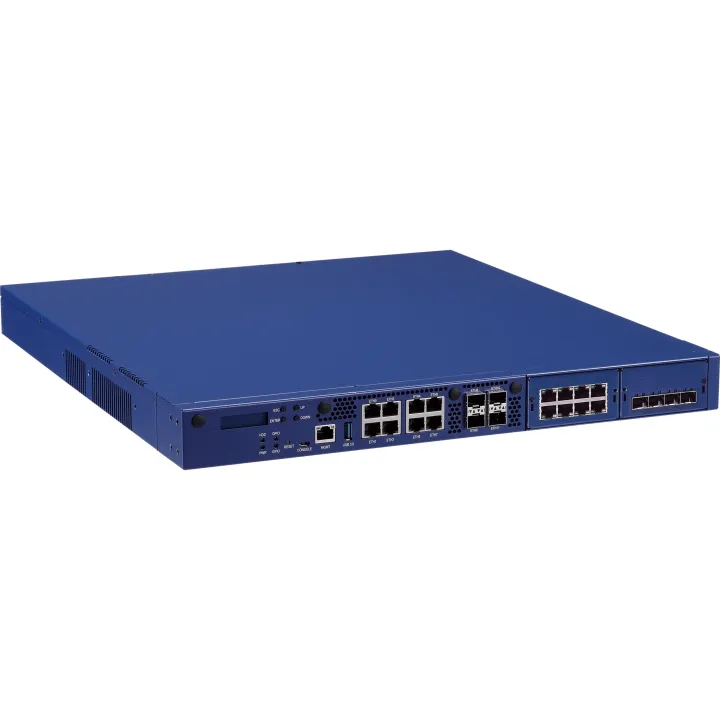

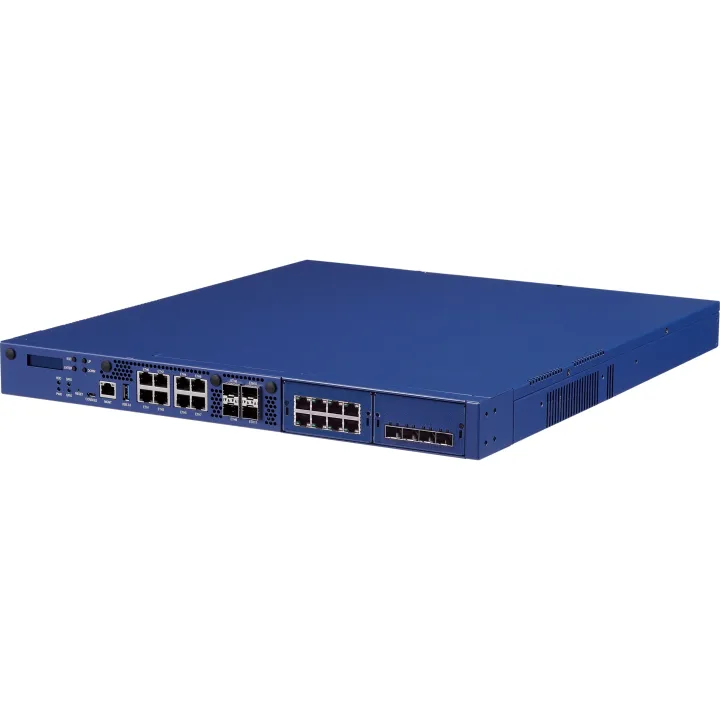

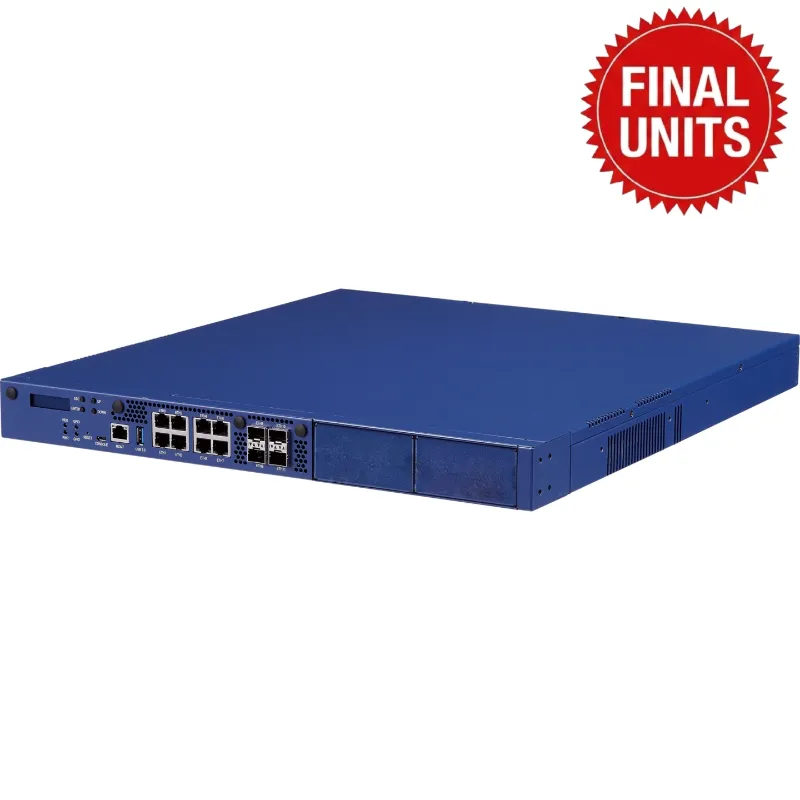

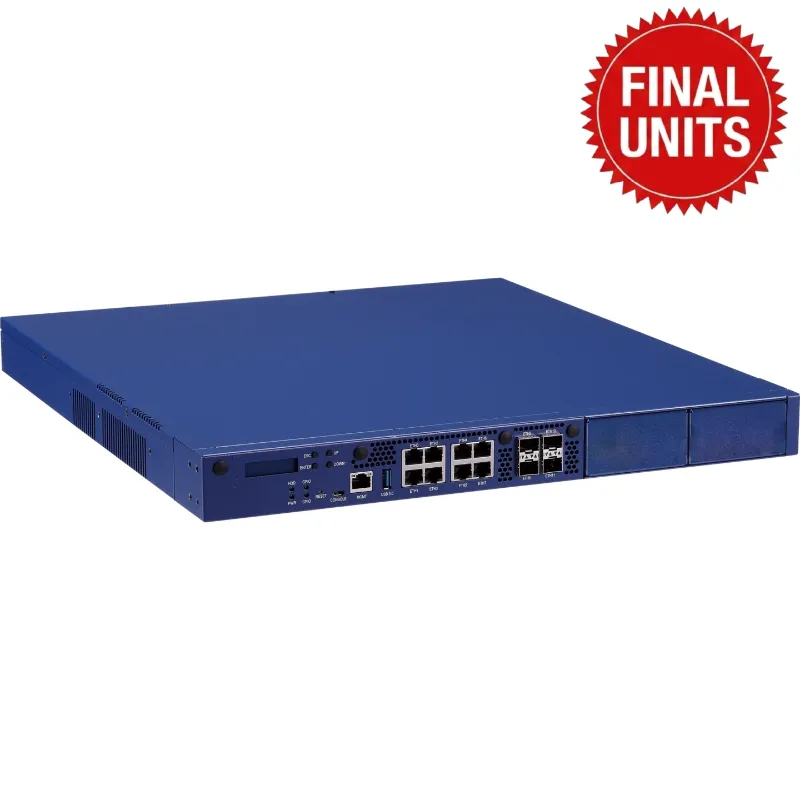

NEXCOM 1U SD-WAN Appliance | TCA 5170S

1U Rackmount uCPE w/ Intel® Xeon® Skylake-D SoC Processor, 8 x GbE RJ45, 4 x 10GbE Fiber and 2 x LAN Modules

Merchandise number：10CA0517005X1

Discounted price:US$
Sale US$
MSRP US$
Use bonus pointspt.

Description：

Intel® Xeon® D-2123IT SoC, BGA type
8 x DDR4-2400 RDIMM
1 x 2.5 SSD, 1 x M.2 2280
8 x GbE RJ45 & 4 x 10GbE Fiber
2 x LAN modules
Redundant power supply
Intel® Select Solution for uCPE (ADVA Ensemble Connector)

Download file

Spec.

Processor
- Intel® Xeon® Skylake-D SoC, BGA type
  - D-2123IT, 4 cores w/o QAT
Memory
- 8 x DDR4 2400 RDIMM sockets, up to 256GB
  - (Default: 1 x DDR4 8GB installed)
Storage Device
- 1 x 2.5” internal SSD/HDD bay
- 1 x M.2 2280 Key M, supports SATA and PCIe x4 signal
  - (Default: 1 x M.2 128GB SSD installed)

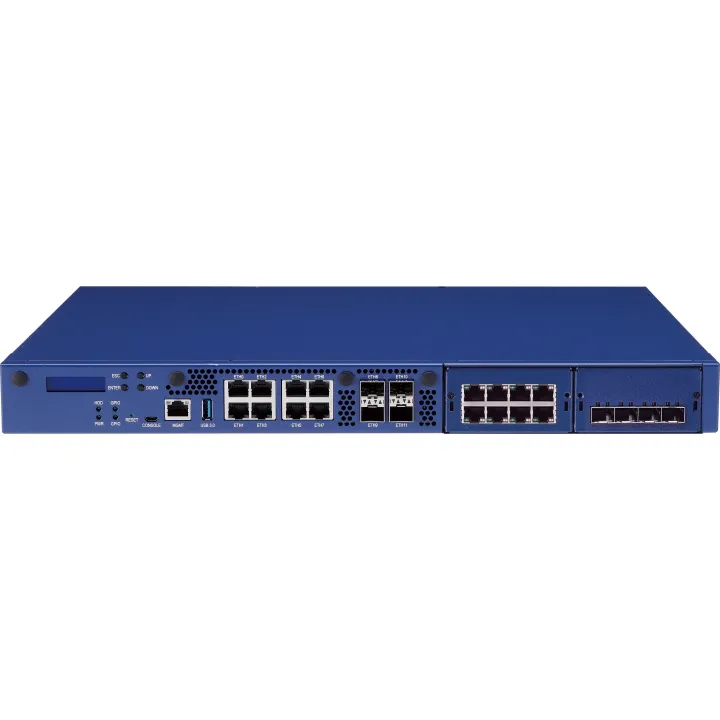

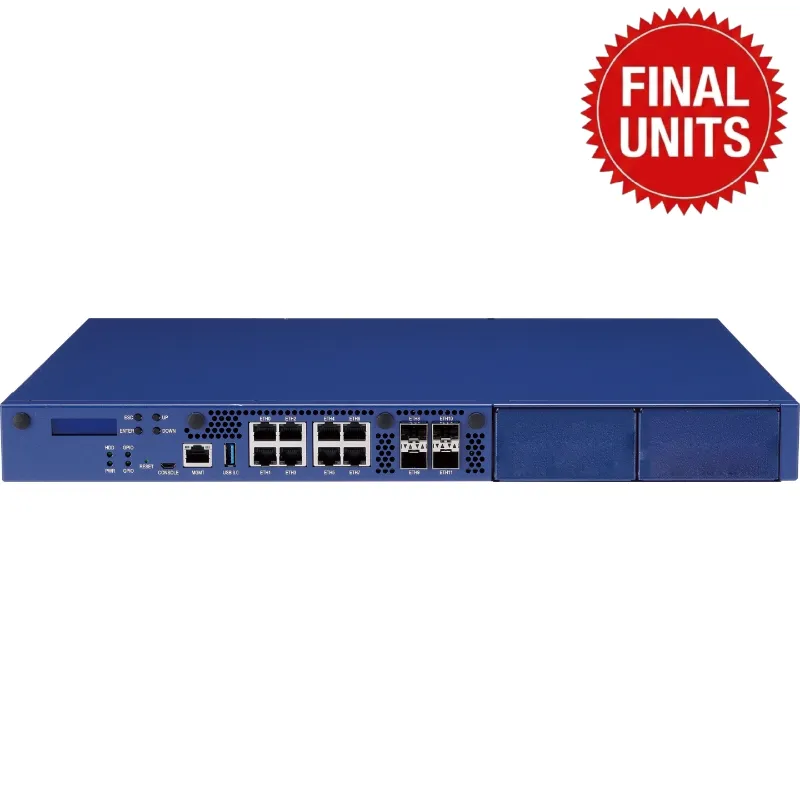

Interface-External
- Button: Power & Reset
- LED: Power/HDD/2 x GPIO
- 1 x USB 3.2 port
- 1 x Micro USB type console
- 8 x GbE RJ45 ports
  - 2 x LAN bypass pairs
- 4 x 10GbE fiber ports
- 2 x PCIe x8 LAN module slots
- 1 x Management port
- 4 x SMA connectors for Antennas
- 3 x Fixed smart fans
- 2 x Power inlets
- LCM module (optional)
Interface-Internal
- 1 x M.2 2230 Key E
- 1 x M.2 3042 Key B with SIM slot
Power
- 450W 1+1 redundant power supply
Mechanical
- Chassis dimension: 438 mm x 480 mm x 44 mm
- Package dimension: 632 mm x 567 mm x 203 mm
- Net weight: 8kg
- Gross weight: 12kg
Environment
- Ambient with air flow: 0°C~40°C
- Storage temperature: -20°C~80°C
- Relative humidity: 10%~90%, non-condensing
Certificationss
- CE/FCC Class A
- UL

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

We provide a 2-year warranty on all Industrial PC hardware, starting from the shipment date. This covers technical defects in materials and workmanship. During this period, NEXCOM offers repair or replacement services according to the RMA evaluation.

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw

Specifications
Processor

Intel® Xeon® Skylake-D SoC, BGA type

D-2123IT, 4 cores w/o QAT
Memory

8 x DDR4 2400 RDIMM sockets, up to 256GB

(Default: 1 x DDR4 8GB installed)
Storage Device

1 x 2.5” internal SSD/HDD bay

1 x M.2 2280 Key M, supports SATA and PCIe x4 signal

(Default: 1 x M.2 128GB SSD installed)
Interface-External

Button: Power & Reset

LED: Power/HDD/2 x GPIO

1 x USB 3.2 port

1 x Micro USB type console

8 x GbE RJ45 ports

2 x LAN bypass pairs

4 x 10GbE fiber ports

2 x PCIe x8 LAN module slots

1 x Management port

4 x SMA connectors for Antennas

3 x Fixed smart fans

2 x Power inlets

LCM module (optional)
Interface-Internal

1 x M.2 2230 Key E

1 x M.2 3042 Key B with SIM slot
Power

450W 1+1 redundant power supply
Mechanical

Chassis dimension: 438 mm x 480 mm x 44 mm

Package dimension: 632 mm x 567 mm x 203 mm

Net weight: 8kg

Gross weight: 12kg
Environment

Ambient with air flow: 0°C~40°C

Storage temperature: -20°C~80°C

Relative humidity: 10%~90%, non-condensing
Certificationss

CE/FCC Class A

UL

After-sales service

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

NEXCOM TCA 5170S 1U SD-WAN Appliance

The 1U rackmount uCPE TCA 5170 helps telecom companies build virtualization environments based on Intel® Xeon® D-2123IT processor (Skylake). Packing excellent multi-core CPU performance and server-grade LAN functions into a small form factor, this 1U rackmount uCPE creates virtualized environments for flexible VNF deployments in enterprises and branch offices.
