NEXCOM 1U Rackmount Network Appliance | NSA 5170C [EOL]
Intel® Xeon®/Core™/Pentium® Processors (Skylake-S), 1U Rackmount with 4 LAN Module Slot
Merchandise number：10S00517002X0
Description：
- 1U workstation rack mount system
- Intel® Xeon® (Skylake-S)/Core™/Pentium® processor
- Support DDR4 2400
- Four LAN module slots (optional)
- 1 LCM module included
Download file
Ordering Information：CPU/ Memory/ Storage/ LAN Module not included
-
Processor
- Intel® Xeon® (Skylake-S)/Core™/Pentium® processors
- Intel® C236
Main Memory- 4x DDR4 2133/2400 DIMM support ECC/non-ECC memory, max. 64GB
LAN Features- Swappable LAN modules
- LAN bypass
- Please see LAN module list information (refer to User Manual)

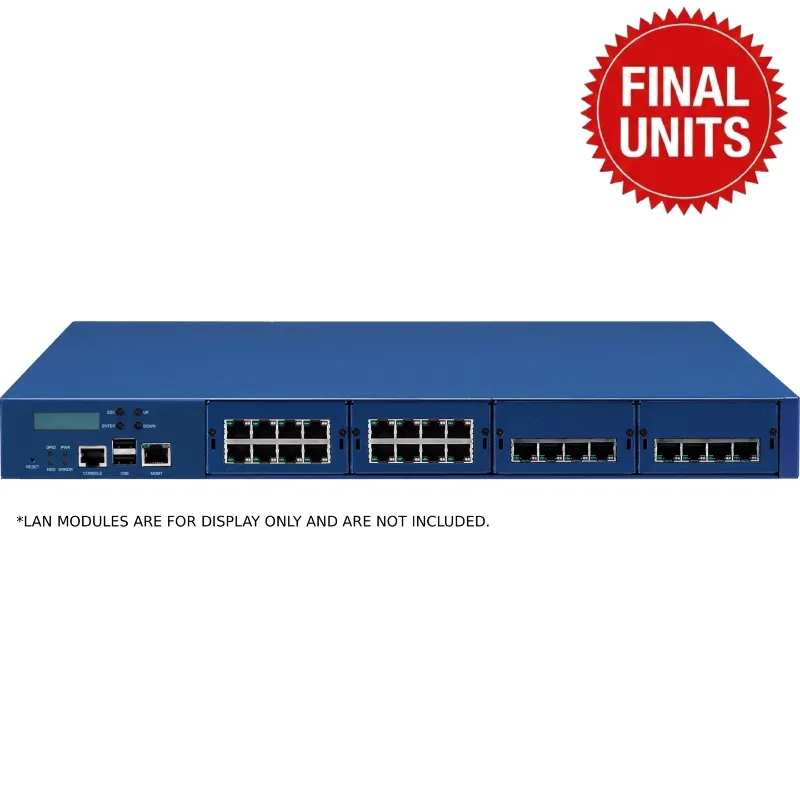

I/O Interface-Front- Power status/HDD status/2 x GPIO status LEDs
- 1 x Management ports (LAN chip: Intel® i210)
- 2 x USB 2.0 ports
- 1 x RJ45 type console port
- 1 x Reset button
- 4 x PCIe 3.0 LAN module slots (x8, x8, x4, x4)

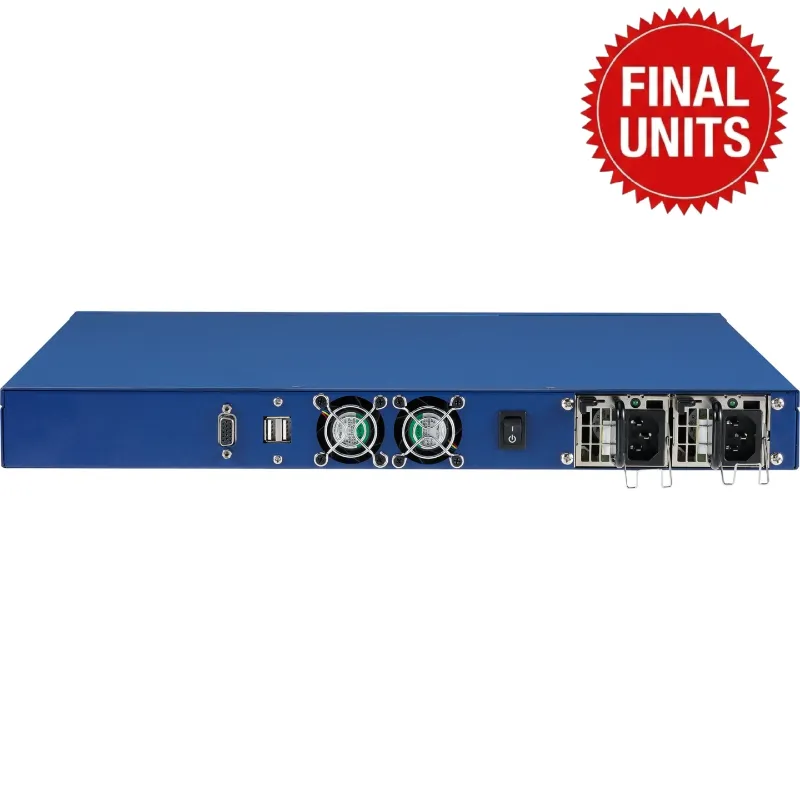

I/O Interface-Rear- 1 x VGA port
- 1 x Power button switch
- 2 x USB 2.0 port
Storage Device- 1 x CF card
- 1 x 2.5” HDD bay
Power Input- Power supply 300W (1+1) redundant PSU
Dimensions- Chassis dimension: 438 mm x 470 mm x 44 mm
- Carton dimension: 665 mm x 547 mm x 226 mm
Weight- Without packing: 7.5 kg
- With packing: 10.5 kg
Certifications- CE Approval
- FCC Class A
- UL
-
- Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
- Special EOL Offer: Limited availability for this discontinued model.
- 3-Month DOA Policy: Replacement or refund for defective units.
- Free Shipping: Complimentary shipping on eligible global orders.
- Direct Support: Professional technical assistance available (fees may apply after the DOA period).
-
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
-
SpecificationsProcessor
- Intel® Xeon® (Skylake-S)/Core™/Pentium® processors
- Intel® C236
Main Memory- 4x DDR4 2133/2400 DIMM support ECC/non-ECC memory, max. 64GB
LAN Features- Swappable LAN modules
- LAN bypass
- Please see LAN module list information (refer to User Manual)
I/O Interface-Front- Power status/HDD status/2 x GPIO status LEDs
- 1 x Management ports (LAN chip: Intel® i210)
- 2 x USB 2.0 ports
- 1 x RJ45 type console port
- 1 x Reset button
- 4 x PCIe 3.0 LAN module slots (x8, x8, x4, x4)
I/O Interface-Rear- 1 x VGA port
- 1 x Power button switch
- 2 x USB 2.0 port
Storage Device- 1 x CF card
- 1 x 2.5” HDD bay
Power Input- Power supply 300W (1+1) redundant PSU
Dimensions- Chassis dimension: 438 mm x 470 mm x 44 mm
- Carton dimension: 665 mm x 547 mm x 226 mm
Weight- Without packing: 7.5 kg
- With packing: 10.5 kg
Certifications- CE Approval
- FCC Class A
- UL
-
After-sales service
- Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
- Special EOL Offer: Limited availability for this discontinued model.
- 3-Month DOA Policy: Replacement or refund for defective units.
- Free Shipping: Complimentary shipping on eligible global orders.
- Direct Support: Professional technical assistance available (fees may apply after the DOA period).
-
Contact Us
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
NEXCOM NSA 5170C 1U Rackmount Network Appliance
NEXCOM network appliance NSA 5170C helps small and medium-sized businesses (SMBs) scrutinize network traffic with ease. Featuring Intel® Xeon® product family, the NSA 5170C delivers scalable computing performance, high port density, and easy expansions of high-speed networking interface. By simplifying deployment, configuration, and management of network security controls, NEXCOM network appliance can fend off unauthorized access, patch potential security loopholes, and create protected networks for business environments.
