- Includes complimentary cloud data platform and dedicated mobile app.
- Rapid deployment of Industrial IoT (IIoT) networks.
- Built on the robust GoodLinker Cloud Field View platform.
- Bridges the gap between IT and OT systems.
- Supports standard industrial protocols: Modbus RTU/TCP.
- Seamless ADC/Analog/USB/RS-485 communication via iO-Grid rail system.
- Highly flexible and expandable AI/DI input modules.
- DC 24V industrial-grade power input.
-
IIoT Gateway Hardware (BCS-MX)
Form Factor & Mounting- Form Factor: DIN-rail industrial IoT gateway
- Dimensions: 40 × 100 × 97 mm
- Weight: 180 g
- Operating Temperature: 0 °C to 70 °C
Power & Interfaces- Power Input: DC 24V (Terminal Block / Barrel Connector)
- Ethernet: 2 × RJ45 (10 / 100 Mbps)
- RS-485: 1 ×
- USB: 1 ×
- Expansion: Modular Remote I/O expansion supported
System Hardware- Processor: ARMv8 Cortex-A53 (64-bit), quad-core 1.2 GHz
- Memory: 1 GB LPDDR2
- Storage: 32 GB eMMC
Firmware / OS- Operating System: Embedded Linux
- Local Management: Browser-based Web UI (LAN / Intranet)
Protocols- Modbus TCP: ✓
- Modbus RTU (RS-485): ✓
Packaging- Package Dimensions (W × D × H): 147 × 138 × 80 mm
- Package Weight (with carton & cushioning): 255 g
Certifications- AWS IoT Core Qualified Device: In Review
- CE: In Process
- FCC: In Process
Gateway Capacity
Cloud-connected Data Sensor Tags- 40
Maximum Sensor Inputs (local / API conversion)- 100
Quota Calculation- Cloud-connected and Maximum Sensor quotas are independent and do not consume each other
Activation Control- Cloud sync can be individually enabled or disabled per sensor
License Type- Permanent, bound to Gateway serial number
Cloud Service (GoodLinker Cloud Field View, Standard)
Infrastructure- Cloud Infrastructure: AWS
- Device Connectivity: MQTT over TLS (via AWS IoT Core)
Presentation- Web: Most major browsers (Chrome, Edge, Safari, Firefox); latest version recommended
- Mobile App (iOS): iOS 15.0 or later
- Mobile App (Android): Android 7.0 or later
Data- Data Dashboard Refresh Rate: 1 minute
- Historical Data Storage Interval: 3 minutes
- Data Retention: Up to 3 years (Standard, rolling)
- Offline Buffering: Gateway stores up to ~120 hours of data when disconnected; autouploads on reconnection
Accounts- Included User Accounts: 3 (1 Owner + 2 Users; additional seats available)
- User Roles: Owner / Admin / User; per-user tag-group access control
Export- Data Export Formats: Excel / CSV
Alerts- Alert Features: Conditional alerts + event notifications + alert history; immediate push on anomaly
Upgrade- GenAIoT Module: Available via Premium plan upgrade
Security & Reliability
Device Authentication- X.509 certificate-based, one identity per Gateway
Data in Transit- TLS 1.2+ end-to-end (MQTT / HTTPS)
Data at Rest- AWS-managed KMS encryption
Access Control- Role-based (Owner / Admin / User) with per-tag-group permissions
Mobile App Login- Biometric authentication (Face ID, Touch ID, Android Biometric)
Account Activity- Login and device access logging visible to the account owner
Update Delivery- Automatic OTA updates for Gateway firmware, cloud service, and web application
Reliability- Watchdog with automatic reconnection; Gateway offline buffer up to ~120 hours
Cloud Hosting- Hosted on AWS (ISO 27001 / SOC 2 infrastructure)
-

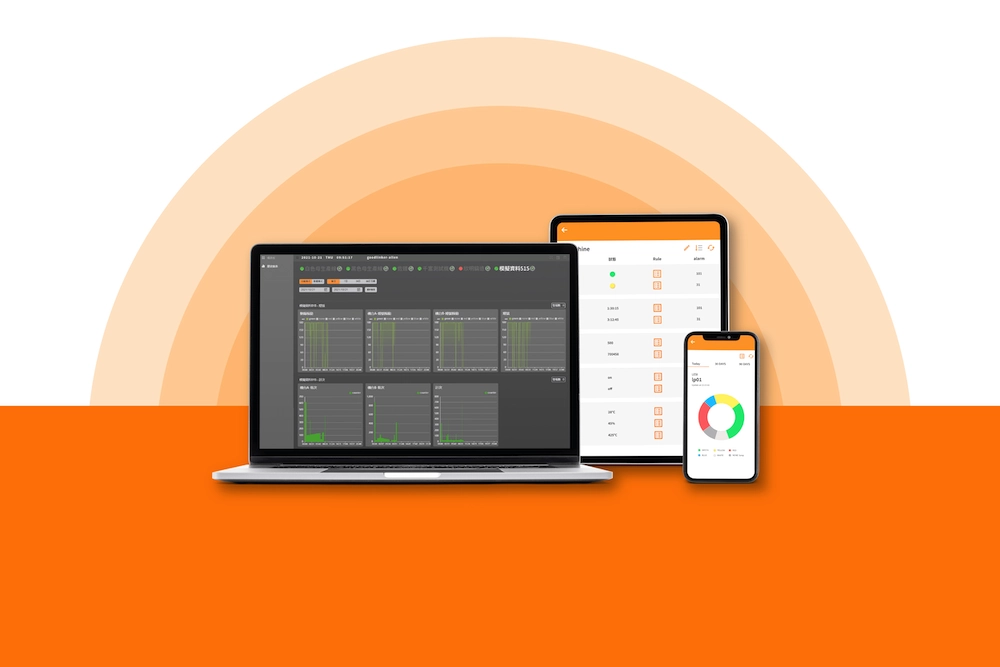

Real-Time Factory VisualizationAccurately captures comprehensive machinery operation data with real-time synchronization. Live factory-floor operational statuses are streamed directly into your cloud situation room, enabling managers to conduct optimized scheduling and maximize production output.
Brand & Age Agnostic CompatibilityUtilizes industrial external sensors to harvest physical equipment signals. This modular approach instantly retrofits non-networked legacy machinery on the spot, seamlessly centralizing data lines across completely diverse machinery brands.
Zero Risk to Equipment WarrantiesIndustrial equipment assets represent substantial corporate investments. Our parallel-layer sensor layout extracts physical machine data externally without modifying internal PLC circuitry, ensuring your original manufacturer warranty remains 100% secure.
Automated Digital LoggingReplaces prone-to-error traditional manual paperwork and paper clipboard logs. By archiving production parameters directly from the hardware edge, historical manufacturing logs become perfectly precise, secure, and permanent.
Enterprise-Grade Cyber SecurityEngineered to the rigorous security standards of global leading technology corporations. Data environments are stringently protected via state-of-the-art AWS Identity Services, delivering premium data privacy and multi-layered leakage defenses.
Flexible Subscription ManagementStreamlined corporate accounting via convenient monthly telecom utility billings (Chunghwa Telecom billing integration). Subscription plans include continuous cloud system feature upgrades and platform optimization patches automatically.
Cloud Field View Full Feature Comparison Matrix
Evaluate software capability profiles across Web, Mobile App, and Notification services.
Web Application Platform ModulesFunction / Module Block Entry Package Growth Package Premium Package Live View Dashboards Standard Situational Live Dashboard ✓ ✓ ✓ Custom Homepage Interfaces 3 Views 7 Views Unlimited Power Monitoring Integration Module ✓ ✓ ✓ Real-Time Active Shift Telemetry View ✓ ✓ ✓ Intraday Parameter Change Graphs ✓ ✓ ✓ Data Analytics & Archiving Center Historical Data Query Hub ✓ ✓ ✓ Excel Historical Log Export Engine ✓ ✓ ✓ Chronological System Event Logging ✓ ✓ ✓ Report Automation Engine Universal Trend & Analytical Charts 3 Charts 10 Charts Unlimited GenAIoT Advanced Module Analytics — ✓ ✓ Critical Alarm & Anomaly Tracking Analytics — ✓ ✓ Pre-Configured Excel Report Templates 3 Templates 10 Templates Unlimited Device Monitoring & Diagnostics (30-Day Offline Logs Retained) Gateway Hardware Network Offline Logging ✓ ✓ ✓ Component Sensor Connection Status Logs — ✓ ✓ Asset Administration & Tag Control Tag Management & Asset Group Permission Mapping ✓ ✓ ✓ Corporate Member Account & Role Authority Controls ✓ ✓ ✓ License Constraints & Cloud Retentions Authorized User Accounts included in License 1 User 3 Users 3 Users Granular User Role Permission Matrix ✓ ✓ ✓ Cloud Database Rolling Data Retention Same-Day Data Only 3 Years Rolling 10 Years Rolling
(Custom extended retention available)Mobile Application Platform Modules (iOS & Android)Function / Module Block Entry Package Growth Package Premium Package Instant Mobile Push Alerts Intraday Critical Alarm History Log ✓ ✓ ✓ Individual Sensor Threshold Alarm Monitoring ✓ ✓ ✓ Complex Telemetry Anomaly Push Routing ✓ ✓ ✓ Field Optimization Utilities Live On-Site Telemetry Mobile Streaming ✓ ✓ ✓ Physical Worksite Photo & Location Node Mapping ✓ ✓ ✓ Global Facility Operational Status Overviews ✓ ✓ ✓ Mobile Intelligence Analytics Historical Parameter Trendline Queries ✓ ✓ ✓ Historical Alarm Log Ledger Archive ✓ ✓ ✓ Automated Prior-Day Alarm Summary Digest ✓ ✓ ✓ Mobile Access Credentials & Retention Authorized User Accounts included in License 1 User 3 Users 3 Users Granular Mobile Client Role Management ✓ ✓ ✓ Mobile Database Rolling Data Retention Same-Day Data Only 3 Years Rolling 10 Years Rolling
(Custom extended retention available)Automated Email Notification ServicesFunction / Module Block Entry Package Growth Package Premium Package Email Notification Capabilities Gateway Hardware Network Offline Dispatch Alerts ✓ ✓ ✓ Automated Facility Anomaly Performance Weekly Digest — ✓ ✓ -
- Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
- Ships Fast: Orders are processed and shipped within 2 business days.
- 2-Year Global Warranty: Limited hardware warranty from the shipment date.
- 30-Day Return Policy: Satisfaction guarantee window (terms apply).
- Free Shipping: Complimentary shipping on eligible global orders.
- Direct Support: For any usage issues after purchase, please feel free to contact us anytime.
-
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
-
Specifications
IIoT Gateway Hardware (BCS-MX)
Form Factor & Mounting- Form Factor: DIN-rail industrial IoT gateway
- Dimensions: 40 × 100 × 97 mm
- Weight: 180 g
- Operating Temperature: 0 °C to 70 °C
Power & Interfaces- Power Input: DC 24V (Terminal Block / Barrel Connector)
- Ethernet: 2 × RJ45 (10 / 100 Mbps)
- RS-485: 1 ×
- USB: 1 ×
- Expansion: Modular Remote I/O expansion supported
System Hardware- Processor: ARMv8 Cortex-A53 (64-bit), quad-core 1.2 GHz
- Memory: 1 GB LPDDR2
- Storage: 32 GB eMMC
Firmware / OS- Operating System: Embedded Linux
- Local Management: Browser-based Web UI (LAN / Intranet)
Protocols- Modbus TCP: ✓
- Modbus RTU (RS-485): ✓
Packaging- Package Dimensions (W × D × H): 147 × 138 × 80 mm
- Package Weight (with carton & cushioning): 255 g
Certifications- AWS IoT Core Qualified Device: In Review
- CE: In Process
- FCC: In Process
Gateway Capacity
Cloud-connected Data Sensor Tags- 40
Maximum Sensor Inputs (local / API conversion)- 100
Quota Calculation- Cloud-connected and Maximum Sensor quotas are independent and do not consume each other
Activation Control- Cloud sync can be individually enabled or disabled per sensor
License Type- Permanent, bound to Gateway serial number
Cloud Service (GoodLinker Cloud Field View, Standard)
Infrastructure- Cloud Infrastructure: AWS
- Device Connectivity: MQTT over TLS (via AWS IoT Core)
Presentation- Web: Most major browsers (Chrome, Edge, Safari, Firefox); latest version recommended
- Mobile App (iOS): iOS 15.0 or later
- Mobile App (Android): Android 7.0 or later
Data- Data Dashboard Refresh Rate: 1 minute
- Historical Data Storage Interval: 3 minutes
- Data Retention: Up to 3 years (Standard, rolling)
- Offline Buffering: Gateway stores up to ~120 hours of data when disconnected; autouploads on reconnection
Accounts- Included User Accounts: 3 (1 Owner + 2 Users; additional seats available)
- User Roles: Owner / Admin / User; per-user tag-group access control
Export- Data Export Formats: Excel / CSV
Alerts- Alert Features: Conditional alerts + event notifications + alert history; immediate push on anomaly
Upgrade- GenAIoT Module: Available via Premium plan upgrade
Security & Reliability
Device Authentication- X.509 certificate-based, one identity per Gateway
Data in Transit- TLS 1.2+ end-to-end (MQTT / HTTPS)
Data at Rest- AWS-managed KMS encryption
Access Control- Role-based (Owner / Admin / User) with per-tag-group permissions
Mobile App Login- Biometric authentication (Face ID, Touch ID, Android Biometric)
Account Activity- Login and device access logging visible to the account owner
Update Delivery- Automatic OTA updates for Gateway firmware, cloud service, and web application
Reliability- Watchdog with automatic reconnection; Gateway offline buffer up to ~120 hours
Cloud Hosting- Hosted on AWS (ISO 27001 / SOC 2 infrastructure)
-
Software Platform
Real-Time Factory Visualization
Accurately captures comprehensive machinery operation data with real-time synchronization. Live factory-floor operational statuses are streamed directly into your cloud situation room, enabling managers to conduct optimized scheduling and maximize production output.
Brand & Age Agnostic CompatibilityUtilizes industrial external sensors to harvest physical equipment signals. This modular approach instantly retrofits non-networked legacy machinery on the spot, seamlessly centralizing data lines across completely diverse machinery brands.
Zero Risk to Equipment WarrantiesIndustrial equipment assets represent substantial corporate investments. Our parallel-layer sensor layout extracts physical machine data externally without modifying internal PLC circuitry, ensuring your original manufacturer warranty remains 100% secure.
Automated Digital LoggingReplaces prone-to-error traditional manual paperwork and paper clipboard logs. By archiving production parameters directly from the hardware edge, historical manufacturing logs become perfectly precise, secure, and permanent.
Enterprise-Grade Cyber SecurityEngineered to the rigorous security standards of global leading technology corporations. Data environments are stringently protected via state-of-the-art AWS Identity Services, delivering premium data privacy and multi-layered leakage defenses.
Flexible Subscription ManagementStreamlined corporate accounting via convenient monthly telecom utility billings (Chunghwa Telecom billing integration). Subscription plans include continuous cloud system feature upgrades and platform optimization patches automatically.
Cloud Field View Full Feature Comparison Matrix
Evaluate software capability profiles across Web, Mobile App, and Notification services.
Web Application Platform ModulesFunction / Module Block Entry Package Growth Package Premium Package Live View Dashboards Standard Situational Live Dashboard ✓ ✓ ✓ Custom Homepage Interfaces 3 Views 7 Views Unlimited Power Monitoring Integration Module ✓ ✓ ✓ Real-Time Active Shift Telemetry View ✓ ✓ ✓ Intraday Parameter Change Graphs ✓ ✓ ✓ Data Analytics & Archiving Center Historical Data Query Hub ✓ ✓ ✓ Excel Historical Log Export Engine ✓ ✓ ✓ Chronological System Event Logging ✓ ✓ ✓ Report Automation Engine Universal Trend & Analytical Charts 3 Charts 10 Charts Unlimited GenAIoT Advanced Module Analytics — ✓ ✓ Critical Alarm & Anomaly Tracking Analytics — ✓ ✓ Pre-Configured Excel Report Templates 3 Templates 10 Templates Unlimited Device Monitoring & Diagnostics (30-Day Offline Logs Retained) Gateway Hardware Network Offline Logging ✓ ✓ ✓ Component Sensor Connection Status Logs — ✓ ✓ Asset Administration & Tag Control Tag Management & Asset Group Permission Mapping ✓ ✓ ✓ Corporate Member Account & Role Authority Controls ✓ ✓ ✓ License Constraints & Cloud Retentions Authorized User Accounts included in License 1 User 3 Users 3 Users Granular User Role Permission Matrix ✓ ✓ ✓ Cloud Database Rolling Data Retention Same-Day Data Only 3 Years Rolling 10 Years Rolling
(Custom extended retention available)Mobile Application Platform Modules (iOS & Android)Function / Module Block Entry Package Growth Package Premium Package Instant Mobile Push Alerts Intraday Critical Alarm History Log ✓ ✓ ✓ Individual Sensor Threshold Alarm Monitoring ✓ ✓ ✓ Complex Telemetry Anomaly Push Routing ✓ ✓ ✓ Field Optimization Utilities Live On-Site Telemetry Mobile Streaming ✓ ✓ ✓ Physical Worksite Photo & Location Node Mapping ✓ ✓ ✓ Global Facility Operational Status Overviews ✓ ✓ ✓ Mobile Intelligence Analytics Historical Parameter Trendline Queries ✓ ✓ ✓ Historical Alarm Log Ledger Archive ✓ ✓ ✓ Automated Prior-Day Alarm Summary Digest ✓ ✓ ✓ Mobile Access Credentials & Retention Authorized User Accounts included in License 1 User 3 Users 3 Users Granular Mobile Client Role Management ✓ ✓ ✓ Mobile Database Rolling Data Retention Same-Day Data Only 3 Years Rolling 10 Years Rolling
(Custom extended retention available)Automated Email Notification ServicesFunction / Module Block Entry Package Growth Package Premium Package Email Notification Capabilities Gateway Hardware Network Offline Dispatch Alerts ✓ ✓ ✓ Automated Facility Anomaly Performance Weekly Digest — ✓ ✓ -
After-sales service
- Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
- Ships Fast: Orders are processed and shipped within 2 business days.
- 2-Year Global Warranty: Limited hardware warranty from the shipment date.
- 30-Day Return Policy: Satisfaction guarantee window (terms apply).
- Free Shipping: Complimentary shipping on eligible global orders.
- Direct Support: For any usage issues after purchase, please feel free to contact us anytime.
-
Download
-
Contact Us
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
GoodLinker Field-to-Cloud IIoT Solution Package | BCS-MX
This is a pre-integrated industrial cloud package, BCS-MX IIoT Gateway + Cloud Field View Standard License (1-Year), that gets field-to-cloud monitoring online in hours without building anything from scratch. Connect existing PLCs, sensors, or power meters via Modbus TCP / RTU. Data flows into the Gateway and shows up on a live web and mobile dashboard, with alert notifications enabled out of the box.
The package is non-intrusive by design. It integrates on top of existing PLC and control system architectures, with no changes to field wiring or control logic. Existing control design is preserved while cloud monitoring, alerts, and historical data are added as a parallel layer.
The Entry package keeps deployment cost low while preserving a clear upgrade path: the same hardware can move to the Premium cloud plan at any time to unlock GenAIoT advanced analytics, extended data retention, and higher tag capacity, without changing the field installation.

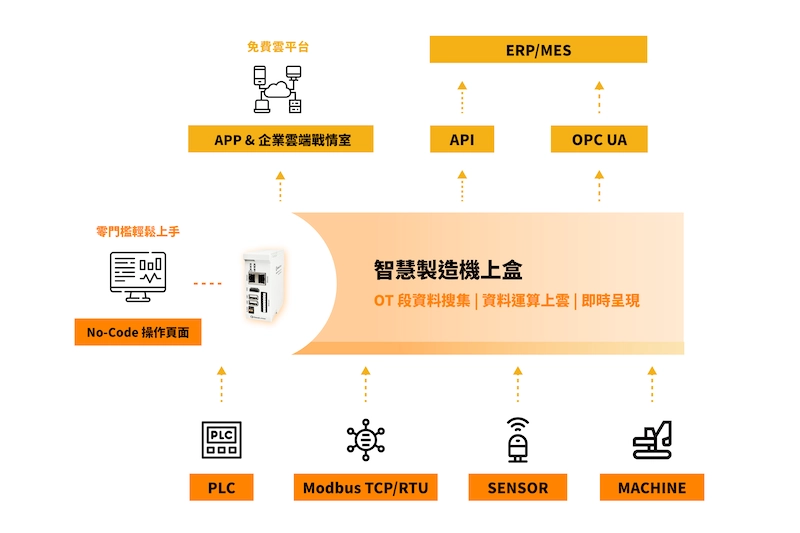

The BCS-MX Smart Manufacturing Gateway simultaneously converts multiple communication protocols to bridge IT and OT environments. By seamlessly integrating diverse industrial standards, it connects plant-wide data to achieve the crucial first step of Industrial IoT. Featuring a complimentary Enterprise Cloud Situation Room and dedicated mobile apps maintained and optimized by a professional IT team, it delivers comprehensive data visualization. Production data flows smoothly from edge to cloud, allowing factory owners to track equipment status anytime, anywhere.

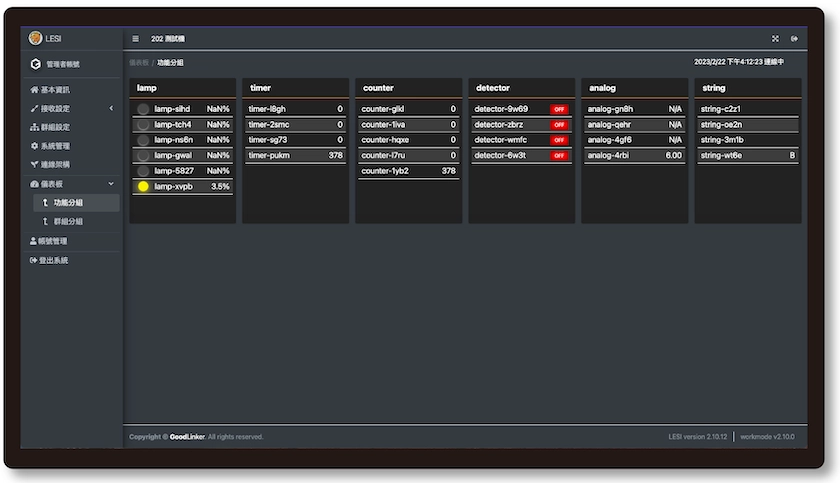

Build your preferred monitoring layouts with zero development barriers or engineering coding requirements. The GoodLinker browser-based Engineering Mode provides a menu-driven configuration tool that lets operators without mechanical, electrical, or programming backgrounds seamlessly map data tags and push machinery variables to the cloud. It features simple setup, rapid deployment, and real-time visual dashboards that display live results instantly for seamless operational convenience.
Supporting the Cloud Field View platform natively, this package allows System Integrators to deploy IIoT systems instantly. Eliminate custom development cycles and ongoing software maintenance overhead. The complimentary version grants immediate access to essential platform features, while premium upgrades are available for advanced applications. Highly adaptable across verticals, it has successfully powered casting, plastic injection, fasteners, and food processing operations.
- Real-time situational dashboards for diverse machinery types
- Daily data charts and analytical graphs for connected assets
- Instant Andon system anomaly alerts and notifications
- Mobile app push alerts and live data visualization on the go
- Centralized management and summaries for anomaly tracking reports

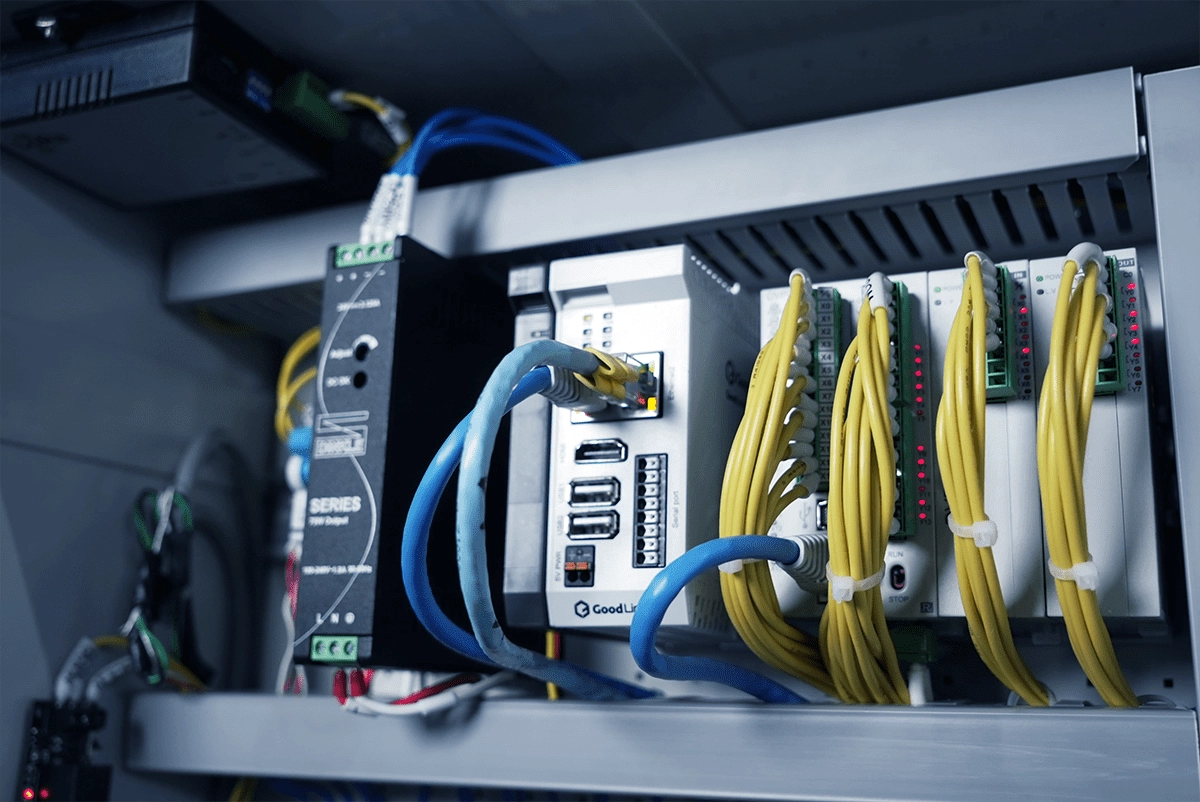

The BCS-MX is an AWS IoT Core Certified industrial device, guaranteeing premium enterprise cyber security data pipelines. This fanless, DIN-rail mountable ARM embedded industrial computer features a Broadcom quad-core processor, offering a highly reliable I/O architecture engineered for unstable plant environments. The integrated Andon system delivers real-time notifications when equipment anomalies occur, accelerating troubleshooting and reducing costly, unplanned production line downtime. It processes encrypted edge calculations and uploads data securely, upgrading traditional machinery into intelligent, cloud-connected smart equipment compatible with complex AWS workflows.
| Component | Entry Package | Growth Package | Premium Package |
|---|---|---|---|
| IIoT Gateway Hardware | BCS-MX | BCS-MX | BCS-MX |
| Gateway Capacity Upgrade License | N/A | N/A | LIC-MX-100 |
| Cloud-connected Data Sensor Tags | 40 | 40 | 100 |
| Maximum Sensor Inputs (local / API conversion) |
100 | 100 | 300 |
| Cloud Service License (1 Year) | GFV-S-3U (Standard) | GFV-P-3U (Premium) | GFV-P-3U (Premium) |
| Data Retention | 3 years (rolling) | 10 years (rolling) | 10 years (rolling) |
| GenAIoT Module | N/A | ✓ Included | ✓ Included |
