GoodLinker Industrial Cloud Solution with IIoT Gateway
IIoT Gateway Hardware (BCS-MX) + Gateway Capacity + GoodLinker Cloud Field View
Description：
- Includes complimentary cloud data platform and dedicated mobile app.
- Rapid deployment of Industrial IoT (IIoT) networks.
- Built on the robust GoodLinker Cloud Field View platform.
- Bridges the gap between IT and OT systems.
- Supports standard industrial protocols: Modbus RTU/TCP.
- Seamless ADC/Analog/USB/RS-485 communication via iO-Grid rail system.
- Highly flexible and expandable AI/DI input modules.
- DC 24V industrial-grade power input.
-

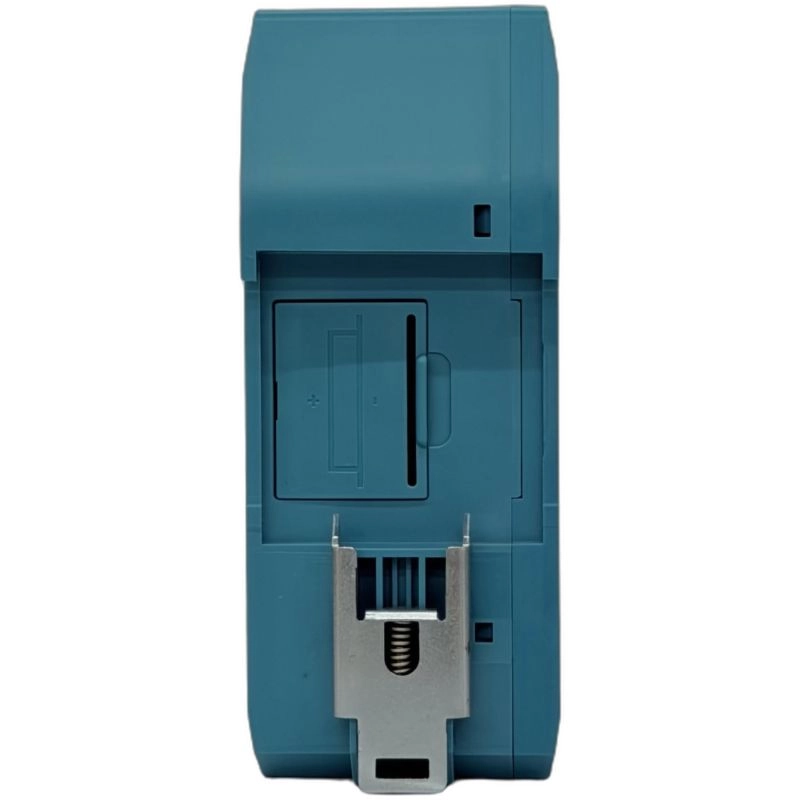

IIoT Gateway Hardware (BCS-MX)
Form Factor & Mounting- Form Factor: DIN-rail industrial IoT gateway
- Dimensions: 40 × 100 × 97 mm
- Weight: 180 g
- Operating Temperature: 0 °C to 70 °C
Power & Interfaces- Power Input: DC 24V (Terminal Block / Barrel Connector)
- Ethernet: 2 × RJ45 (10 / 100 Mbps)
- RS-485: 1 ×
- USB: 1 ×
- Expansion: Modular Remote I/O expansion supported
System Hardware- Processor: ARMv8 Cortex-A53 (64-bit), quad-core 1.2 GHz
- Memory: 1 GB LPDDR2
- Storage: 32 GB eMMC
Firmware / OS- Operating System: Embedded Linux
- Local Management: Browser-based Web UI (LAN / Intranet)
Protocols- Modbus TCP: ✓
- Modbus RTU (RS-485): ✓
Packaging- Package Dimensions (W × D × H): 147 × 138 × 80 mm
- Package Weight (with carton & cushioning): 255 g
Certifications- AWS IoT Core Qualified Device: In Review
- CE: In Process
- FCC: In Process
Gateway Capacity
Cloud-connected Data Sensor Tags- 40
Maximum Sensor Inputs (local / API conversion)- 100
Quota Calculation- Cloud-connected and Maximum Sensor quotas are independent and do not consume each other
Activation Control- Cloud sync can be individually enabled or disabled per sensor
License Type- Permanent, bound to Gateway serial number
GoodLinker Cloud Field View
Infrastructure- Cloud Infrastructure: AWS
- Device Connectivity: MQTT over TLS (via AWS IoT Core)
Presentation- Web: Most major browsers (Chrome, Edge, Safari, Firefox); latest version recommended
- Mobile App (iOS): iOS 15.0 or later
- Mobile App (Android): Android 7.0 or later
Data- Data Dashboard Refresh Rate: 1 minute
- Historical Data Storage Interval: 3 minutes
- Data Retention: Up to 3 years (Standard, rolling)
- Offline Buffering: Gateway stores up to ~120 hours of data when disconnected; autouploads on reconnection
Accounts- Included User Accounts: 3 (1 Owner + 2 Users; additional seats available)
- User Roles: Owner / Admin / User; per-user tag-group access control
Export- Data Export Formats: Excel / CSV
Alerts- Alert Features: Conditional alerts + event notifications + alert history; immediate push on anomaly
Upgrade- GenAIoT Module: Available via Premium plan upgrade
Security & Reliability
Device Authentication- X.509 certificate-based, one identity per Gateway
Data in Transit- TLS 1.2+ end-to-end (MQTT / HTTPS)
Data at Rest- AWS-managed KMS encryption
Access Control- Role-based (Owner / Admin / User) with per-tag-group permissions
Mobile App Login- Biometric authentication (Face ID, Touch ID, Android Biometric)
Account Activity- Login and device access logging visible to the account owner
Update Delivery- Automatic OTA updates for Gateway firmware, cloud service, and web application
Reliability- Watchdog with automatic reconnection; Gateway offline buffer up to ~120 hours
Cloud Hosting- Hosted on AWS (ISO 27001 / SOC 2 infrastructure)
-

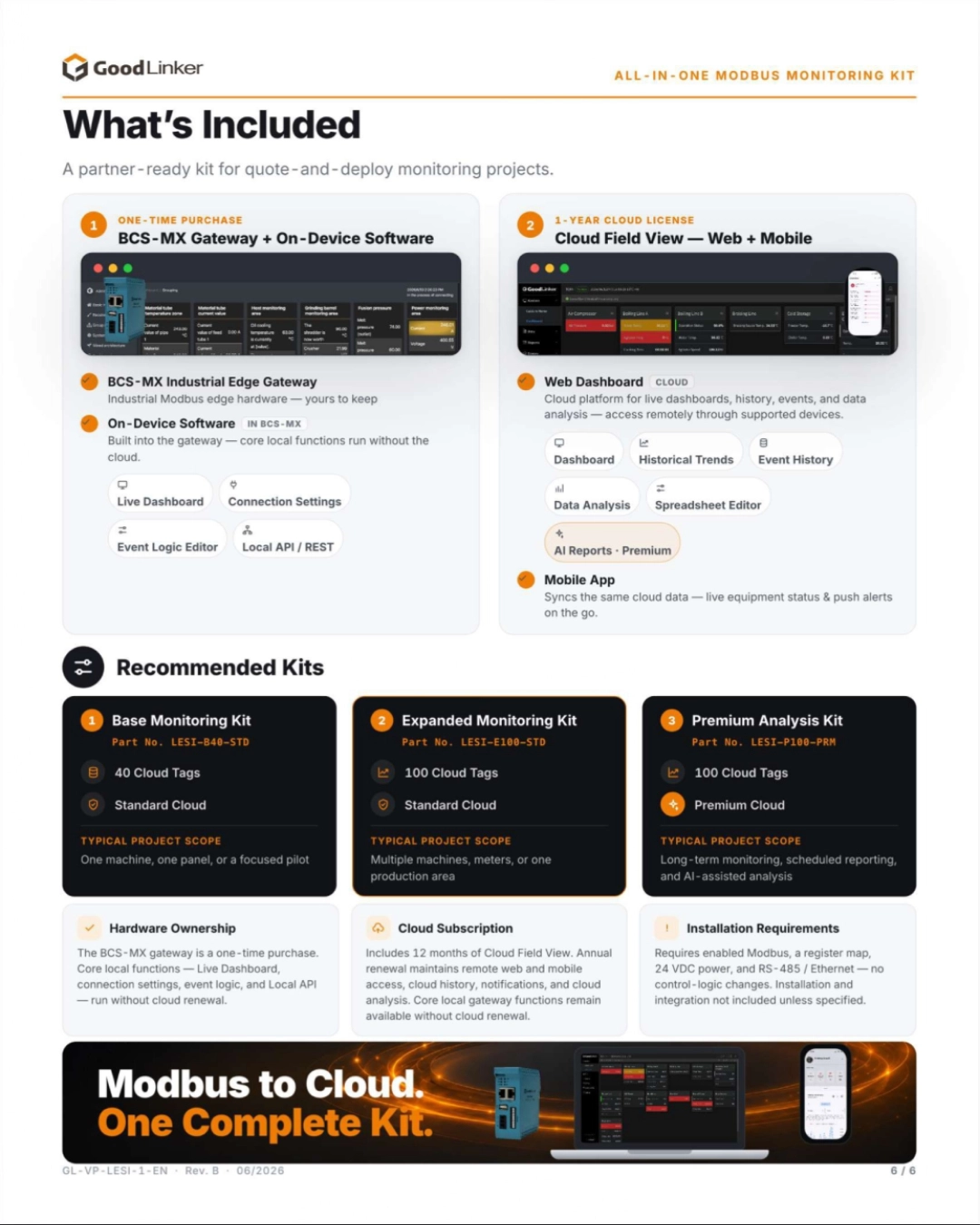

Package Variant
Component Entry Package Growth Package Premium Package IIoT Gateway Hardware BCS-MX BCS-MX BCS-MX Gateway Capacity Upgrade License N/A N/A LIC-MX-100 Cloud-connected Data Sensor Tags 40 40 100 Maximum Sensor Inputs
(local / API conversion)100 100 300 Cloud Service License (1 Year) GFV-S-3U (Standard) GFV-P-3U (Premium) GFV-P-3U (Premium) Data Retention 3 years (rolling) 10 years (rolling) 10 years (rolling) GenAIoT Module N/A ✓ Included ✓ Included * All software packages include a permanent, non-transferable edge capacity license linked to the unique gateway serial number. -
- Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
- Ships Fast: Orders are processed and shipped within 2 business days.
- 2-Year Global Warranty: Limited hardware warranty from the shipment date.
- 30-Day Return Policy: Satisfaction guarantee window (terms apply).
- Free Shipping: Complimentary shipping on eligible global orders.
- Direct Support: For any usage issues after purchase, please feel free to contact us anytime.
-
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
-
Specifications
IIoT Gateway Hardware (BCS-MX)
Form Factor & Mounting- Form Factor: DIN-rail industrial IoT gateway
- Dimensions: 40 × 100 × 97 mm
- Weight: 180 g
- Operating Temperature: 0 °C to 70 °C
Power & Interfaces- Power Input: DC 24V (Terminal Block / Barrel Connector)
- Ethernet: 2 × RJ45 (10 / 100 Mbps)
- RS-485: 1 ×
- USB: 1 ×
- Expansion: Modular Remote I/O expansion supported
System Hardware- Processor: ARMv8 Cortex-A53 (64-bit), quad-core 1.2 GHz
- Memory: 1 GB LPDDR2
- Storage: 32 GB eMMC
Firmware / OS- Operating System: Embedded Linux
- Local Management: Browser-based Web UI (LAN / Intranet)
Protocols- Modbus TCP: ✓
- Modbus RTU (RS-485): ✓
Packaging- Package Dimensions (W × D × H): 147 × 138 × 80 mm
- Package Weight (with carton & cushioning): 255 g
Certifications- AWS IoT Core Qualified Device: In Review
- CE: In Process
- FCC: In Process
Gateway Capacity
Cloud-connected Data Sensor Tags- 40
Maximum Sensor Inputs (local / API conversion)- 100
Quota Calculation- Cloud-connected and Maximum Sensor quotas are independent and do not consume each other
Activation Control- Cloud sync can be individually enabled or disabled per sensor
License Type- Permanent, bound to Gateway serial number
GoodLinker Cloud Field View
Infrastructure- Cloud Infrastructure: AWS
- Device Connectivity: MQTT over TLS (via AWS IoT Core)
Presentation- Web: Most major browsers (Chrome, Edge, Safari, Firefox); latest version recommended
- Mobile App (iOS): iOS 15.0 or later
- Mobile App (Android): Android 7.0 or later
Data- Data Dashboard Refresh Rate: 1 minute
- Historical Data Storage Interval: 3 minutes
- Data Retention: Up to 3 years (Standard, rolling)
- Offline Buffering: Gateway stores up to ~120 hours of data when disconnected; autouploads on reconnection
Accounts- Included User Accounts: 3 (1 Owner + 2 Users; additional seats available)
- User Roles: Owner / Admin / User; per-user tag-group access control
Export- Data Export Formats: Excel / CSV
Alerts- Alert Features: Conditional alerts + event notifications + alert history; immediate push on anomaly
Upgrade- GenAIoT Module: Available via Premium plan upgrade
Security & Reliability
Device Authentication- X.509 certificate-based, one identity per Gateway
Data in Transit- TLS 1.2+ end-to-end (MQTT / HTTPS)
Data at Rest- AWS-managed KMS encryption
Access Control- Role-based (Owner / Admin / User) with per-tag-group permissions
Mobile App Login- Biometric authentication (Face ID, Touch ID, Android Biometric)
Account Activity- Login and device access logging visible to the account owner
Update Delivery- Automatic OTA updates for Gateway firmware, cloud service, and web application
Reliability- Watchdog with automatic reconnection; Gateway offline buffer up to ~120 hours
Cloud Hosting- Hosted on AWS (ISO 27001 / SOC 2 infrastructure)
-
Package VariantPackage Variant
Component Entry Package Growth Package Premium Package IIoT Gateway Hardware BCS-MX BCS-MX BCS-MX Gateway Capacity Upgrade License N/A N/A LIC-MX-100 Cloud-connected Data Sensor Tags 40 40 100 Maximum Sensor Inputs
(local / API conversion)100 100 300 Cloud Service License (1 Year) GFV-S-3U (Standard) GFV-P-3U (Premium) GFV-P-3U (Premium) Data Retention 3 years (rolling) 10 years (rolling) 10 years (rolling) GenAIoT Module N/A ✓ Included ✓ Included * All software packages include a permanent, non-transferable edge capacity license linked to the unique gateway serial number. -
After-sales service
- Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
- Ships Fast: Orders are processed and shipped within 2 business days.
- 2-Year Global Warranty: Limited hardware warranty from the shipment date.
- 30-Day Return Policy: Satisfaction guarantee window (terms apply).
- Free Shipping: Complimentary shipping on eligible global orders.
- Direct Support: For any usage issues after purchase, please feel free to contact us anytime.
-
Download
-
Contact Us
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw

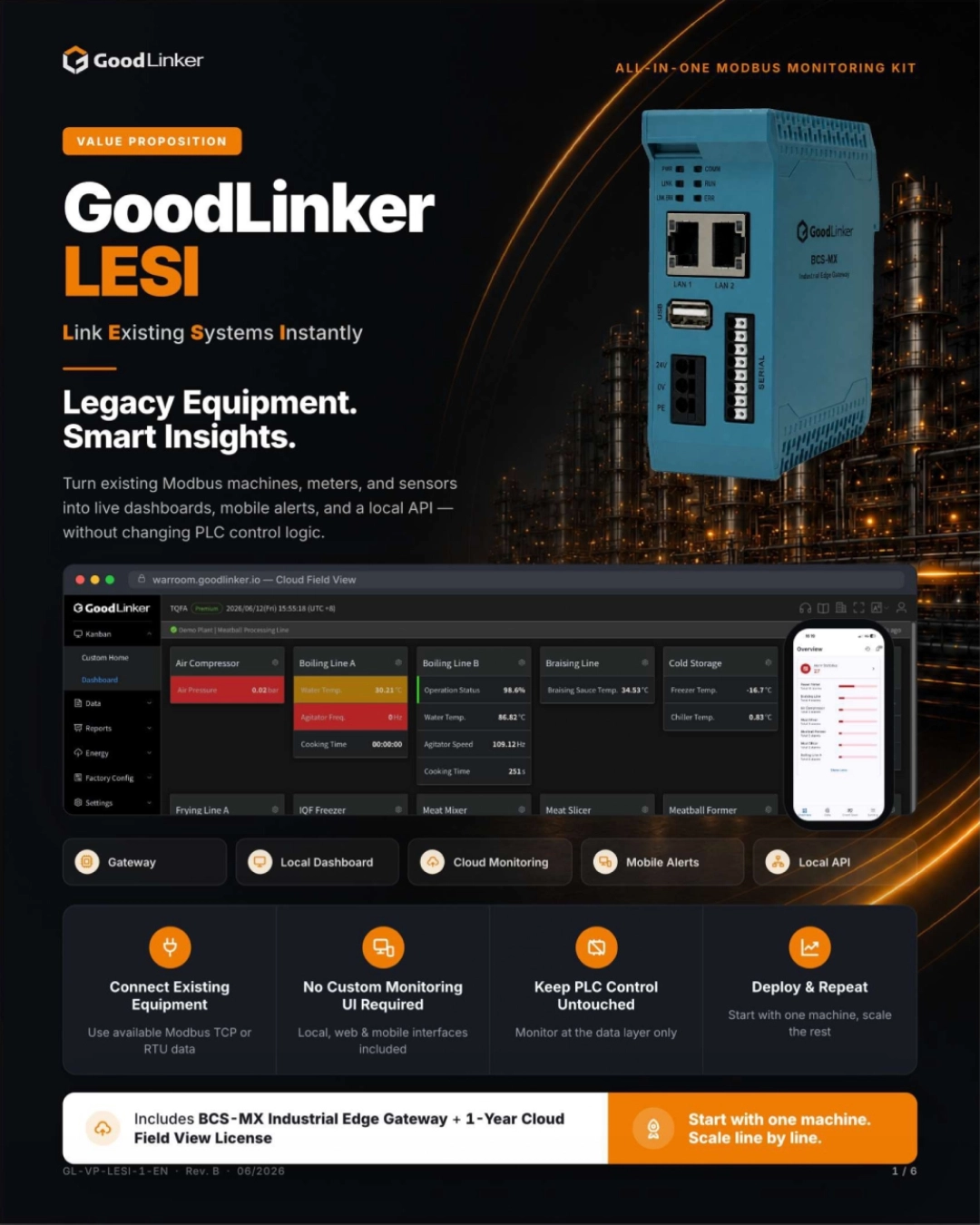

GoodLinker Field-to-Cloud IIoT Solution Package
Field-to-Cloud Monitoring in Hours with No Rip-and-Replace
This is a pre-integrated industrial cloud package, BCS-MX IIoT Gateway + Cloud Field View , that gets field-to-cloud monitoring online in hours without building anything from scratch. Connect existing PLCs, sensors, or power meters via Modbus TCP / RTU. Data flows into the Gateway and shows up on a live web and mobile dashboard, with alert notifications enabled out of the box.
The package is non-intrusive by design. It integrates on top of existing PLC and control system architectures, with no changes to field wiring or control logic. Existing control design is preserved while cloud monitoring, alerts, and historical data are added as a parallel layer.
The Entry package keeps deployment cost low while preserving a clear upgrade path: the same hardware can move to the Premium cloud plan at any time to unlock GenAIoT advanced analytics, extended data retention, and higher tag capacity, without changing the field installation.
01

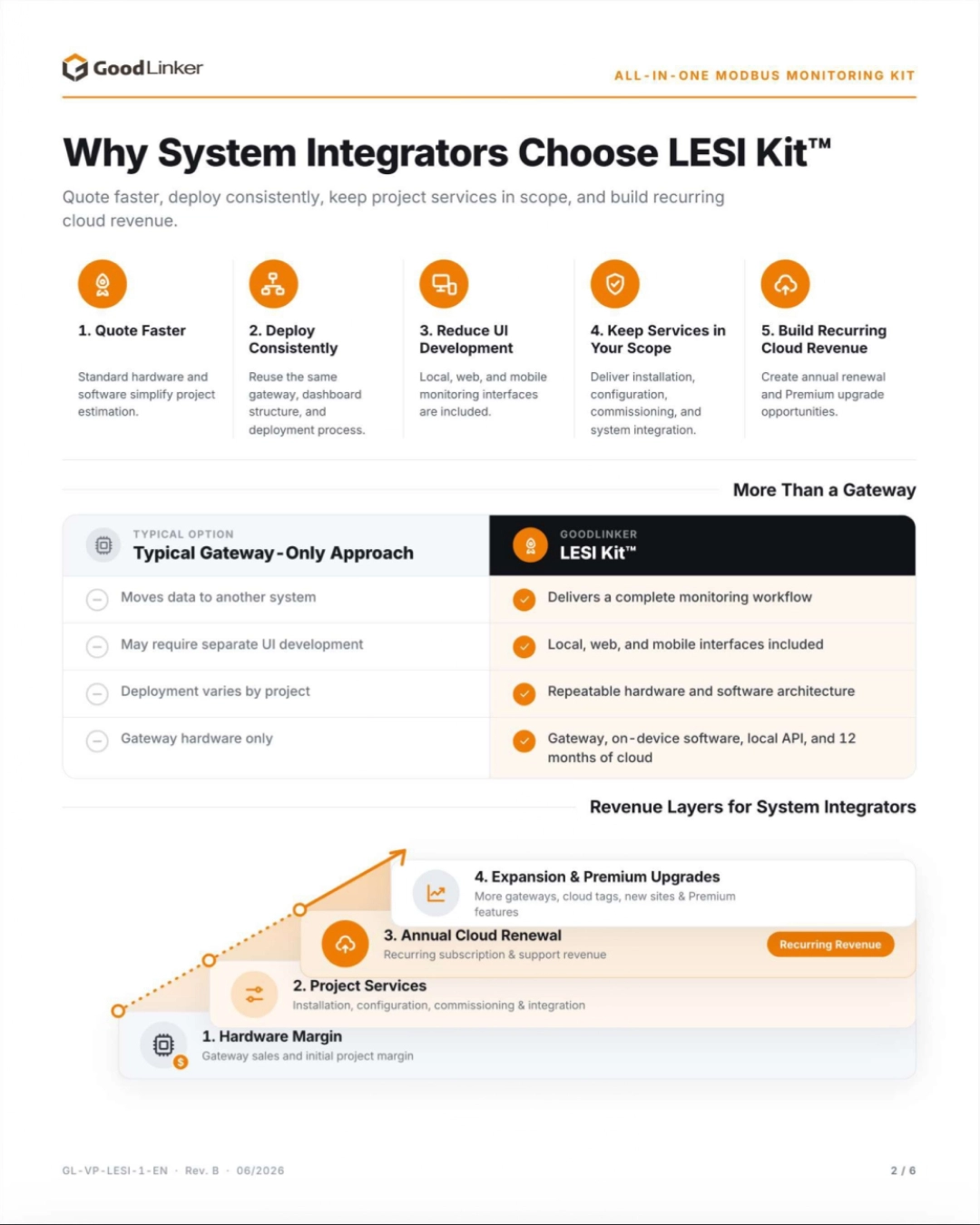

Benefits to the Clients

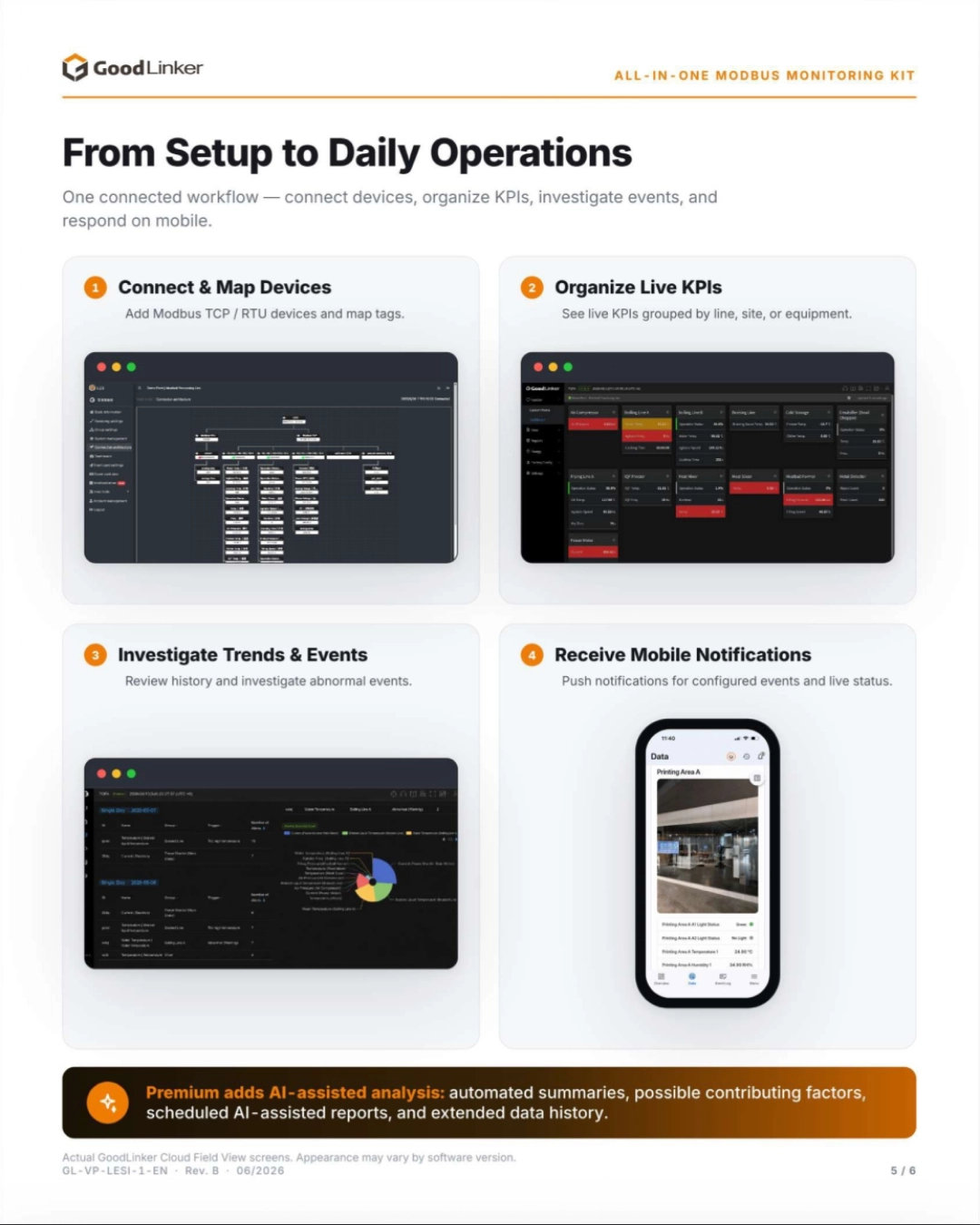

Live Dashboard in Under an Hour
Unbox, connect, configure, and see live data in the same site visit. No custom UI build, no project delay.Works With What's Already There
Standard Modbus TCP / RTU connects to existing PLCs, sensors, and meters. No re-wiring, no PLC logic changes, no rip-and-replace.Local Operation Even When Cloud Is Down
The Gateway runs a real-time dashboard on the local network even when cloud is unreachable, and buffers up to 120 hours of data for automatic upload on reconnection.Repeatable Across Sites
Export one Gateway's configuration as CSV and import it into the next. One configured site becomes the template for the rest, including multisite rollouts.RESTful API for Future Integration
Once Modbus devices are connected to the Gateway, their data is exposed as a documented RESTful API on the local network, ready for MES, EMS, and ERP integration. CSV export keeps your data portable, with no platform lock-in.02

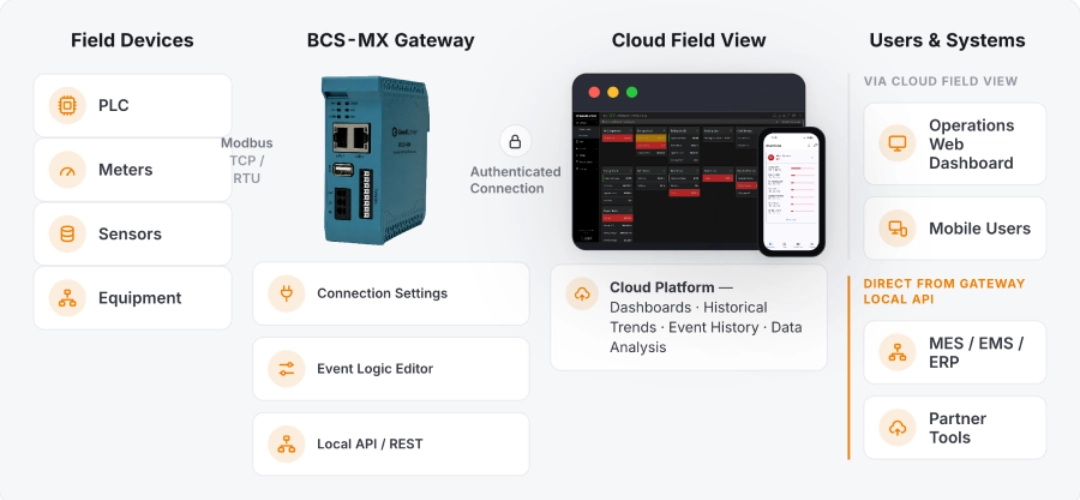

Technical Architecture
03
GoodLinker Cloud Field View Function Modules
Web Application Platform Modules
| Function / Module Block | Entry Package | Growth Package | Premium Package |
|---|---|---|---|
| Live View Dashboards | |||
| Standard Situational Live Dashboard | ✓ | ✓ | ✓ |
| Custom Homepage Interfaces | 3 Views | 7 Views | Unlimited |
| Power Monitoring Integration Module | ✓ | ✓ | ✓ |
| Real-Time Active Shift Telemetry View | ✓ | ✓ | ✓ |
| Intraday Parameter Change Graphs | ✓ | ✓ | ✓ |
| Data Analytics & Archiving Center | |||
| Historical Data Query Hub | ✓ | ✓ | ✓ |
| Excel Historical Log Export Engine | ✓ | ✓ | ✓ |
| Chronological System Event Logging | ✓ | ✓ | ✓ |
| Report Automation Engine | |||
| Universal Trend & Analytical Charts | 3 Charts | 10 Charts | Unlimited |
| GenAIoT Advanced Module Analytics | — | ✓ | ✓ |
| Critical Alarm & Anomaly Tracking Analytics | — | ✓ | ✓ |
| Pre-Configured Excel Report Templates | 3 Templates | 10 Templates | Unlimited |
| Device Monitoring & Diagnostics (30-Day Offline Logs Retained) | |||
| Gateway Hardware Network Offline Logging | ✓ | ✓ | ✓ |
| Component Sensor Connection Status Logs | — | ✓ | ✓ |
| Asset Administration & Tag Control | |||
| Tag Management & Asset Group Permission Mapping | ✓ | ✓ | ✓ |
| Corporate Member Account & Role Authority Controls | ✓ | ✓ | ✓ |
| License Constraints & Cloud Retentions | |||
| Authorized User Accounts included in License | 1 User | 3 Users | 3 Users |
| Granular User Role Permission Matrix | ✓ | ✓ | ✓ |
| Cloud Database Rolling Data Retention | Same-Day Data Only | 3 Years Rolling | 10 Years Rolling (Custom extended retention available) |
Mobile Application Platform Modules (iOS & Android)
| Function / Module Block | Entry Package | Growth Package | Premium Package |
|---|---|---|---|
| Instant Mobile Push Alerts | |||
| Intraday Critical Alarm History Log | ✓ | ✓ | ✓ |
| Individual Sensor Threshold Alarm Monitoring | ✓ | ✓ | ✓ |
| Complex Telemetry Anomaly Push Routing | ✓ | ✓ | ✓ |
| Field Optimization Utilities | |||
| Live On-Site Telemetry Mobile Streaming | ✓ | ✓ | ✓ |
| Physical Worksite Photo & Location Node Mapping | ✓ | ✓ | ✓ |
| Global Facility Operational Status Overviews | ✓ | ✓ | ✓ |
| Mobile Intelligence Analytics | |||
| Historical Parameter Trendline Queries | ✓ | ✓ | ✓ |
| Historical Alarm Log Ledger Archive | ✓ | ✓ | ✓ |
| Automated Prior-Day Alarm Summary Digest | ✓ | ✓ | ✓ |
| Mobile Access Credentials & Retention | |||
| Authorized User Accounts included in License | 1 User | 3 Users | 3 Users |
| Granular Mobile Client Role Management | ✓ | ✓ | ✓ |
| Mobile Database Rolling Data Retention | Same-Day Data Only | 3 Years Rolling | 10 Years Rolling (Custom extended retention available) |
Automated Email Notification Services
| Function / Module Block | Entry Package | Growth Package | Premium Package |
|---|---|---|---|
| Email Notification Capabilities | |||
| Gateway Hardware Network Offline Dispatch Alerts | ✓ | ✓ | ✓ |
| Automated Facility Anomaly Performance Weekly Digest | — | ✓ | ✓ |
