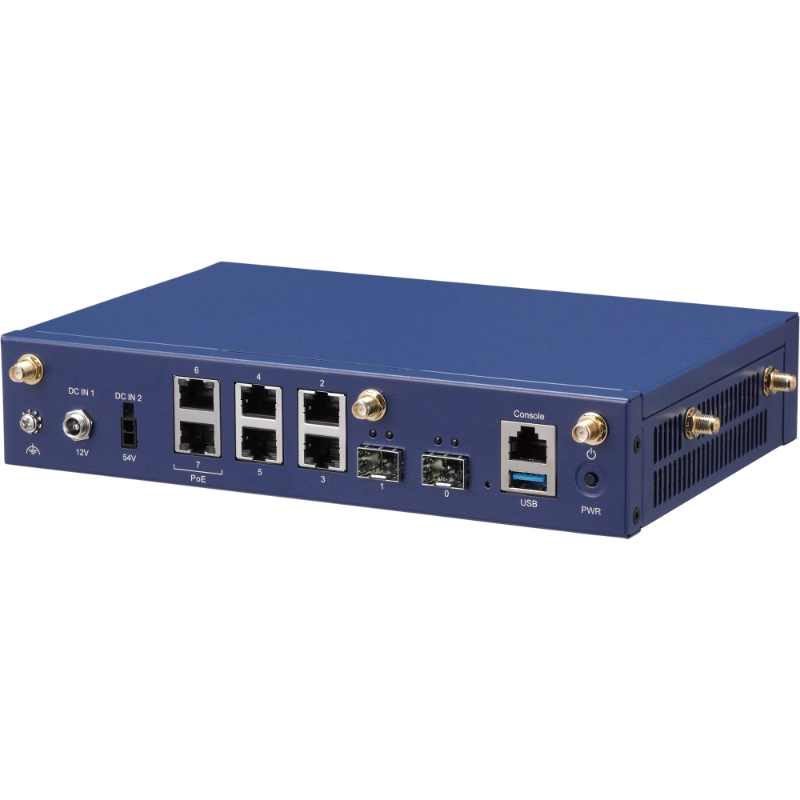

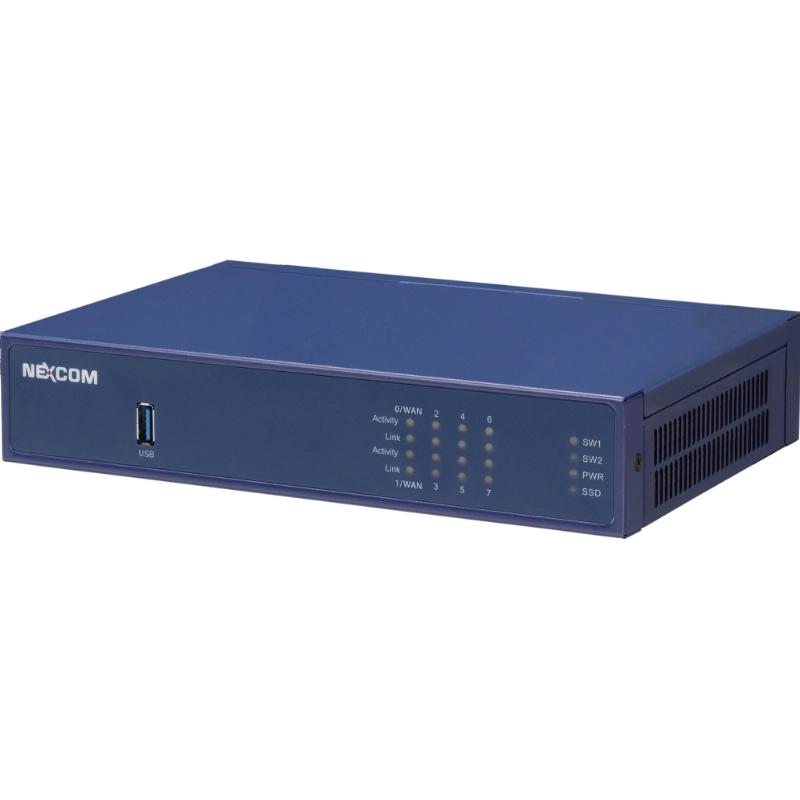

NEXCOM Desktop Network Appliance | DTA 1164W

NEXCOM Desktop Network Appliance | DTA 1164W

Network Function Virtualization and Software-Defined Appliance with Intel Atom® SoC C3000R

Merchandise number：10TA0116408X0

Discounted price:US$
Sale US$
MSRP US$
Use bonus pointspt.

Description：

Intel Atom® processor C3000R series SoC, BGA type
DDR4-2400 ECC memory SO-DIMM, up to 16GB
6 x 1GbE RJ45 + 2 x SFP ports (reserve design to support 8 x 1GbE RJ45)
Two ports with PoE+, supports up to 30W (802.3at)
M.2 SATA 2242 Key M
M.2 3042/3052 for 4G LTE and 5G (FR1)
mini-PCIe slot for Wi-Fi 5 and 6
Supports Intel® QAT
Supports 5G NR NSA/SA network

Download file

Spec.

Main Board
- Intel Atom® processor C3436L, BGA type, 4 cores, 1.30 GHz
- Supports Intel® QAT
Main Memory
- 1 x DDR4-2400 SO-DIMM ECC, up to 16GB
Storage
- 1 x M.2 2242 SATA Key M
LAN Features
- 6 x 1GbE RJ45 + 2 x SFP ports
- Support 10/100/1000 link speed
Interface External
- SW1/SW2/power/SSD LEDs
- Ethernet LED: active/link speed
- 1 x USB 3.0 (support software power control)
- 1 x SIM slot
- 2 x DC-in (12V for system, 54V for PoE)
- 1 x Power button
- 1 x RJ45 console + 1 x USB 3.0 port
- 1 x Reset button
- 2 x Antenna holes for Wi-Fi 5 or 6
- 2 x Antenna holes on each chassis side for 5G/4GLTE support (4 x total)
- 6 x 1GbE RJ45 + 2 x SFP ports
  - Two ports with PoE+, supports up to 30W (802.3at)
  - Two SFP ports can optionally serve as RJ45 ports
Interface-Internal
- mini-PCIe slot for Wi-Fi 5/6 module
- M.2 3042/3052 for 4G LTE/5G (FR1) module
- 1 x M.2 2242 storage socket
- 1 x TPM header
Power
- 65W 12V AC power adapter
- 72W 54V PoE power adapter (optional)
Dimension and Weight
- Chassis dimension (mm): 225mm x 150mm x 44mm (W x D x H)
- Package dimension (mm): 343mm x 258mm x 212mm (W x D x H)
- Without packing: 1.5kg
- With packing: 2.5kg
Environment
- Operating temperature: 0°C~40°C
- Storage temperature: -20°C~80°C
- Relative humidity: 10%~90% non-condensing
Certification
- CE/FCC class B

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
Ships Fast: Orders are processed and shipped within 2 business days.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

We provide a 2-year warranty on all Industrial PC hardware, starting from the shipment date. This covers technical defects in materials and workmanship. During this period, NEXCOM offers repair or replacement services according to the RMA evaluation.

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

NEXCOM DTA 1164W Solution Sheet
NEXCOM DTA 1164W Quick Reference Guide
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw

Specifications
Main Board

Intel Atom® processor C3436L, BGA type, 4 cores, 1.30 GHz

Supports Intel® QAT
Main Memory

1 x DDR4-2400 SO-DIMM ECC, up to 16GB
Storage

1 x M.2 2242 SATA Key M
LAN Features

6 x 1GbE RJ45 + 2 x SFP ports

Support 10/100/1000 link speed
Interface External

SW1/SW2/power/SSD LEDs

Ethernet LED: active/link speed

1 x USB 3.0 (support software power control)

1 x SIM slot

2 x DC-in (12V for system, 54V for PoE)

1 x Power button

1 x RJ45 console + 1 x USB 3.0 port

1 x Reset button

2 x Antenna holes for Wi-Fi 5 or 6

2 x Antenna holes on each chassis side for 5G/4GLTE support (4 x total)

6 x 1GbE RJ45 + 2 x SFP ports

Two ports with PoE+, supports up to 30W (802.3at)

Two SFP ports can optionally serve as RJ45 ports
Interface-Internal

mini-PCIe slot for Wi-Fi 5/6 module

M.2 3042/3052 for 4G LTE/5G (FR1) module

1 x M.2 2242 storage socket

1 x TPM header
Power

65W 12V AC power adapter

72W 54V PoE power adapter (optional)
Dimension and Weight

Chassis dimension (mm): 225mm x 150mm x 44mm (W x D x H)

Package dimension (mm): 343mm x 258mm x 212mm (W x D x H)

Without packing: 1.5kg

With packing: 2.5kg
Environment

Operating temperature: 0°C~40°C

Storage temperature: -20°C~80°C

Relative humidity: 10%~90% non-condensing
Certification

CE/FCC class B

After-sales service

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
Ships Fast: Orders are processed and shipped within 2 business days.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

Download

NEXCOM DTA 1164W Solution Sheet
NEXCOM DTA 1164W Quick Reference Guide
Contact Us
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw

NEXCOM DTA 1164W Desktop Network Appliance

The desktop uCPE DTA 1164W helps small and medium enterprises build a securely connected workplace. Based on Intel's Atom® C3000R processor, the DTA 1164W packs excellent performance per watt and PoE+ functionality, all in a small form factor. This compact network appliance is perfect for cloud native deployments, while its flexible, multiple configuration easily adapts to today's dynamic IT environments.

High-Efficiency Edge Computing

Powered by Intel Atom C3436L 4-core processor (1.30 GHz) with Intel QAT support, delivering reliable performance for virtualized network functions.

6-Port Gigabit LAN Connectivity

Equipped with 6x 1GbE RJ45 ports and 2x SFP fiber ports, including 2x PoE+ ports supplying up to 30W (802.3at) power for local network devices.

Expandable Wireless Capabilities

Features an M.2 3042/3052 slot for 5G NR/4G LTE modules and a mini-PCIe slot for Wi-Fi 5 or Wi-Fi 6 expansion with external antenna holes.

ECC Memory & SSD Storage

Supports 1x DDR4-2400 SO-DIMM ECC memory up to 16GB and 1x M.2 2242 Key M SATA socket for high-reliability data storage.

Compact Enterprise Desktop Design

Small form factor desktop chassis (225 x 150 x 44 mm) with CE/FCC Class B certifications, included 65W power adapter, and dual DC-in support.
