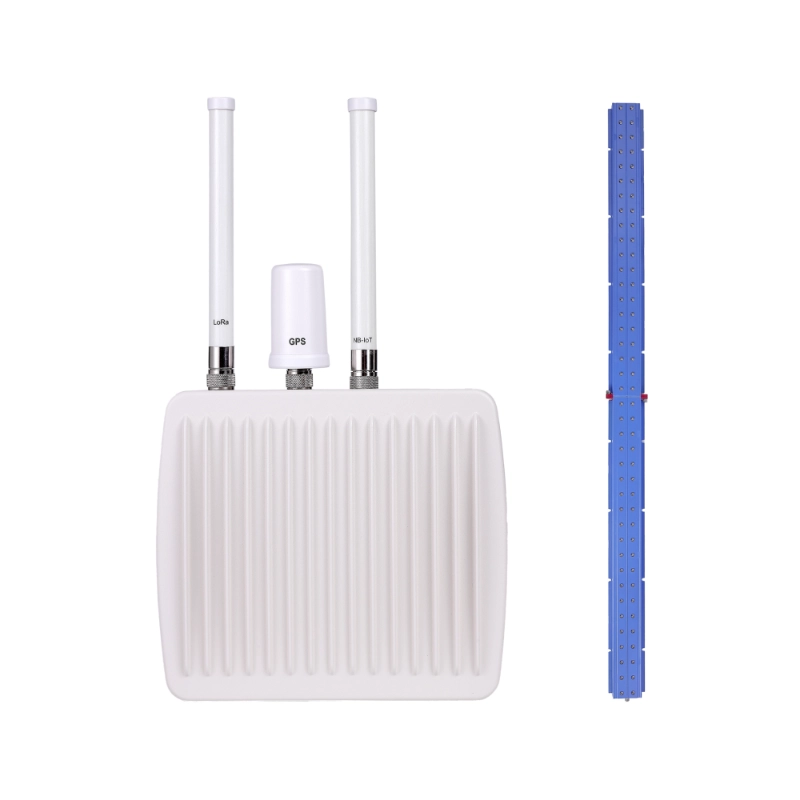

NEXCOM Industrial IoT Data Acquisition System | RN-30 Kit A

NEXCOM Industrial IoT Data Acquisition System | RN-30 Kit A

Data acquisition, data logger, NB-IoT, Staff gauge, water level, EC meter

Merchandise number：10RA000RN02X0 + 10RA000RN01X0 + 10RA000RN05X0

Discounted price:US$
Sale US$
MSRP US$
Use bonus pointspt.

Description：

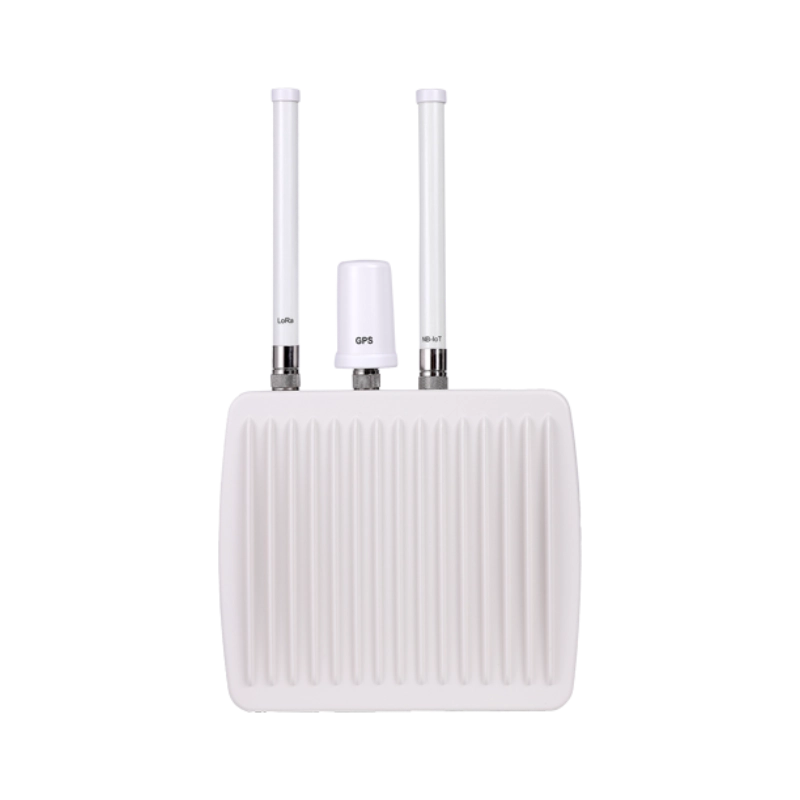

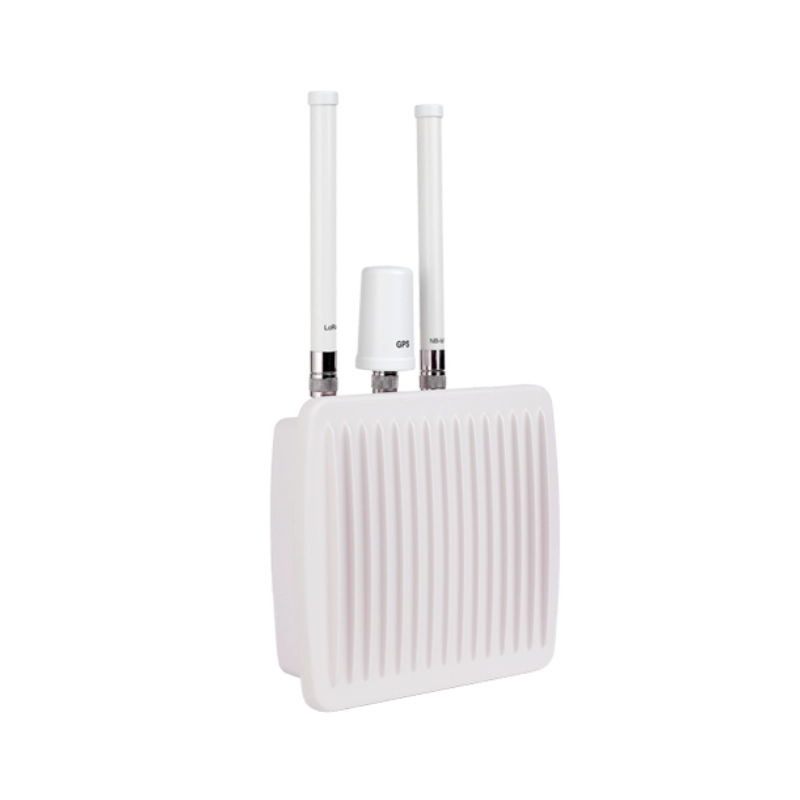

[Data Acquisition System - RN-30-ND01]
- Single sensor port for NEXCOM Smart Staff Gauge or compatible sensor connection
- Provide pre-installed NEXCOM Smart Staff Gauge data acquisition RS-485 MODBUS API
- Support NB-IoT & LoRa wireless data transmitting
- Support both AGPS & GNSS
- Provide 14400 mAh Lithium Battery
- DC 12V, 3-pin IP67 connector
- IP67 rugged design

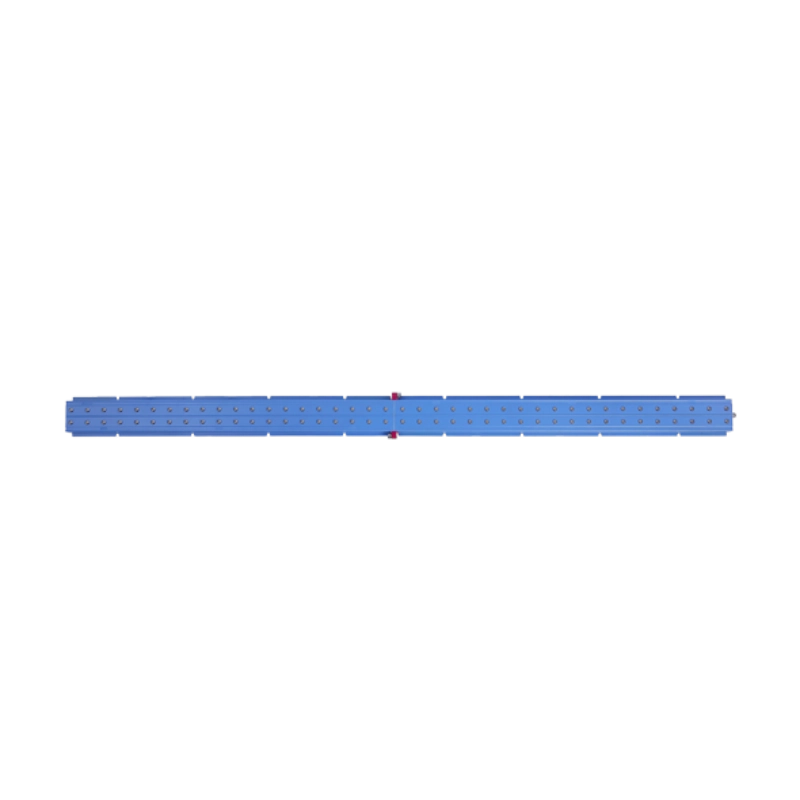

[Smart Staff Gauge - RN-30-SG02]
- Water level measurement range: 0~156cm (0~5.12ft)
- EC measurement range: 0~13000 μs/cm
- Supports RS-485 or SDI-12 protocol
- IP68 design
- Foldable mechanism design

Download file

Including: Basic software, battery, antennas, SD Card, mounting brackets, 10 meters staff gauge cable, 280 cm solar panel cable | Excluded: NB-IoT SIM card

Spec.

Data Acquisition System - Wireless
- NB-IoT: All regions
  - Bands: B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66, B85
  - NB-IoT Antenna Gain: 2 dBi
- LoRa: 863~928MHz
  - LoRa Antenna Gain: 1.6 dBi
- GPS: AGPS & GNSS
  - GPS Antenna Gain: 22 dBi
Data Acquisition System - Data Transmission Interval
- 5~60 minutes, user define

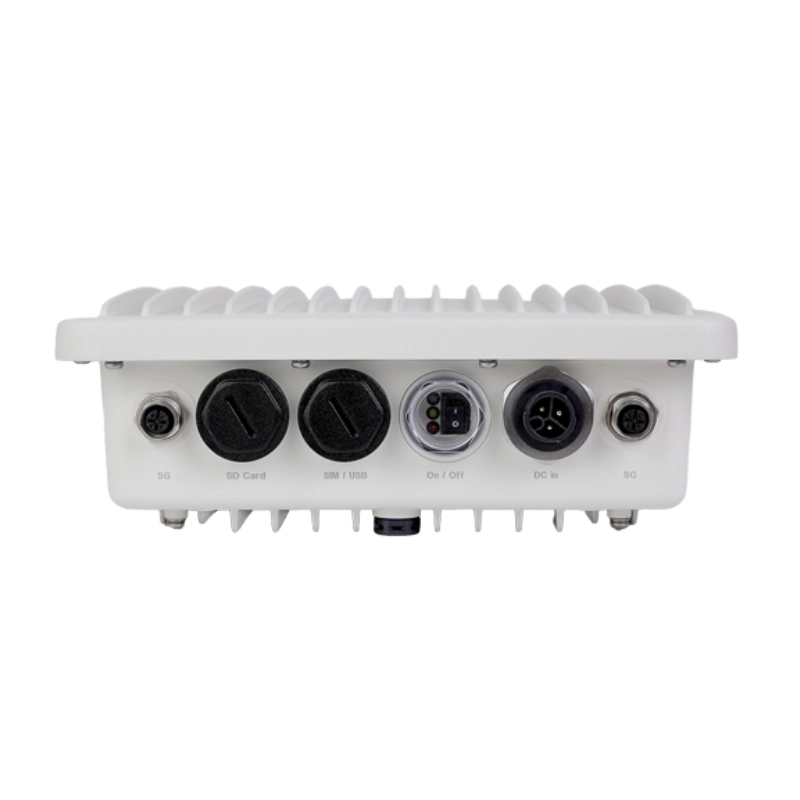

Data Acquisition System - I/O Interface
- Sensor port: Single sensor port (M12 A-Coded 5-pin female connector) for NEXCOM Smart Staff Gauge or compatible sensor connection
- Power On/Off switch
- Solar panel or DC input
- SIM card socket
- SD card socket
- Antenna: NB-IoT, LoRa, and GPS
Data Acquisition System - User Setting Item
- Device ID, Database IP, SIM card, APN
- Data transmission interval, LoRa ID
- Staff Gauge type, Height origin, etc.
Data Acquisition System - Battery
- 14400 mAh Lithium Battery
- Support 28 days of operation with one RN-30-SG02, transmitting data at ten-minute intervals
Data Acquisition System - Power Supply
- DC 12V, 3-pin IP67 connector
- Typical power consumption:
  - Sleep mode: 440mW
  - Active mode: 860mW
  - Wireless transmission: 1100mW
Data Acquisition System - Mechanical
- 438 (L) x 257 (W) x 90 (H) mm / 17.2 (L) x 10.1 (W) x 3.5 (H) inches
- Aluminum alloy chassis
- IP67 design
Data Acquisition System - Mounting
- Mounting holes: 60mm x 60mm
- Screw: M6 x 12 mm, 4 pcs
- Robust pole mount kit with adjustable angle (optional accessory)
Data Acquisition System - Environment
- Operating temperature: Ambient with air flow: -10°C~60°C (14°F~140°F)
- Storage temperature: -20°C~80°C (-4°F~176°F)
- Relative humidity: 10%~90% (non-condensing)
- Vibration protection: Random: 1.15 Grms@1~200Hz
Data Acquisition System - Certifications
- CE
- FCC
Smart Staff Gauge - Water level measurement
- Range: 0~156cm (0~5.12ft)
- Accuracy: ±1cm
Smart Staff Gauge - EC measurement
- Range: 0~13000 μs/cm
- Resolution: 0.1%
- Accuracy@25°C, ±5% full scale
Smart Staff Gauge - Temperature sensor
- Temperature sensor: 6 sensors
- Range: 0~75°C (32~167°F)
- Resolution: 1°C
Smart Staff Gauge - Power Supply
- DC 9~12V
- Typical power consumption: 60mW
Smart Staff Gauge - I/O Interface
- RS-485 or SDI-12 (customized)
- DC input 9~12V
- M12 A-Coded 5-pin female connector
Smart Staff Gauge - Dimensions
- 1587 (L) x 97 (W) x 30 (H) mm / 62.5 (L) x 3.8 (W) x 1.2 (H) inches
- RN-30-SG02 Folded: 793 (L) x 105 (W) x 60 (H) mm / 31.2 (L) x 4.1 (W) x 2.4 (H) inches
Smart Staff Gauge - Mounting
- Supplied with dedicated mounting brackets
Smart Staff Gauge - Certifications
- CE
- FCC

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

We provide a 2-year warranty on all Industrial PC hardware, starting from the shipment date. This covers technical defects in materials and workmanship. During this period, NEXCOM offers repair or replacement services according to the RMA evaluation.

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw

Specifications
Data Acquisition System - Wireless

NB-IoT: All regions

Bands: B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66, B85

NB-IoT Antenna Gain: 2 dBi

LoRa: 863~928MHz

LoRa Antenna Gain: 1.6 dBi

GPS: AGPS & GNSS

GPS Antenna Gain: 22 dBi
Data Acquisition System - Data Transmission Interval

5~60 minutes, user define
Data Acquisition System - I/O Interface

Sensor port: Single sensor port (M12 A-Coded 5-pin female connector) for NEXCOM Smart Staff Gauge or compatible sensor connection

Power On/Off switch

Solar panel or DC input

SIM card socket

SD card socket

Antenna: NB-IoT, LoRa, and GPS
Data Acquisition System - User Setting Item

Device ID, Database IP, SIM card, APN

Data transmission interval, LoRa ID

Staff Gauge type, Height origin, etc.
Data Acquisition System - Battery

14400 mAh Lithium Battery

Support 28 days of operation with one RN-30-SG02, transmitting data at ten-minute intervals
Data Acquisition System - Power Supply

DC 12V, 3-pin IP67 connector

Typical power consumption:

Sleep mode: 440mW

Active mode: 860mW

Wireless transmission: 1100mW
Data Acquisition System - Mechanical

438 (L) x 257 (W) x 90 (H) mm / 17.2 (L) x 10.1 (W) x 3.5 (H) inches

Aluminum alloy chassis

IP67 design
Data Acquisition System - Mounting

Mounting holes: 60mm x 60mm

Screw: M6 x 12 mm, 4 pcs

Robust pole mount kit with adjustable angle (optional accessory)
Data Acquisition System - Environment

Operating temperature: Ambient with air flow: -10°C~60°C (14°F~140°F)

Storage temperature: -20°C~80°C (-4°F~176°F)

Relative humidity: 10%~90% (non-condensing)

Vibration protection: Random: 1.15 Grms@1~200Hz
Data Acquisition System - Certifications

CE

FCC
Smart Staff Gauge - Water level measurement

Range: 0~156cm (0~5.12ft)

Accuracy: ±1cm
Smart Staff Gauge - EC measurement

Range: 0~13000 μs/cm

Resolution: 0.1%

Accuracy@25°C, ±5% full scale
Smart Staff Gauge - Temperature sensor

Temperature sensor: 6 sensors

Range: 0~75°C (32~167°F)

Resolution: 1°C
Smart Staff Gauge - Power Supply

DC 9~12V

Typical power consumption: 60mW
Smart Staff Gauge - I/O Interface

RS-485 or SDI-12 (customized)

DC input 9~12V

M12 A-Coded 5-pin female connector
Smart Staff Gauge - Dimensions

1587 (L) x 97 (W) x 30 (H) mm / 62.5 (L) x 3.8 (W) x 1.2 (H) inches

RN-30-SG02 Folded: 793 (L) x 105 (W) x 60 (H) mm / 31.2 (L) x 4.1 (W) x 2.4 (H) inches
Smart Staff Gauge - Mounting

Supplied with dedicated mounting brackets
Smart Staff Gauge - Certifications

CE

FCC

After-sales service

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

NEXCOM RN-30 Kit Industrial IoT Data Acquisition System

Industrial IoT Data Acquisition System for Smart Water & Environmental Monitoring

This package Including Basic software, battery, antennas, SD Card, mounting brackets, 10 meters staff gauge cable, 280 cm solar panel cable.
NOT indlude: NB-IoT SIM card
All-in-One Smart Staff Gauge is designed for flood monitoring and water resilience. By integrating NB-IoT connectivity with electrical conductivity (EC) and water temperature measurements at multiple depths, the device provides a highly integrated, near-real-time monitoring solution that delivers reliable early warnings across diverse hydrological environments.

Data Acquisition (Big Data)

Reliable data acquisition devices collect near-real-time information on water levels, temperature, and electrical conductivity (EC).

Provides water level, multi-depth EC, water temperature, and sediment level information.

Provides water level measurements together with multi-depth EC, water temperature, and sediment level information for a more comprehensive understanding of water conditions.

Fully Integrated Software and UI

The fully integrated software features an intuitive user interface (UI) that provides detailed water level information, historical data downloads, and trend charts, enabling users to remotely monitor water conditions in real time.

High-Efficiency Solar Charging and Built-in Battery

A high-efficiency solar charging system and integrated energy storage Lithium battery provide reliable power for long-term standalone operation.

Rugged Outdoor Design

Engineered for reliable long-term outdoor monitoring in harsh environments.
