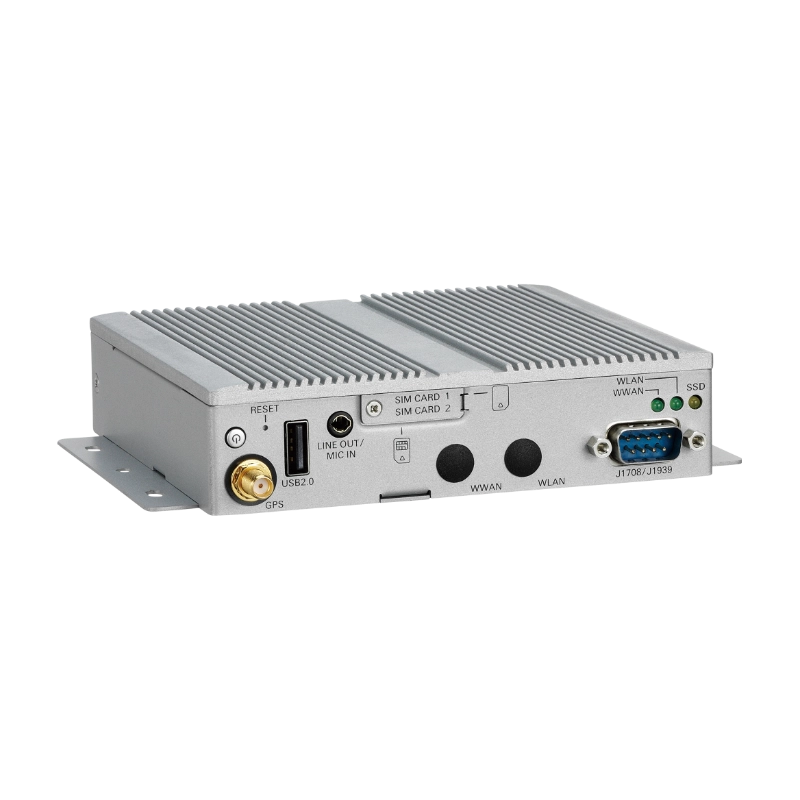

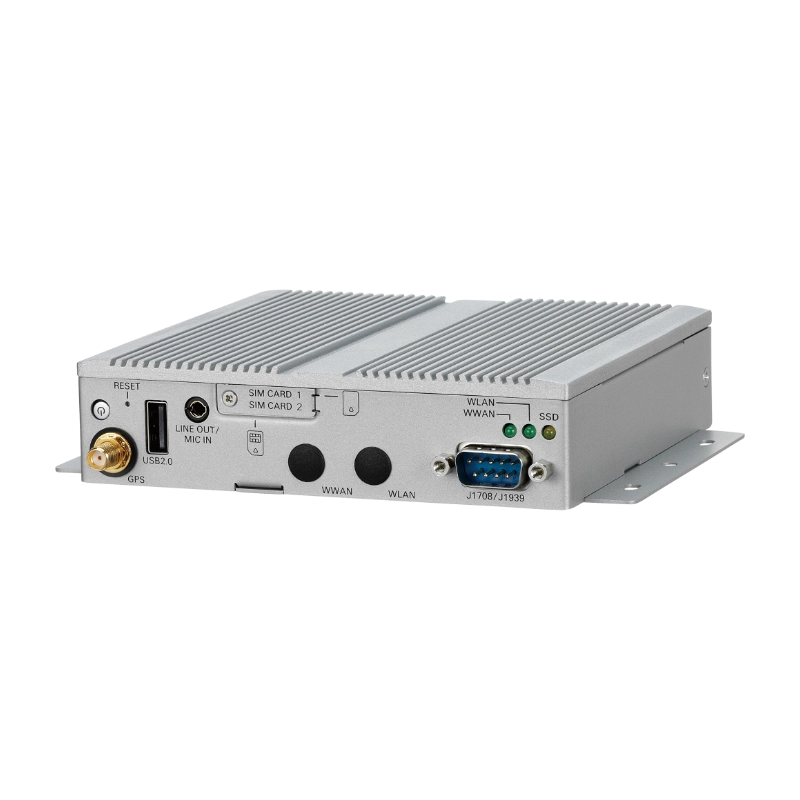

NEXCOM Fanless Embedded Computer | VTC1910-S

NEXCOM Fanless Embedded Computer | VTC1910-S

NEXCOM VTC 1910-S:
Powerhouse Performance, Miniature Package

Merchandise number：10V00191002X0

Discounted price:US$
Sale US$
MSRP US$
Use bonus pointspt.

Description：

Robust and compact design:
Featuring a super slim and ruggedized form factor, the NEXCOM VTC 1910-S is built to withstand harsh environments.
Powerful yet efficient:
Equipped with an Intel Atom® processor E3815, the NEXCOM VTC 1910-S delivers reliable performance while consuming minimal power.
Comprehensive connectivity:
With built-in CAN 2.0B and optional SAE J1939/J1708 modules, the NEXCOM VTC 1910-S seamlessly integrates with various vehicle systems.
Precise positioning:
The integrated U-blox M8N GPS ensures accurate location tracking.
Flexible communication:
Dual SIM card slots support a wide range of WWAN modules for versatile connectivity options.

Download file

Spec.

CPU Support
- Intel Atom® processor Bay Trail E3815, 1.46GHz
Main Memory
- 1 x 204-pin DDR3L SO-DIMM socket support 1066MHz/ 1333MHz up to 8GB. Default 4GB

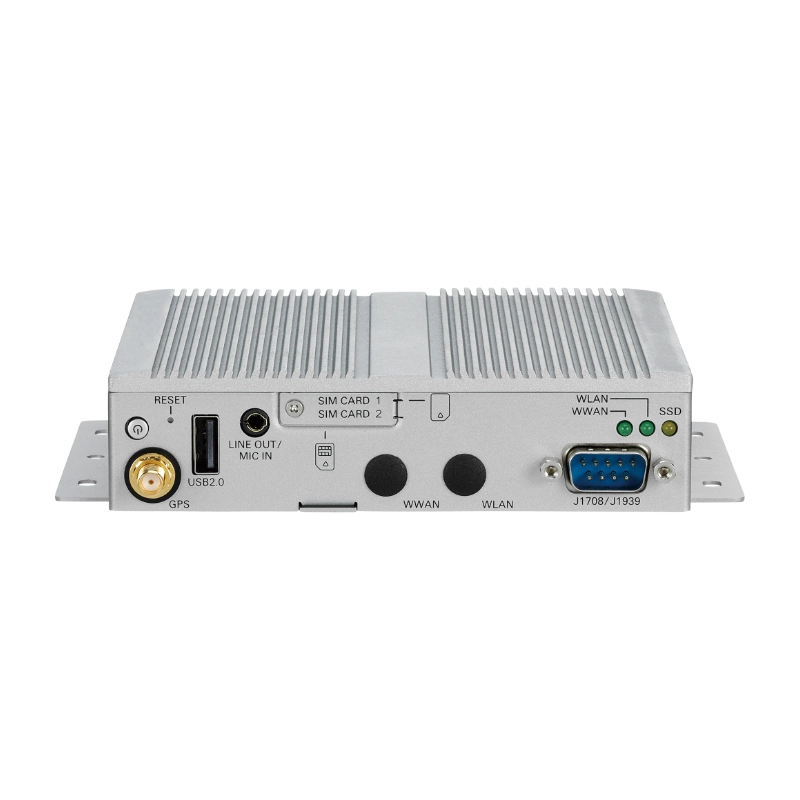

Front I/O Interface
- 1 x power button with LED
- 3 x LED for WWAN, WLAN, SSD
- 1 x Reset button
- 2 x SIM socket (Micro Type) with cover
- 1 x DB9 connector for optional SAE J1939 and J1708 modules
- 1 x Line-out/ MIC-In
- 1 x Type A USB 2.0 compliant host, supporting system boot up
- 3 x antenna hole for GPS/ WWAN/ WLAN

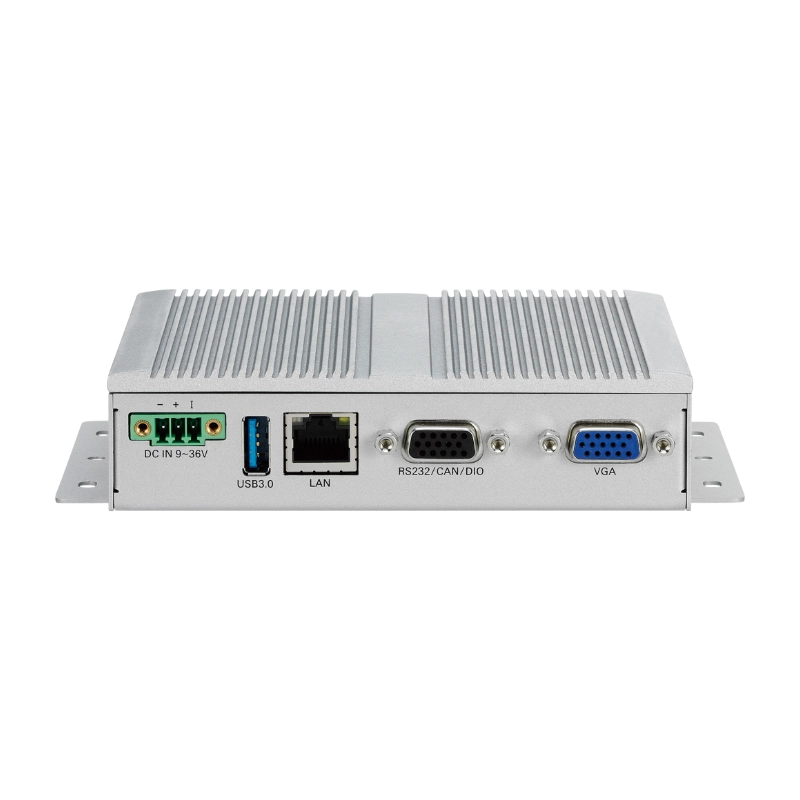

Rear I/O Interface
- 1 x Phoenix connector for Power/GND/Ignition input
- 1 x Type A USB 3.0 compliant host, supporting system boot up
- 1 x RJ45 10/100/1000 Fast Ethernet with LED
- 1 x DB15 VGA, resolution up to 2560 x 1600 @60Hz
- 1 x DB15 for 2 x RS232 (TX/RX), 1 x RS485 (TX/RX),1 x CAN 2.0B, 3 x DI, 3 x DO
Storage Device
- 1 x mSATA
- 1 x SATA DOM
Expansion Slot
- 1 x Full size mini-PCIe socket (USB 2.0)
- 1 x Full size mini-PCIe socket (mSATA + PCIe)
Function
- 1 x u-blox NEO-M8N on board (support GPS/Glonass/QZSS/Galileo/BeiDou)
- Built-in G-sensor
- TPM2.0
Power Requirement
- Selectable boot-up & shut-down voltage for low power protection by software
- Setting 8-level power on/ off delay time by software
- Status of ignition and low voltage can be detected by software
- Support S3/ S4 suspend mode
Dimensions
- 130mm (W) x 120mm (D) x 32mm (H) ( 5.12” x 4.72” x 1.26”)
Environment
- Operating temperatures: -40°C to 70°C
- Storage temperatures: -45°C to 85°C
- Damp Heat Test per EN60068-2-30
- Humidity:
  - IEC60068-2-3, Damp Heat Steady State Test,40C,95%,48Hrs
- Vibration:
  - IEC 60068-2-64, 2G
- Operating: MIL-STD-810G, 514.6C Procedure 1, Category 4
- Storage: MIL-STD-810G, 514.6E Procedure 1, Category 24
- Shock:
  - MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers=40g
- Crash hazard: Procedure V, ground equipment=75g
Certification
- CE approval
- FCC Class B
- E13 mark
OS Support Lists
- Windows 10
- Windows 8, WES8
- Windows 7, WES7
- Linux (by request)
Weight Information
- 0.6 kg

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
Ships Fast: Orders are processed and shipped within 2 business days.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

We provide a 2-year warranty on all Industrial PC hardware, starting from the shipment date. This covers technical defects in materials and workmanship. During this period, NEXCOM offers repair or replacement services according to the RMA evaluation.

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

NEXCOM VTC 1910-S Datasheet
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Access NEXCOM Industrial Solutions on Our Official Online Channels:

Specifications
CPU Support

Intel Atom® processor Bay Trail E3815, 1.46GHz
Main Memory

1 x 204-pin DDR3L SO-DIMM socket support 1066MHz/ 1333MHz up to 8GB. Default 4GB
Front I/O Interface

1 x power button with LED

3 x LED for WWAN, WLAN, SSD

1 x Reset button

2 x SIM socket (Micro Type) with cover

1 x DB9 connector for optional SAE J1939 and J1708 modules

1 x Line-out/ MIC-In

1 x Type A USB 2.0 compliant host, supporting system boot up

3 x antenna hole for GPS/ WWAN/ WLAN
Rear I/O Interface

1 x Phoenix connector for Power/GND/Ignition input

1 x Type A USB 3.0 compliant host, supporting system boot up

1 x RJ45 10/100/1000 Fast Ethernet with LED

1 x DB15 VGA, resolution up to 2560 x 1600 @60Hz

1 x DB15 for 2 x RS232 (TX/RX), 1 x RS485 (TX/RX),1 x CAN 2.0B, 3 x DI, 3 x DO
Storage Device

1 x mSATA

1 x SATA DOM
Expansion Slot

1 x Full size mini-PCIe socket (USB 2.0)

1 x Full size mini-PCIe socket (mSATA + PCIe)
Function

1 x u-blox NEO-M8N on board (support GPS/Glonass/QZSS/Galileo/BeiDou)

Built-in G-sensor

TPM2.0
Power Requirement

Selectable boot-up & shut-down voltage for low power protection by software

Setting 8-level power on/ off delay time by software

Status of ignition and low voltage can be detected by software

Support S3/ S4 suspend mode
Dimensions

130mm (W) x 120mm (D) x 32mm (H) ( 5.12” x 4.72” x 1.26”)
Environment

Operating temperatures: -40°C to 70°C

Storage temperatures: -45°C to 85°C

Damp Heat Test per EN60068-2-30

Humidity:
- IEC60068-2-3, Damp Heat Steady State Test,40C,95%,48Hrs

Vibration:
- IEC 60068-2-64, 2G

Operating: MIL-STD-810G, 514.6C Procedure 1, Category 4

Storage: MIL-STD-810G, 514.6E Procedure 1, Category 24

Shock:
- MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers=40g

Crash hazard: Procedure V, ground equipment=75g
Certification

CE approval

FCC Class B

E13 mark
OS Support Lists

Windows 10

Windows 8, WES8

Windows 7, WES7

Linux (by request)
Weight Information

0.6 kg

After-sales service

Own Brand, Own Factory Production: High-quality assurance and global fast shipping.
Ships Fast: Orders are processed and shipped within 2 business days.
2-Year Global Warranty: Limited hardware warranty from the shipment date.
30-Day Return Policy: Satisfaction guarantee window (terms apply).
Free Shipping: Complimentary shipping on eligible global orders.
Direct Support: For any usage issues after purchase, please feel free to contact us anytime.

NEXCOM Return & Warranty Policy

1. Return Window (30 Days)

Customers may request a return or exchange within 30 days. The period is calculated from the shipment date (as shown on the invoice) to the date the return request is formally submitted.

* Please note: A "Return" (for refund) is distinct from our "2-Year Hardware Warranty" (for repair).

2. 2-Year Limited Warranty

3. Return Conditions

Items must be in original, unused condition with all original packaging, manuals, and accessories.
Customized Orders: IPCs with specific custom configurations (e.g., custom RAM/SSD/OS) are Non-Returnable unless a hardware defect is confirmed.
Electronic components must be returned in their original anti-static packaging.

4. Shipping & Destination

All returns must be shipped back to our headquarters in Taiwan:

Return Address:
NEXCOM International Co., Ltd.
9F, No.920, Zhongzheng Rd., Zhonghe Dist.,
New Taipei City, Taiwan 235015

Scenario	Cost Responsibility
Defective Items (DOA)	Seller covers return shipping.
Non-Defective Returns	Buyer covers shipping and duties. Restocking fees will be quoted based on actual inspection of the returned unit.

5. RMA Procedure

To initiate a return, please email us at ecommerce@nexcom.com.tw to obtain an RMA number.

* Shipments without an RMA number clearly marked on the outer box will be refused and returned at the sender's expense.

Contact Us: ecommerce@nexcom.com.tw
NEXCOM International Co., Ltd. | Industrial Computing Solutions

Download

NEXCOM VTC 1910-S Datasheet
Contact Us
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
Online Shopping

Access NEXCOM Industrial Solutions on Our Official Online Channels:

NEXCOM VTC 1910-S Industrial PC

Revolutionize Your Fleet with the NEXCOM VTC 1910-S

Experience the future of vehicle telematics with the NEXCOM VTC 1910-S. This compact powerhouse, powered by the Intel Atom® processor E3815, is designed to withstand the harshest in-vehicle environments while delivering exceptional performance.

Key Features

Rugged and Reliable:
Built to military-grade standards (MIL-STD-810G), the NEXCOM VTC 1910-S is engineered for durability and longevity.
Compact Design:
Its slim profile makes it ideal for space-constrained vehicles, ensuring seamless integration.
Advanced Connectivity:
Equipped with CAN 2.0B, OBD, and GPS/Glonass/QZSS/Galileo/Beidou, the NEXCOM VTC 1910-S provides robust communication capabilities.
High-Speed Wireless:
Benefit from lightning-fast data transfer with WLAN and WWAN connectivity.
Flexible Deployment:
Tailor the NEXCOM VTC 1910-S to your specific needs with its versatile design and customizable features.

Product Advantages

Engineered for durability:
Designed to operate in extreme temperatures (-40°C to 70°C), the NEXCOM VTC 1910-S is built to last.
Smart power management:
The intelligent power management system, including ignition on/off delay and low voltage protection, optimizes battery life.
Global compliance:
Certified by CE, FCC, and E13, the NEXCOM VTC 1910-S meets international safety and regulatory standards.

Product Applications

Ideal for demanding applications:
The NEXCOM VTC 1910-S is the perfect solution for a wide range of applications, including fleet management, telematics, and industrial automation.
Built for the road:
With its rugged design and comprehensive connectivity options, the NEXCOM VTC 1910-S is the ideal in-vehicle computing platform.

Unlock the Potential of Vehicle Telematics

The NEXCOM VTC 1910-S empowers you to:

Optimize Fleet Operations:
Gain real-time insights into vehicle performance, fuel consumption, and driver behavior.
Enhance Safety:
Implement proactive maintenance and safety measures to reduce downtime and accidents.
Improve Efficiency:
Streamline logistics and optimize route planning for maximum productivity.
Boost Customer Satisfaction:
Deliver exceptional service through timely and accurate information.
