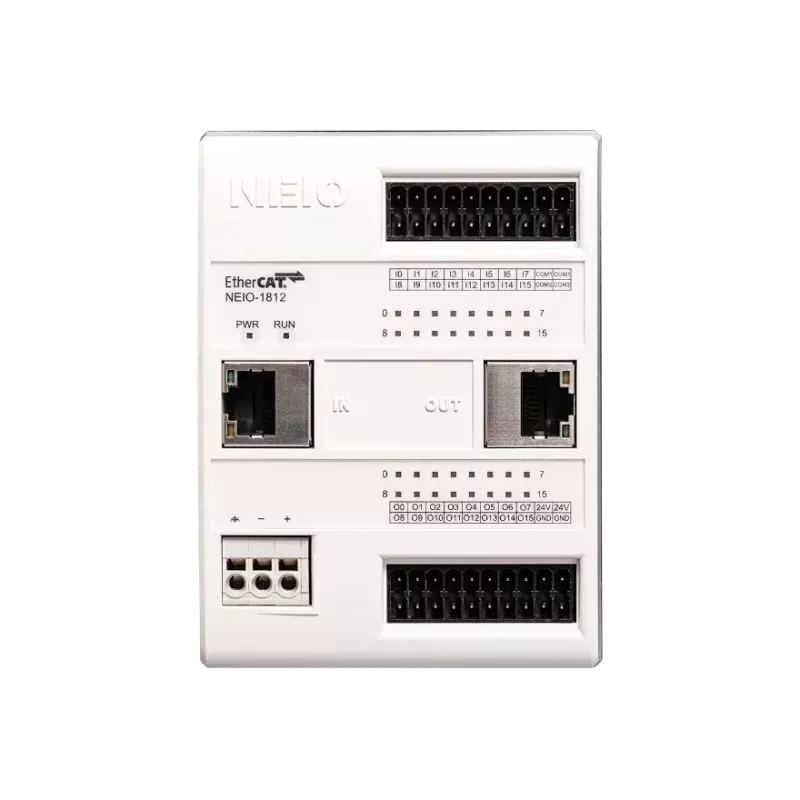

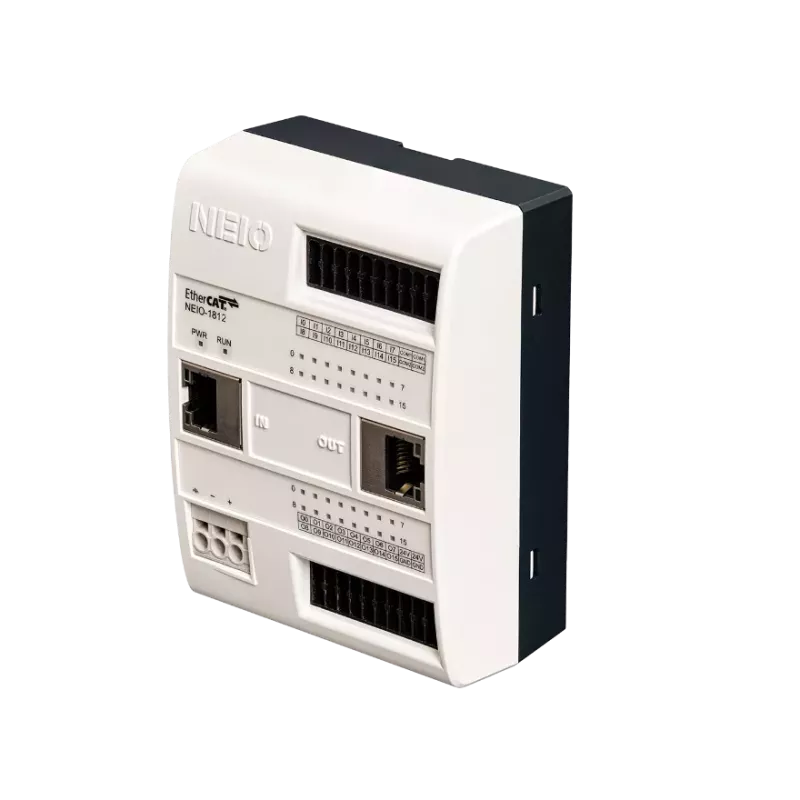

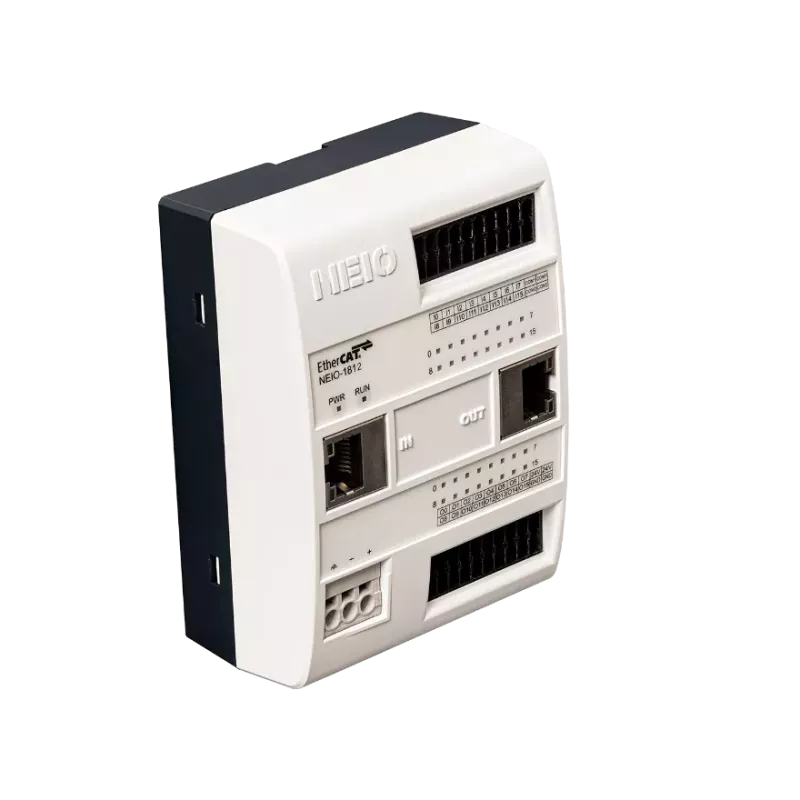

NexCOBOT Digital I/O | NEIO-1812
Compact Powerhouse: Your Smart, Scalable I/O Solution
Merchandise number：10J80181202X0
Description：
- IEC 61131-2 Compliant:
Ensures seamless integration into your automation systems. - Palm-Sized Perfection:
Compact design for flexible installation in tight spaces. - Versatile I/O:
16-channel digital input (PNP/NPN) and 16-channel digital output (NPN) with 2.5 kV isolation for reliable operation in harsh environments. - Intelligent Connectivity:
Smart Daisy-chain design simplifies network configuration and expansion. - Visual Feedback:
On-module LED indicators provide real-time status. - Easy Installation:
Detachable screw terminals for quick and easy wiring. - Increased Efficiency:
Streamline your automation processes with a compact and versatile I/O module. - Enhanced Reliability:
2.5 kV isolation protects against electrical noise and surges. - Flexible Deployment:
Daisy-chain multiple modules for scalable I/O configurations. - Simplified Troubleshooting:
On-module LEDs provide clear visual diagnostics. - Future-Proof:
IEC 61131-2 compliance ensures compatibility with a wide range of automation systems.
Download file
-
Digital Input
- Number of Inputs: 16
- Input Type: PNP/NPN
- Input Voltage: 24 VDC
- On-State Voltage, “1”
- Sinking logic (PNP): 11–30 V (IEC 61131-2, type3)
- Sourcing logic (NPN): 0–15 V - Off-State Voltage,”0”
- Sinking Logic (PNP): -3–5 V (IEC 61131-2, type3)
- Sourcing Logic (NPN): 17–30 V - Input Filter: 3 ms (±15%）
- Isolation Protection: 2.5 kV
Digital Output- Number of Outputs: 16
- Output Type: PNP
- Output Voltage: 24 VDC
- Load Type: Resistive, Capacitive, Inductive
- Max. Output Current: 500 mA/CH
- Switching Times:
- Off to On: 100 μs
- On to Off: 150 μs - Isolation Protection: 2.5 kV
Communication- Protocol: EtherCAT
- Bus Interface: 2 x RJ-45
- Media: Ethernet cable (min. CAT5), shielded
- Distance Between Stations: maximum. 100m (100BASE-TX)
- Data Transfer Rate: 100 Mbps
Power Requirements- DC Input Range: 24 VDC (±20%)
Mechanical Information- Dimensions (W x H x D): 77.8 x 104.5 x 51.84 mm
- Mounting: Din-rail (35 mm mounting clip)
Environment- Operating Temperature: -5 °C–60 °C
- Storage Temperature: -40°C–85°C
- Relative humidity: 5 –95% (non-condensing)
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6, IEC 60068-2-64
- Enclosure type rating: IP20
Certifications- CE/FCC Class A
Warranty- 2 years global warranty
-
- Own Brand, Own Factory Production, Global Fast Shipping
- Ships within 2 business days after ordering.
- 2-year global warranty.
- 30-day return policy.
- Free shipping.
- For any usage issues after purchase, please feel free to contact us anytime.
- NEXCOM NEIO-1812 Datasheet
-
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
-
SpecificationsDigital Input
- Number of Inputs: 16
- Input Type: PNP/NPN
- Input Voltage: 24 VDC
- On-State Voltage, “1”
- Sinking logic (PNP): 11–30 V (IEC 61131-2, type3)
- Sourcing logic (NPN): 0–15 V - Off-State Voltage,”0”
- Sinking Logic (PNP): -3–5 V (IEC 61131-2, type3)
- Sourcing Logic (NPN): 17–30 V - Input Filter: 3 ms (±15%）
- Isolation Protection: 2.5 kV
Digital Output- Number of Outputs: 16
- Output Type: PNP
- Output Voltage: 24 VDC
- Load Type: Resistive, Capacitive, Inductive
- Max. Output Current: 500 mA/CH
- Switching Times:
- Off to On: 100 μs
- On to Off: 150 μs - Isolation Protection: 2.5 kV
Communication- Protocol: EtherCAT
- Bus Interface: 2 x RJ-45
- Media: Ethernet cable (min. CAT5), shielded
- Distance Between Stations: maximum. 100m (100BASE-TX)
- Data Transfer Rate: 100 Mbps
Power Requirements- DC Input Range: 24 VDC (±20%)
Mechanical Information- Dimensions (W x H x D): 77.8 x 104.5 x 51.84 mm
- Mounting: Din-rail (35 mm mounting clip)
Environment- Operating Temperature: -5 °C–60 °C
- Storage Temperature: -40°C–85°C
- Relative humidity: 5 –95% (non-condensing)
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6, IEC 60068-2-64
- Enclosure type rating: IP20
Certifications- CE/FCC Class A
Warranty- 2 years global warranty
-
After-sales service
- Own Brand, Own Factory Production, Global Fast Shipping
- Ships within 2 business days after ordering.
- 2-year global warranty.
- 30-day return policy.
- Free shipping.
- For any usage issues after purchase, please feel free to contact us anytime.
-
Download
-
Contact Us
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
-
Online Shopping
NexCOBOT NEIO-1812 EtherCAT IO
The Pocket-Sized Wizard of Automation
Small but powerful, the NEIO-1812 is here to transform your automation game. With 16 digital inputs and 16 outputs, this compact EtherCAT I/O module is built to handle big challenges in tight spaces. Its 2.5 kV isolation keeps your operations safe, while daisy-chain connectivity makes expansion a breeze. The NEIO-1812 isn't just another module—it's your reliable partner for smarter, faster, and easier automation.
01
Why the NEIO-1812 is a Game-Changer for Automation
- Compact Power:
At palm-size, it fits into the tightest spaces without sacrificing functionality. This makes it perfect for modern, space-constrained setups. - Versatile I/O:
With 16 digital inputs and 16 digital outputs, it offers flexibility for a wide range of industrial applications, adapting seamlessly to your automation needs. - Rock-Solid Reliability:
Featuring 2.5 kV isolation, it’s built to withstand electrical noise and harsh environments, ensuring uninterrupted performance. - Plug-and-Play Expansion:
Its daisy-chain connectivity simplifies network configurations, reducing setup time and scaling effortlessly as your systems grow. - Built to Last:
Compliant with IEC 61131-2 and certified for heavy-duty industrial EMC standards, the NEIO-1812 guarantees compatibility and durability in even the toughest conditions.
02
Small Module, Big Benefits
- Save Space, Maximize Power
Its palm-sized design fits effortlessly into tight spaces while offering 16 digital inputs and 16 outputs—perfect for modern, compact setups.
- Seamless Integration
IEC 61131-2 compliance and EtherCAT certification ensure it works smoothly with your current systems, saving you time and effort.
- Rock-Solid Reliability
Built to handle industrial challenges, the 2.5 kV isolation protects against electrical noise, surges, and harsh environments, keeping your operations running without a hitch.
- Effortless Expansion
Add more modules with ease using daisy-chain connectivity. Scale your systems without disruptions or complications.
- Smarter Operations, Less Downtime
On-module LED indicators simplify troubleshooting, helping you resolve issues quickly and keep your processes moving.
03
Unlock Limitless Efficiency with NEIO 1812 Automation
The NEIO 1812 is designed to make automation easier and more powerful. It helps businesses streamline operations, cut down on errors, and reduce downtime. With its flexible design, it works seamlessly across industries like manufacturing, logistics, and data processing. The NEIO 1812 brings faster, more reliable automation, so you can focus on what really matters—growing your business and boosting productivity. Unlock the potential of smart automation with the NEIO 1812.Contact us today and unlock the full potential of your automation with the NexCOBOT NEIO-1812—where efficiency, reliability, and performance meet!
