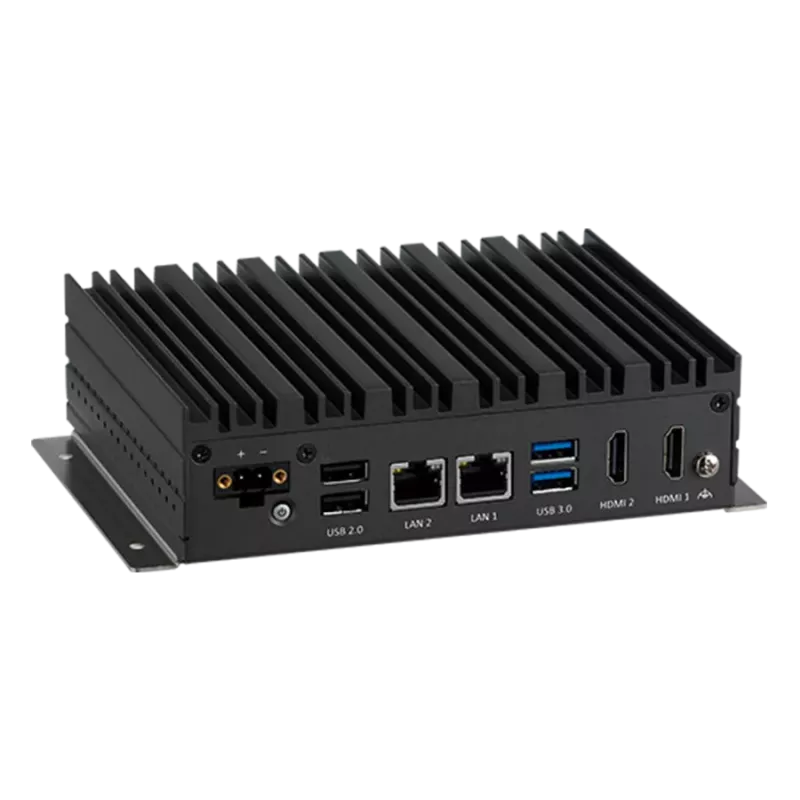

NEXCOM Fanless Embedded Computer | Neu-X101-6C-DC-AIC
Edge Computing System Powered by Intel® Celeron®
Merchandise number：10W10X10111X0
Description：
- Miniature IoT gateway powered by Intel® Celeron® J3455
- Comprehensive serial interface for seamless integration with industrial devices
- Dual 4K display output for data visualization and monitoring
- Wide voltage input for reliable operation in diverse environments
- Designed for IoT edge computing to connect the physical and digital worlds
- Highlight the benefits of a palm-sized design:
portability, easy installation, and space-saving. - Emphasize the versatility of the serial ports:
suitable for a wide range of applications, including automation, control systems, and data acquisition. - Mention the energy efficiency of the processor:
reducing operating costs and environmental impact. - Use strong visuals:
high-quality images and diagrams can help potential customers understand the product's features and benefits.
Download file
-
CPU Support
- Onboard Intel® Celeron® processor J3455, up to 2.30GHz
Main Memory- 1 x 8GB DDR3L 1600 Industrial SO-DIMM
Display Option- 2 x HDMI 1.4b, resolution 3840 x 2160 30Hz
Front I/O Interface Status LEDs- 1 x Storage active LED
I/O Interface-Front- 6 x COM ports
- COM1: RS232/422/485
- COM2: RS232
- COM3-6: RS485

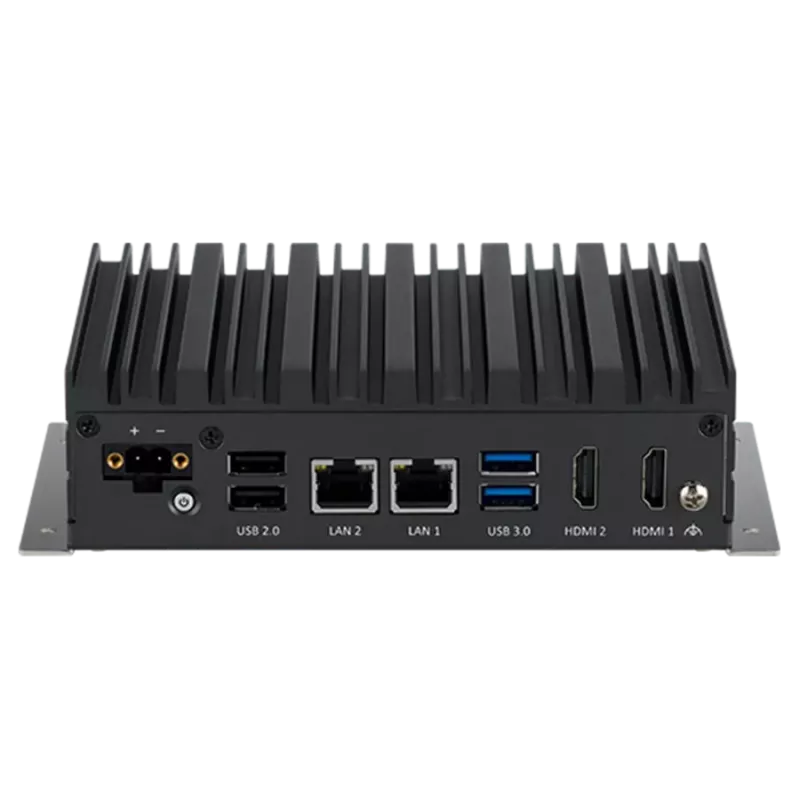

I/O Interface-Rear- 2 x RJ45 with LEDs for Gigabit LAN
- 2 x HDMI 1.4b, resolution 3840 x 2160 30Hz
- 2 x USB 3.0
- 2 x USB 2.0
- 1 x Power button with LED
- 1 x 2-pin phoenix contact 9-24V DC-input
Storage Device- 128GB M.2 2242 SATA SSD Key B
Expansion Slot- N/A
Power Requirement- Power input: 9~24V DC
Dimensions- 155mm (W) x 121mm (D) x 44mm (H)
Construction- Aluminum and metal chassis with fanless design
Environment- Operating temperature: -5°C to 50°C
- Storage temperature: -20°C to 80°C
- Relative Humidity: 10% to 95% (non-condensing)
Certification- CE (EN55035 + EN55032)
- FCC Class A (EMI part 15B)
- LVD (EN62368-1)
- UKCA
OS Support Lists- Win10
- Linux
Weight Information- 1kg
-
- Own Brand, Own Factory Production, Global Fast Shipping
- Ships within 2 business days after ordering.
- 2-year global warranty.
- 30-day return policy.
- Free shipping.
- For any usage issues after purchase, please feel free to contact us anytime.
- NEXCOM Neu-X101-6C-DC-AIC-Datasheet
-
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
-
Access NEXCOM Industrial Solutions on Our Official Online Channels:
-
SpecificationsCPU Support
- Onboard Intel® Celeron® processor J3455, up to 2.30GHz
Main Memory- 1 x 8GB DDR3L 1600 Industrial SO-DIMM
Display Option- 2 x HDMI 1.4b, resolution 3840 x 2160 30Hz
Front I/O Interface Status LEDs- 1 x Storage active LED
I/O Interface-Front- 6 x COM ports
- COM1: RS232/422/485
- COM2: RS232
- COM3-6: RS485
I/O Interface-Rear- 2 x RJ45 with LEDs for Gigabit LAN
- 2 x HDMI 1.4b, resolution 3840 x 2160 30Hz
- 2 x USB 3.0
- 2 x USB 2.0
- 1 x Power button with LED
- 1 x 2-pin phoenix contact 9-24V DC-input
Storage Device- 128GB M.2 2242 SATA SSD Key B
Expansion Slot- N/A
Power Requirement- Power input: 9~24V DC
Dimensions- 155mm (W) x 121mm (D) x 44mm (H)
Construction- Aluminum and metal chassis with fanless design
Environment- Operating temperature: -5°C to 50°C
- Storage temperature: -20°C to 80°C
- Relative Humidity: 10% to 95% (non-condensing)
Certification- CE (EN55035 + EN55032)
- FCC Class A (EMI part 15B)
- LVD (EN62368-1)
- UKCA
OS Support Lists- Win10
- Linux
Weight Information- 1kg
-
After-sales service
- Own Brand, Own Factory Production, Global Fast Shipping
- Ships within 2 business days after ordering.
- 2-year global warranty.
- 30-day return policy.
- Free shipping.
- For any usage issues after purchase, please feel free to contact us anytime.
-
Download
-
Contact Us
- NEXCOM AIoT Mart Customer Service Email: ecommerce@nexcom.com.tw
-
Online ShoppingAccess NEXCOM Industrial Solutions on Our Official Online Channels:
NEXCOM Neu-X101-6C-DC-AIC Industrial PC
Revolutionize Your Operations with the NEXCOM Neu-X101-6C-DC
In the past, global issues such as inefficient energy usage, poor resource allocation, and limited productivity were prevalent across various industries, including small scale industries, hospitals, and factories. These problems were caused by the inability to collect real-time data and monitor critical environmental factors such as temperature and humidity remotely. As a result, it was challenging to identify areas that required improvement, leading to wastage of resources and inefficient operations. Moreover, inaccurate or incomplete data collection made it difficult to make informed decisions, further exacerbating these issues.
01
Key Features and Benefits
- Unleash the Power of Edge Computing:
- Streamline Data Collection: Efficiently gather critical data from diverse sources.
- Enable Real-time Monitoring: Gain instant insights into your operations.
- Optimize Resource Utilization: Make informed decisions to maximize efficiency.
- Enhance Productivity: Drive operational excellence and boost output. - Compact and Versatile Design:
- Palm-Sized Powerhouse: Ideal for space-constrained environments.
- Fanless Operation: Ensure reliable performance in demanding conditions.
- Flexible Power Options: Adapt to various power supply configurations.
- Wide Operating Temperature Range: Operate seamlessly in diverse environments. - Robust Connectivity and Performance:
- Intel® Celeron® Processor: Delivering powerful processing capabilities.
- Multiple Serial Ports: Connect to a wide range of devices and sensors.
- Dual 4K Display Output: Visualize data with stunning clarity.
- High-Speed Networking: Ensure fast and reliable data transmission.
02
Ideal Applications
- Industrial Automation:
Optimize production processes and reduce downtime. - Smart Buildings:
Monitor energy consumption and enhance building efficiency. - Retail:
Improve inventory management and customer experience. - Healthcare:
Enable remote patient monitoring and improve healthcare delivery. - Transportation:
Optimize logistics and fleet management.
03
Industrial Software Free Download
